SMAC CBC-EIP User Manual

25
3.6 SMAC Fault Status
This AOI is used to indicate the fault status of the CBC-EIP drive.

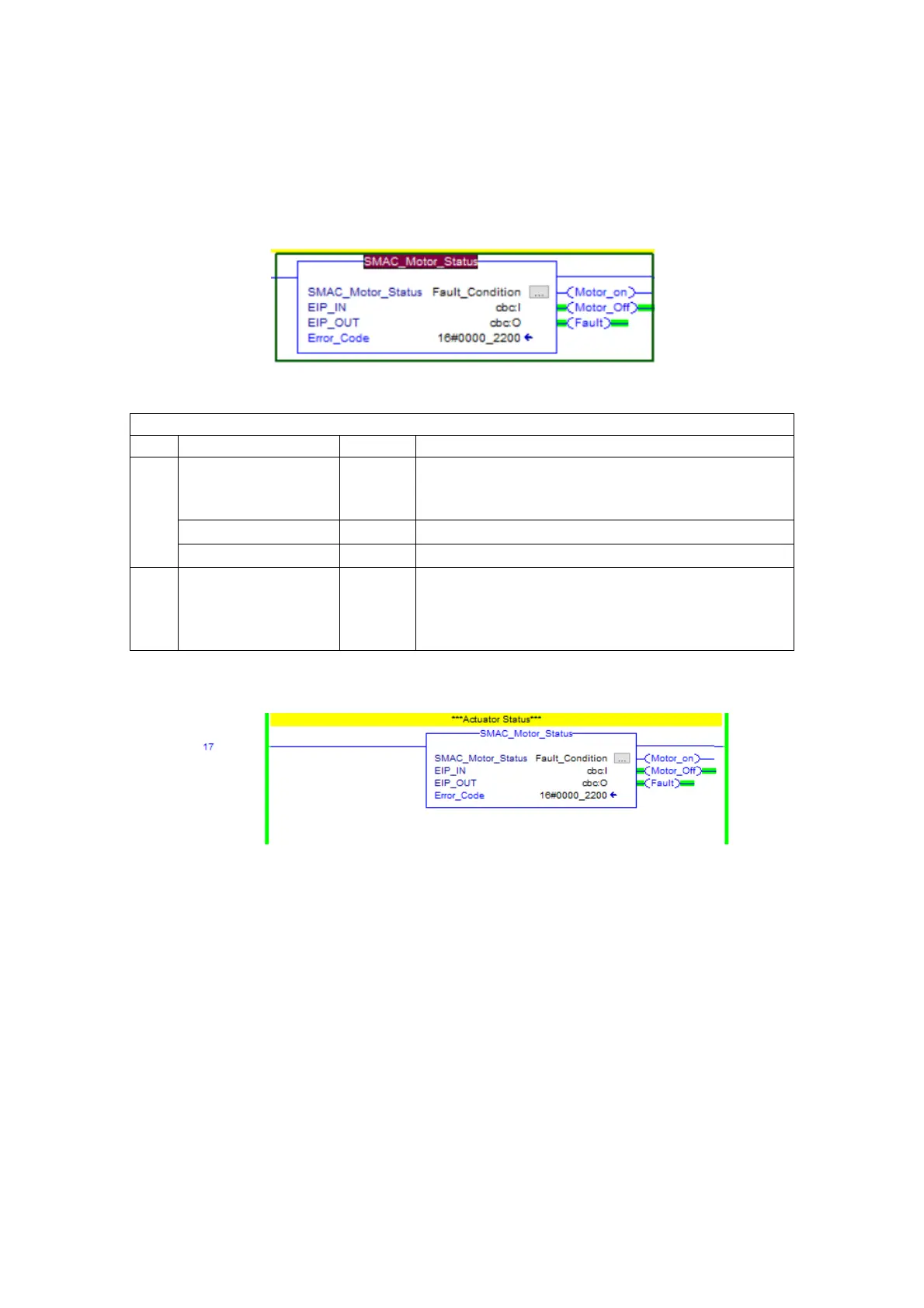

SMAC Controller Status AOI
Parameter
Unit
Description
INPUIT
Fault
N/A
This bit is active when the actuator status is faulted
(Note: programmatically or user defined fault
conditions cannot be seen from this bit)
Motor off
N/A
This bit indicates that the actuator is off
Motor on
N/A
This bit indicates that the actuator is on
OUTPUT
Error Code
N/A
This bit indicates the Error code of the controller in
hexadecimal. For a complete description refer to
EMCL library manual.
Ladder logic example:
3.6.1 Performing fault reset
Faults in the CBC-EIP can be reset only by manipulating the control word, which is accessible through
explicit messaging. In the PLC, this can be done through the message instruction “MSG” available in
RSLogix5000/Studio5000 software. Follow the below procedure and also refer to Section 2.2.3
Explicit messaging section.
a. Enter all the given parameters such as (1) service code, (2) class, (3) instance, (4) attribute
and (5) set attribute to single
