SMAC CBC-EIP - Setup, Configuration, and Communication; Hardware Interfaces and Connections

7
Setup guide
2.1 Hardware
2.1.1 Power/signal/communication connectors
Figure 3 shows the connectors and status LED indication of the CBC-EIP. Further details about
these connectors are presented in Table 2.

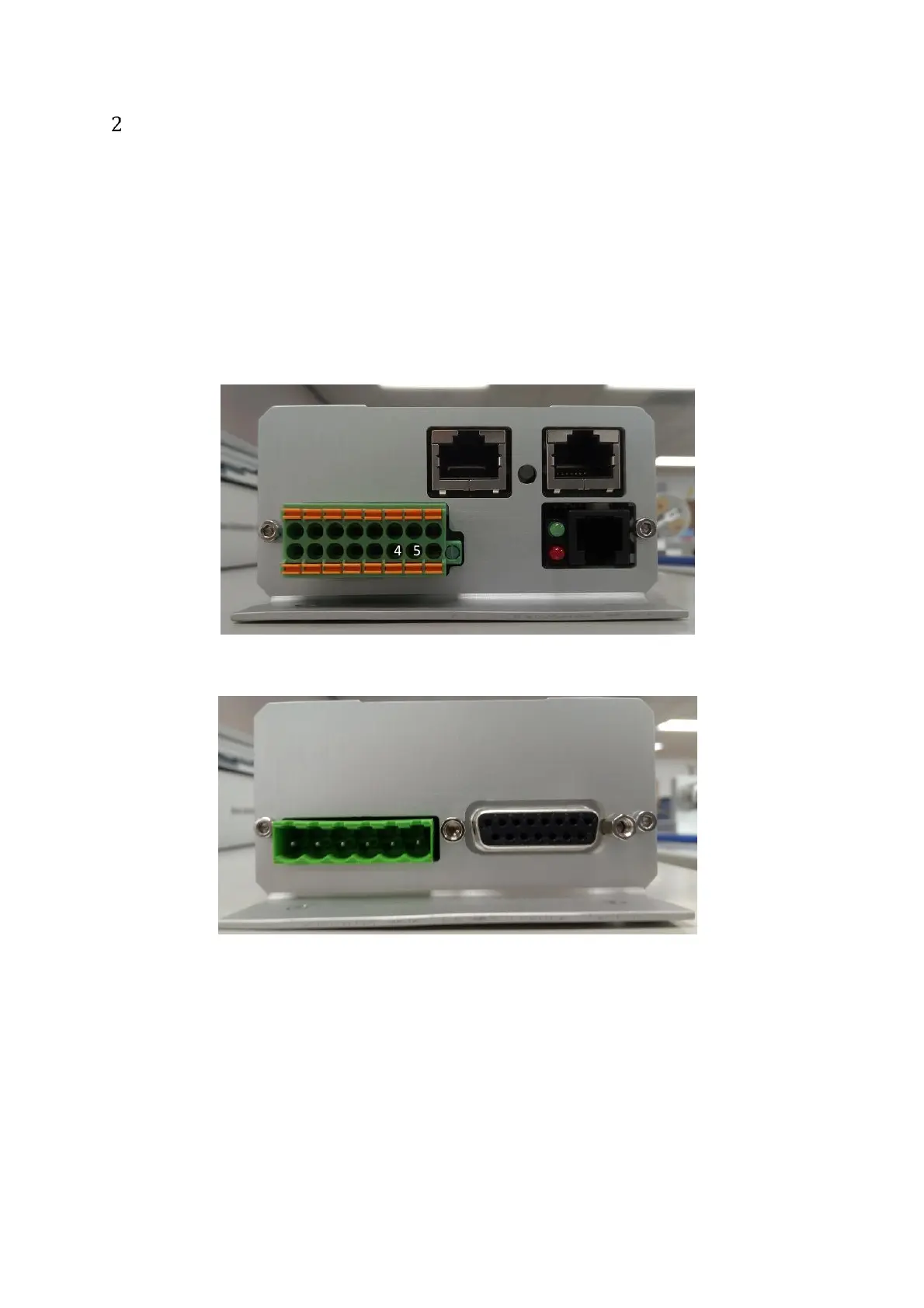

Figure 3. Connectors and status LED indication on the CBC-EIP.
ETH 2
ETH 1
POWER
FAULT
RS232
I/O AND STO
POWER
ENCODER
GND
V+
U
V
W
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
