TP301 – Operation, Maintenance and Instructions Manual
1.10
Remote Position Sensor
The remote magnetic position sensor, based on hall effect, is recommended for high temperature or
extreme vibration applications. It prevents excessive wear of the equipment and, consequently,
increasing the transmitter lifetime

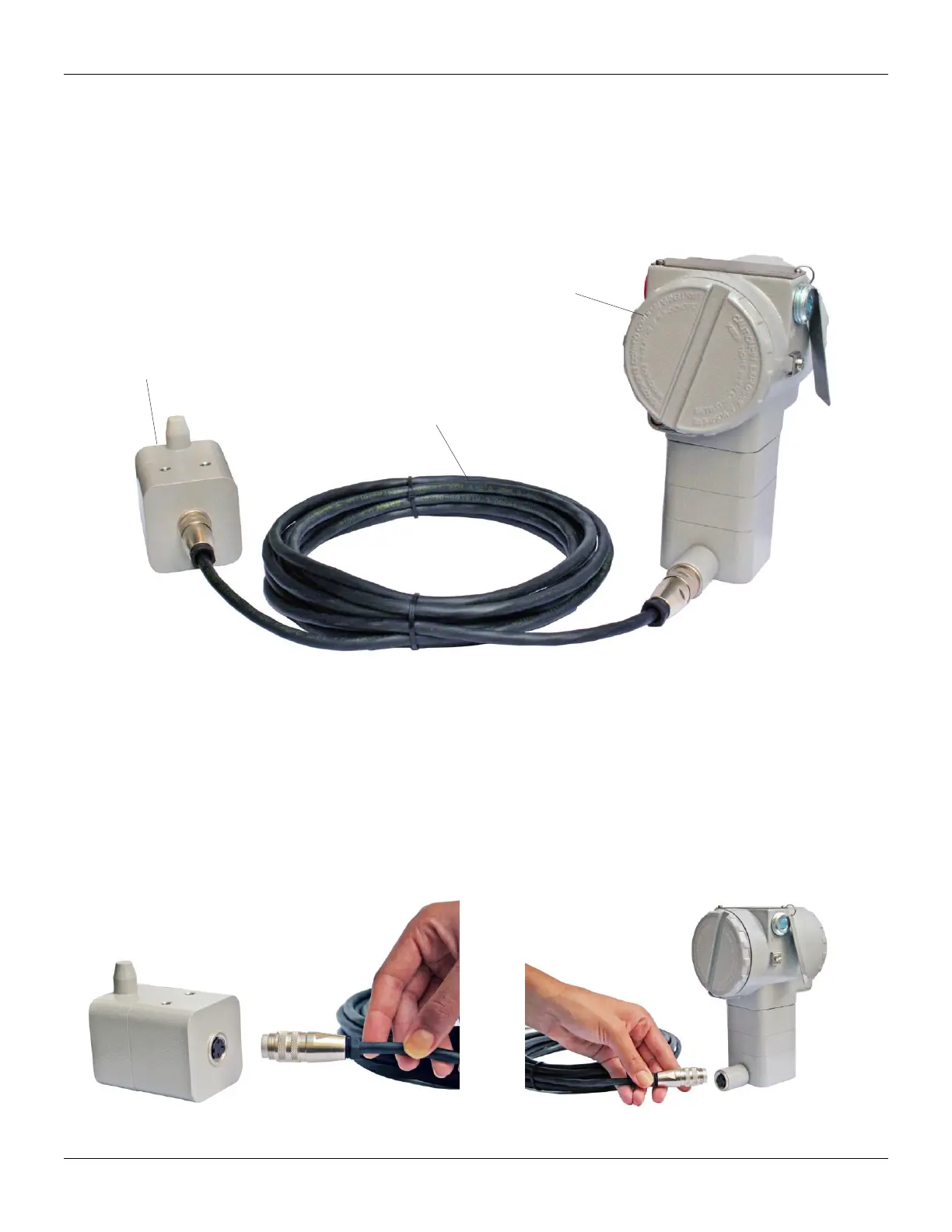

Figure 1.13 - Remote Position Sensor
The electric signals on the remote sensor’s cable and connections are of low intensity. Therefore,
when installing the cable inside the conduit (maximum limit 20 (meters) length), keep it away from
possible sources of induction and/or magnetic interference. The cable supplied by Smar is shielded
with excellent protection against electromagnetic interference, but despite of this protection, it is
recommended to avoid the cable sharing the same conduit with other cables.
The connector for Remote Position Sensor is easy to handle and simple to install.
See the installation procedure:
