Installation
1.9

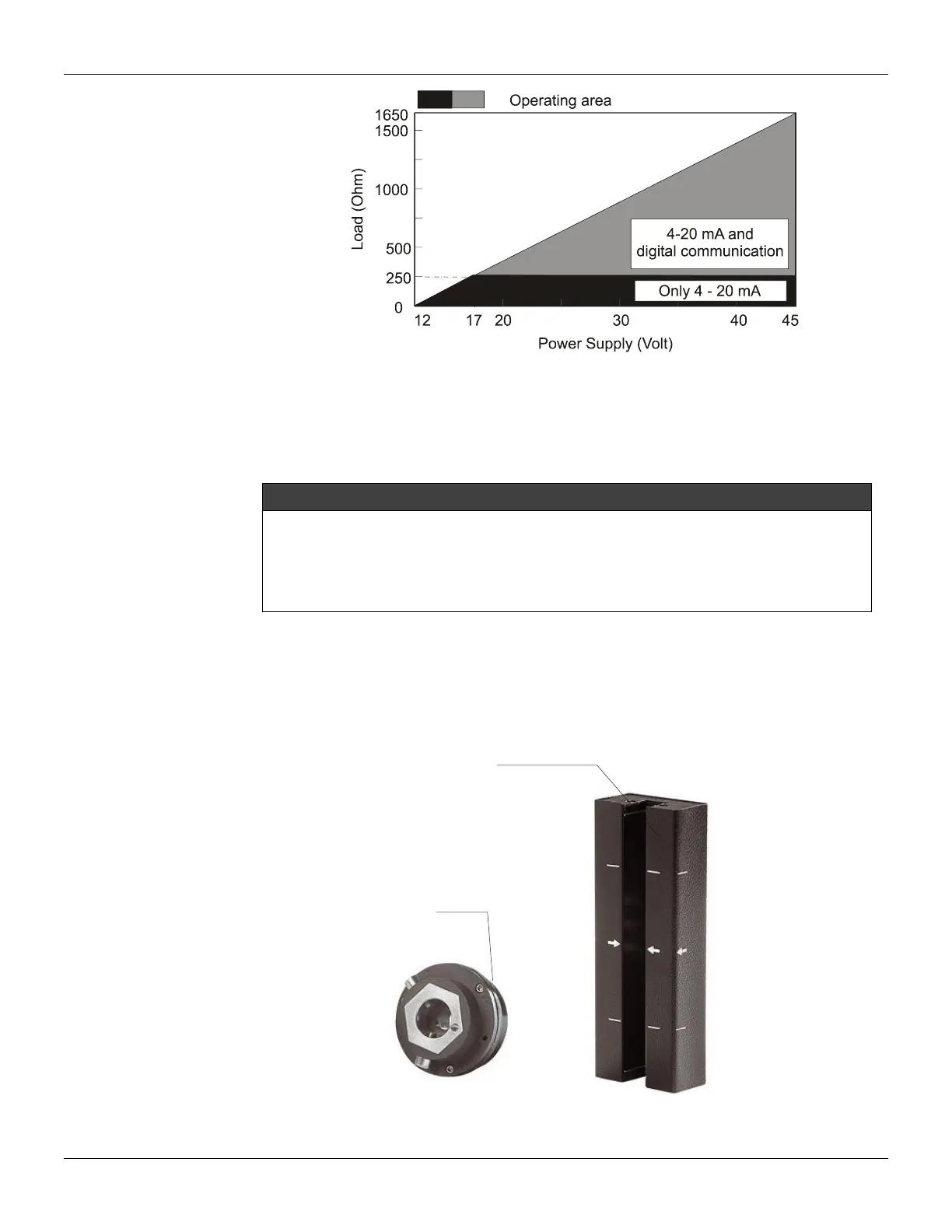

Figure 1.11 - Load Curve
Recommendations for mounting Approved Equipment with the IP66/68 W
certifications (“W" indicates certification for use in saline atmospheres)
This TP301 certification is valid for stainless steel transmitter manufactured, approved with the certification
IP66/68 W. All transmitter external material, such as plugs, connections etc., should be made in stainless
steel.
The electrical connection with 1/2” – 14NPT thread must use a sealant. A non-hardening silicone sealant is
recommended.
The instrument modification or replacement parts supplied by other than authorized representative of Smar
is prohibited and will void the certification.
Rotary and Linear Magnet
The Figure 1.12 shows typical shapes for both magnets. For better transmitter performance, the
linear magnet is presented with different lengths. Consult the ordering code table for the best
choice.
