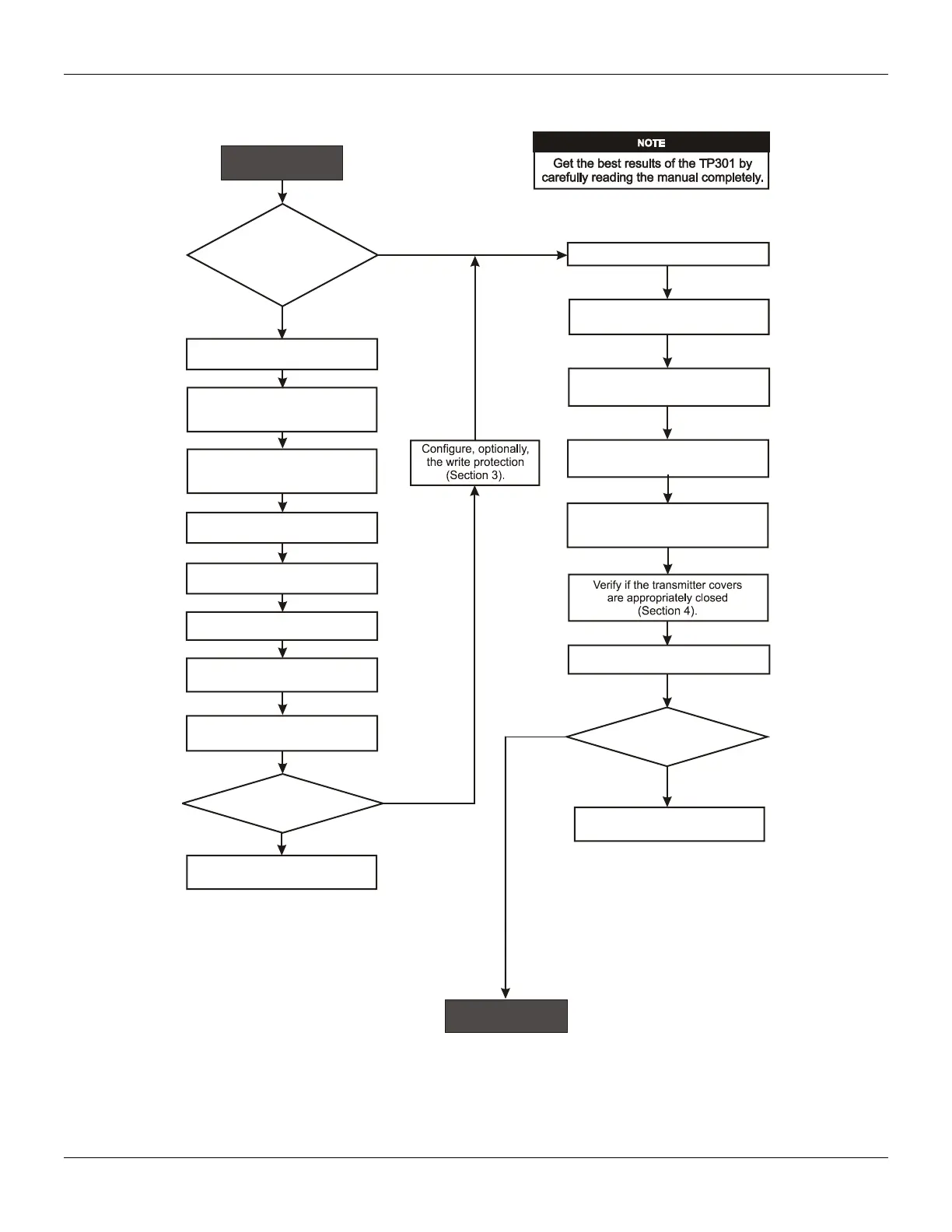

Has the transmitter
been configured
on the bench for the
application ?
Configure the transmitter
( section 1 and section 3).
Start
Field Installation.
Install the transmitter according to
the application.
Verify the most appropriate
position for local indicator.
Verify the area classification and
its related practices (Section 1).
NO
YES
Configure the Fail Safe value
(Section 4).
Configure the Damping (Section 3).
Configure the indication in
local indicator (Section 3).
Configure the user_unit in case of
specific measurements (Section 3).
Is the measurement
OK ?
NO
YES
Power on the transmitter.
Is
?
the
measuring ok
OK
NO
YES
Consult the manual
Section 4 - Maintenance.
Consult the manual
Section 4 - Maintenance.
Move the system to the upper
position, execute the upper
position trim for 100% (20 mA).
Fix the transmitter magnet
in a position that allows to the
sensor to travel all magnet range.
Move the system to the lower
position, execute the lower
position trim for 0% (4 mA).
Configure action Direct or Reverse
(Section 3).
To Next Page
