SMART S10 User Manual

Angle Calculation
smartmeter S10 67
Use the last column to write down the frequencies of your
receiving installation. So all relevant
Information is on one
place.
Rule of thumb: highest frequency > shortest cable run
21 Angle Calculation

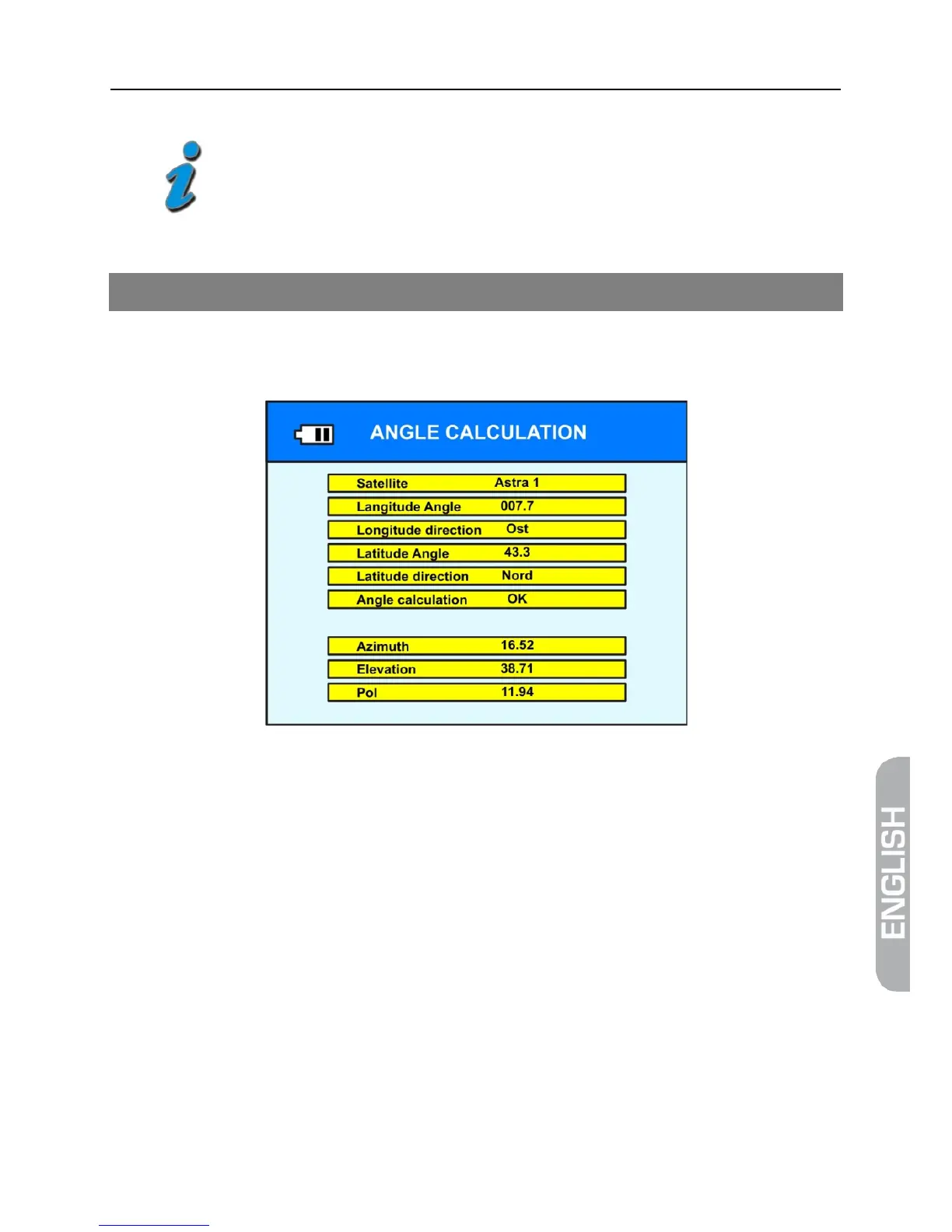

 Drücken Sie die Taste ANGLE.
Der Bildschirm zur Winkelberechnung öffnet sich.
 Set the name of the satellite you’d like to receive.
 Enter the longitude and latitude and the respective direction of your
position.
 Mark the item Angle calculation and press OK..
In the three fields at the bottom the correct allignment of the satellite dish is
shown:
Azimuth Shows the azimuth of the satellite
Elevation Shows the elevation of the satellite
Pol Shows the angle of polarisation of the satellite
