Chapter 3 Transport and Setting Up
HRS-R Series 3.3 Installation
3-15

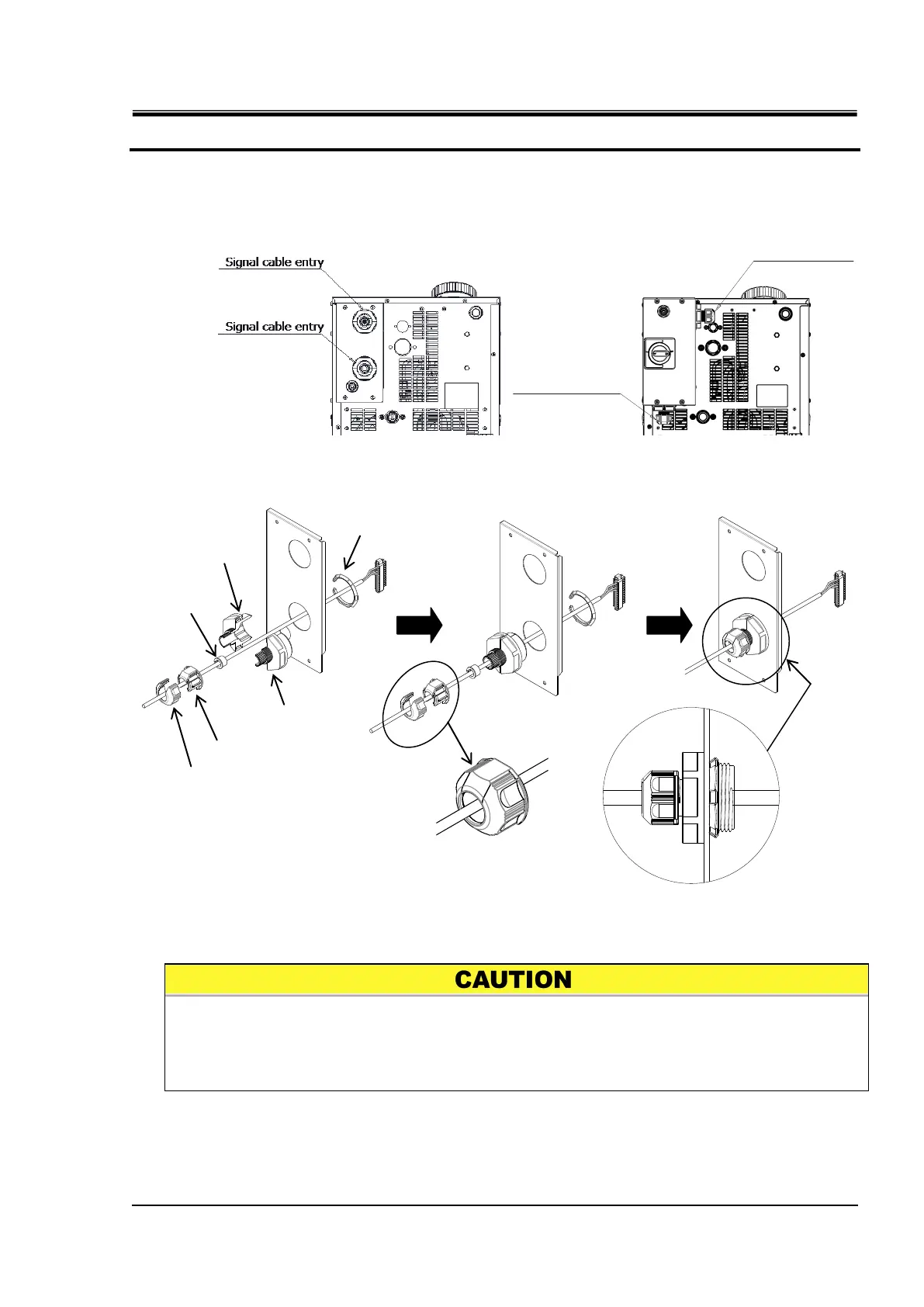

3. Inset the signal cable through the hole and fit the nipple A, nipple B and lock nut. Then
fit the cap A, cap B and rubber bushing.
Recommended cable diameter: 6 to 13 mm
Fig. 3-9 Mounting to the cable gland
Fit the nipple A and nipple B closely until it clicks. Otherwise the lock nut may not
rotate smoothly.
Rotate the lock nut with holding the combined nipple to prevent the O-ring mounted
on the nipple from twist and from unreliable seal.
Signal cable entry
Signal cable entry
For option B
Cap A
Cap B
Rubber bush
Nipple A
Nipple B
Lock nut
