No.IP8S-OM00009
63
(b00) Analog output setting
(C00) Calibration
<(C10) Check angle of
feedback lever
*22
>
<(C20) Simple balance current
adjustment
*23
>
<(C30) Calibration
*24
>
Possible to check the feedback lever angle, balance current
adjustment, zero/span adjustment, input current adjustment,
parameter initialize.
The angle of the feedback lever unit connected to the valve stem is
checked.
22: For adjustment procedure, see “(2) Check the angle of the feedback
lever” of “■Initial Adjustment”.
Adjust the balance current of the torque motor.
23: For adjustment procedure, see “(3)Simple balance current
adjustment” of “■Initial Adjustment”.
Adjust zero-span and PID constant automatically.
24: For adjustment procedure, see “4.Calibration” of “ ■ Initial
Adjustment”.

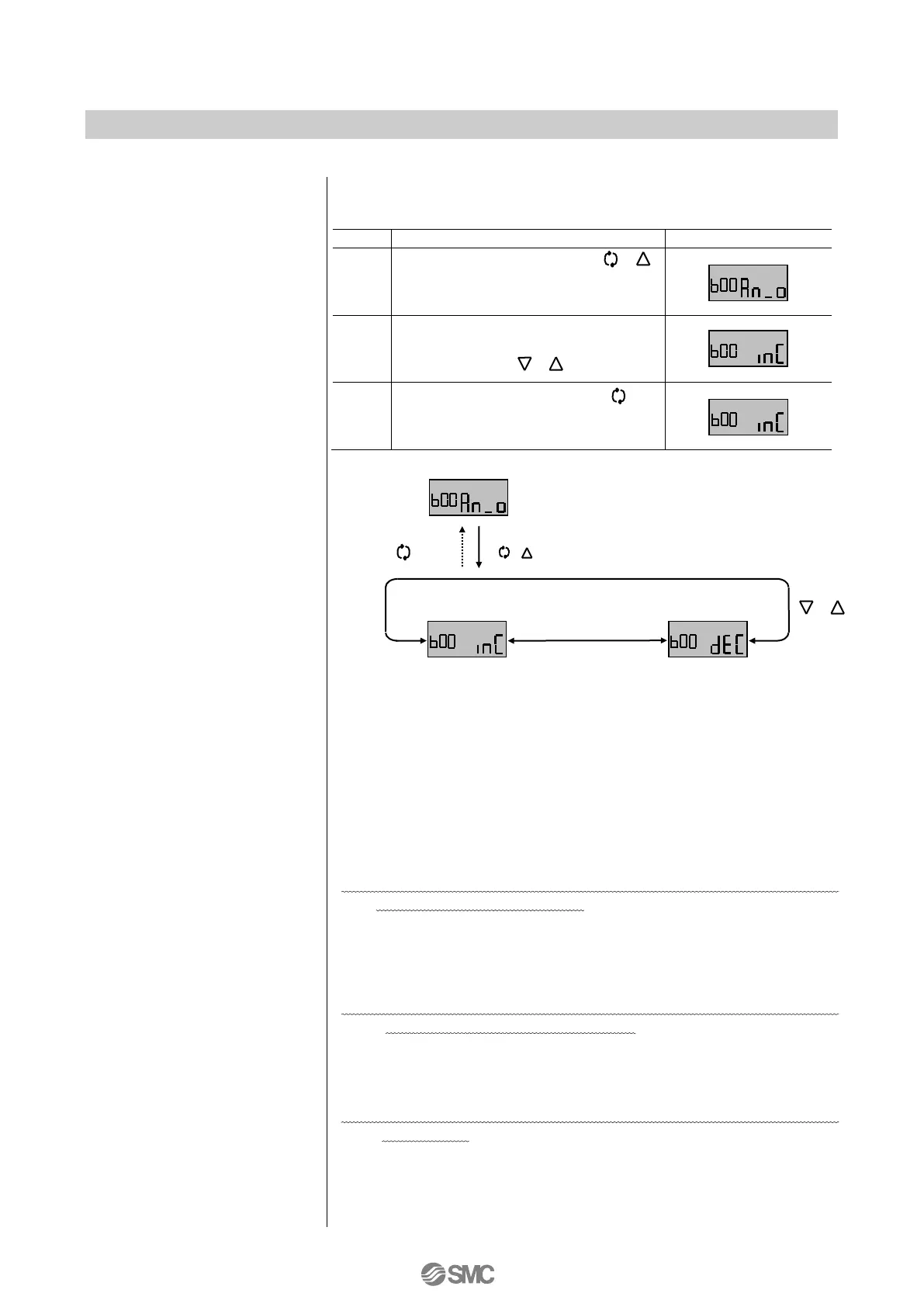

Possible to select analog output proportional output (inC) and
reversed output (dEC).
Procedure
LCD display
1
Hold down the set button ( )
for 1sec. or longer to start
parameter change mode.
2
Select proportional output (inC) or
reversed output (dEC) by UP or
DOWN button（ ）.
3
Hold down the mode button ( ) for
1sec. or longer to set output mode.
＋
or
Proportional output
Reversed output
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
or
Fig. 44
