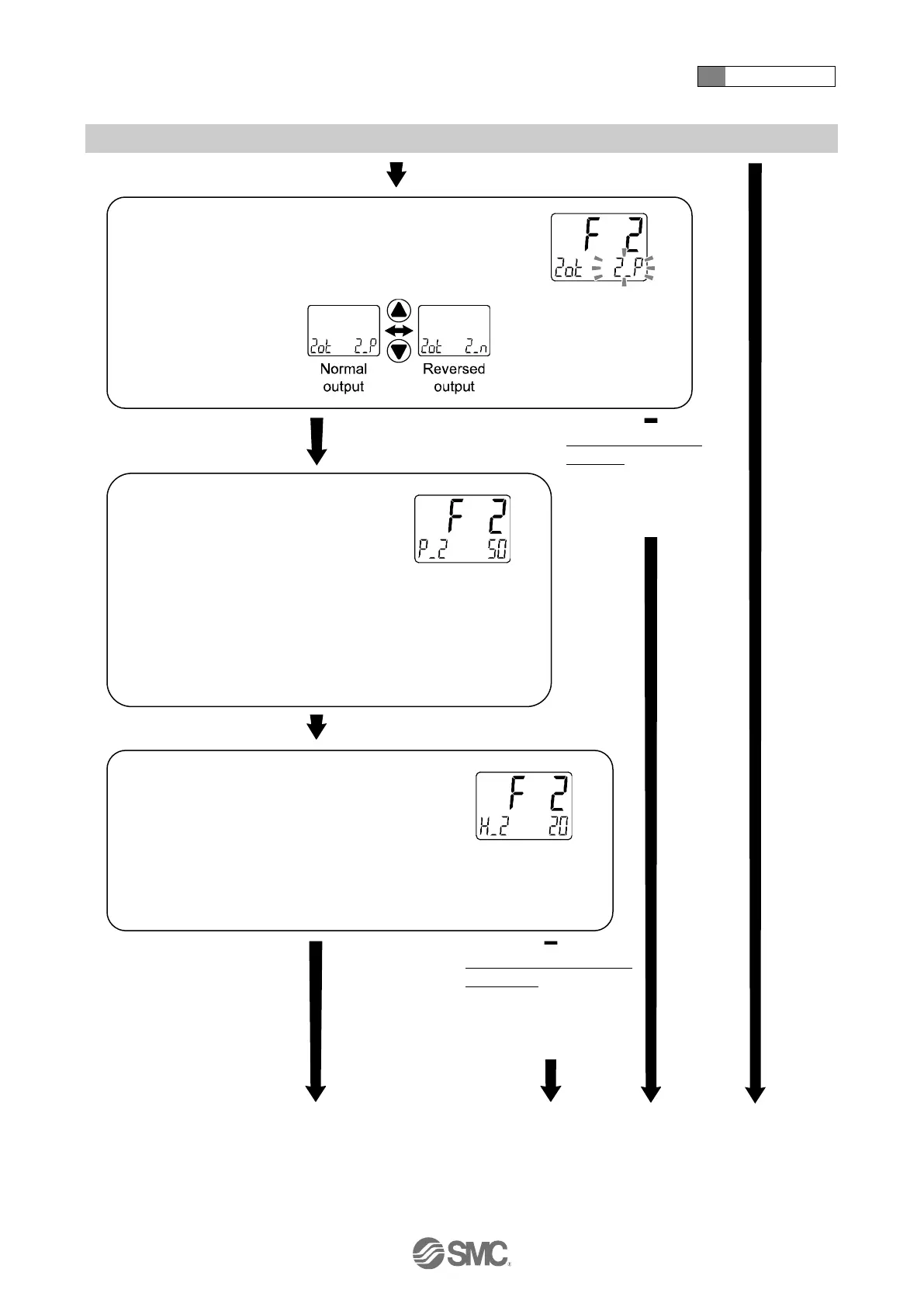

Reversed output setting
Press the UP or DOWN button to select the reversed
output.
Press the SET button to set.
Switch point (distance/pressure)
setting
Set the switch point based on the
setting method on page 48.
Hysteresis mode: [P_2][EP_2][SP_2]
Window comparator mode: [P2L][P2H][EP2L]
[EP2H][SP2L][SP2H]
"P" is changed to "n" as [P_2] [n_2] when reversed
output is selected.
The snap shot function can be used. (Refer to page 86)
Press the SET button to set. Move on to hysteresis setting.
Hysteresis setting
Set the pressure referring to the setting
method on page 48.
Hysteresis mode: [H_2][EH_2][SH_2]
Window comparator mode: [WH2][EH2][SH2]
The snap shot function can be used. (Refer to page 86)
Press the SET button to set.
Move on to delay
time setting.
Move on to switch point
(distance/pressure) setting.
[Err] Error output is
selected
Press the SET button to
move on to display
colour setting.
[diSt] Distance detection
is selected
Press the SET button to
move on to display
colour setting.
