Mounting and Installation

■Installation

○Mounting by bracket

∗: The tightening torque of piping port must be 7 to 9 Nm.

The tightening torque of the mounting screw for the bracket must be 0.5 to 0.7Nm.

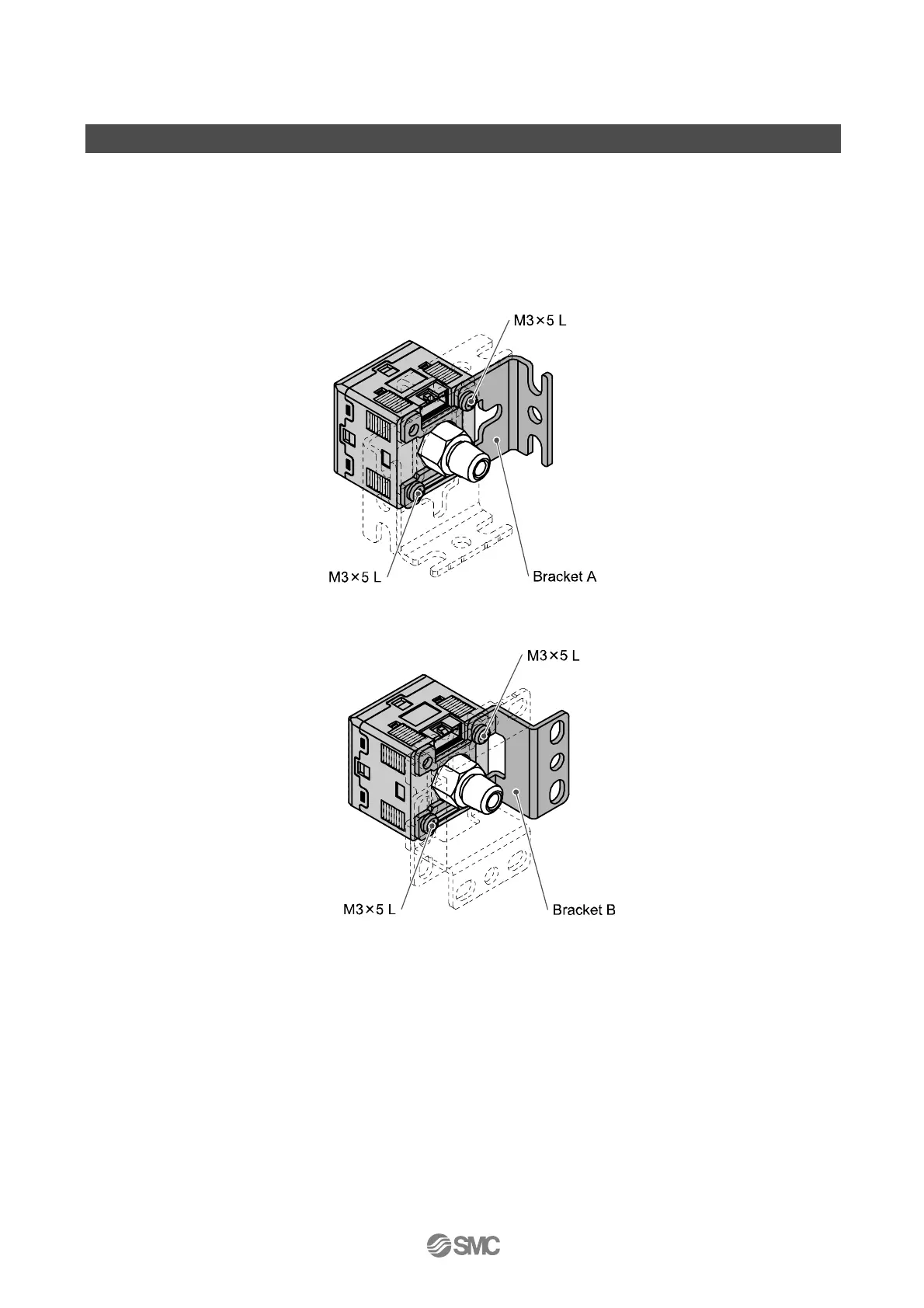

•Mount the bracket on the Pressure switch with the set screws M3 × 5 L (2 pcs.) and install on a machine.

•Bracket A (Model: ZS-38-A1)

•Bracket B (Model: ZS-38-A2)
