■[F 0] Unit conversion function
This function is available for unit selectable type.
The unit that can be displayed is different depending on the pressure range.
(Display in kPa/MPa is available even if unit conversion function is not equipped.)
<Operation>

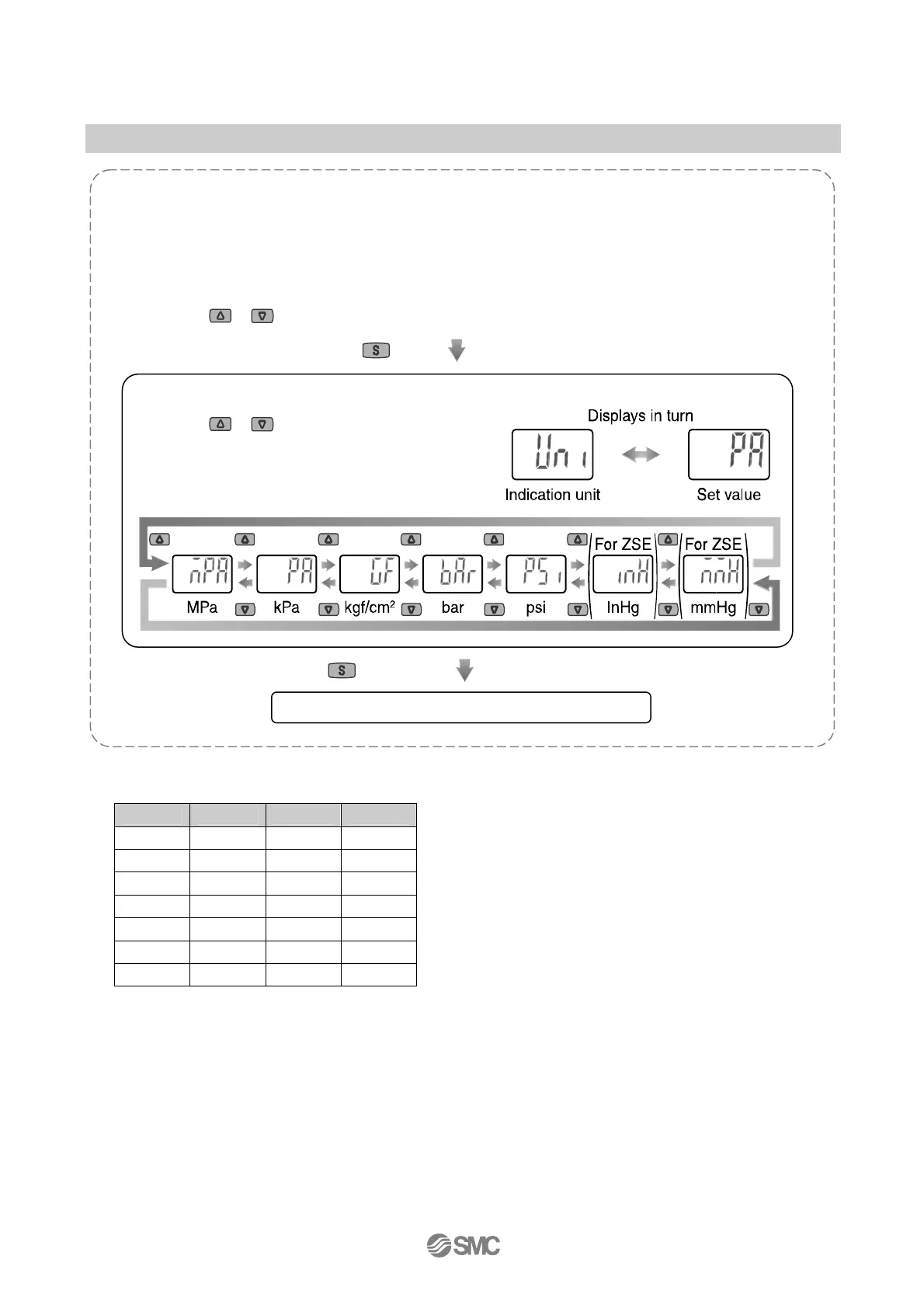

Press the
or button in function selection mode to display [F 0].
Press the button. Move on to select indication unit.
Press the
button to set. Return to function selection mode.
Setting of [F 0] unit conversion function completed
•Indication unit and minimum. setting unit
Unit ZSE30AF ZSE30A ISE30A
MPa 0.001 0.001 0.001
kPa 0.1 0.1 1
kgf/cm
2
0.001 0.001 0.01
bar 0.001 0.001 0.01
psi 0.01 0.01 0.1
InHg 0.1 0.1 -
mmHg 1 1 -
Select Indication Unit
Press the
or
button to select the indication
unit.
