Pressure Setting
■Measurement mode

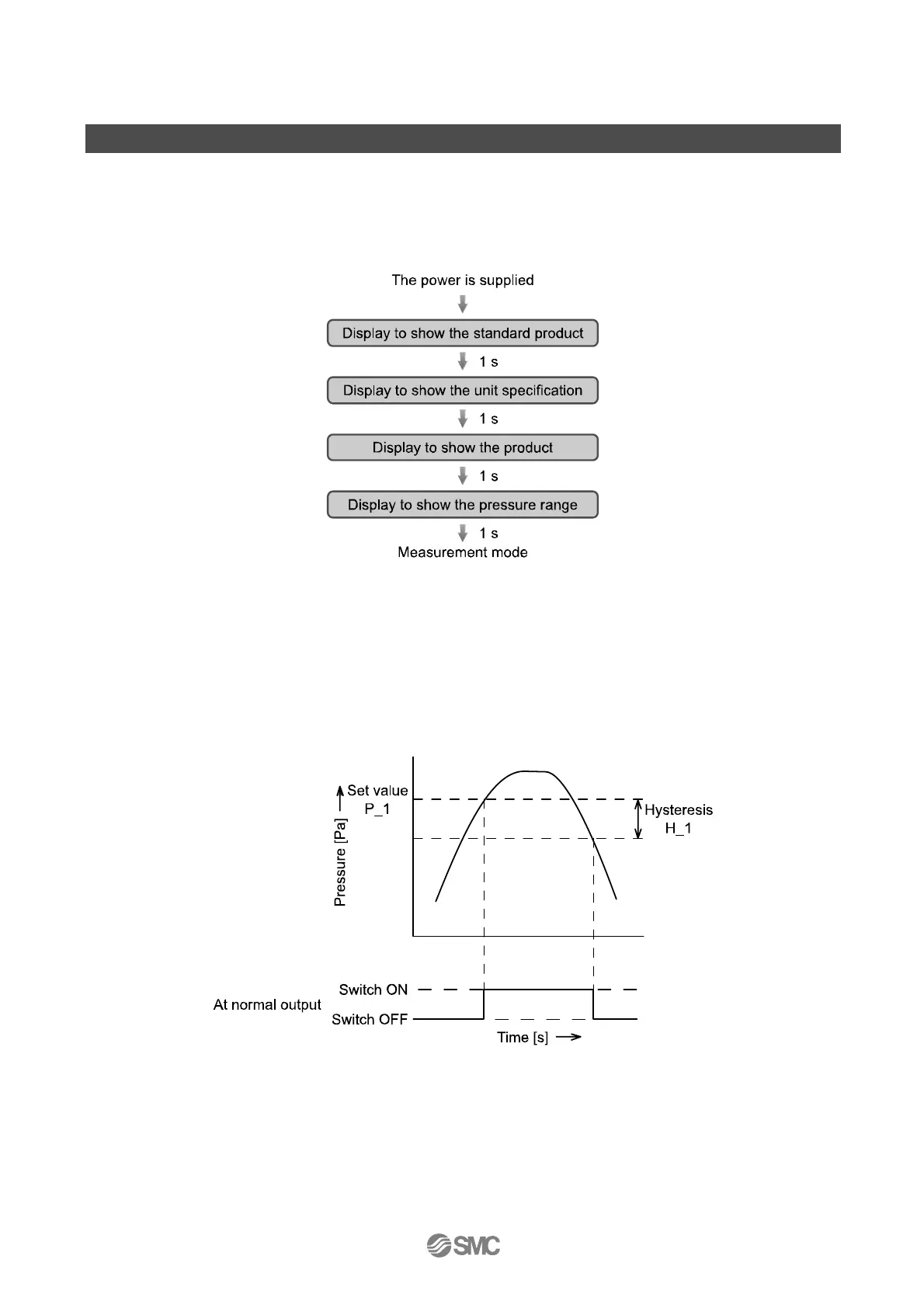

The measurement mode is the condition where the pressure is detected and indicated, and the switch
function is operating.
This is the basic mode, and other modes should be selected for setting change and other function setting
changes.
Set ON and OFF point of the Pressure switch.
Operation
When a pressure exceeds a set point, the Pressure switch will be turned ON.
When the pressure falls below the set point by the amount hysteresis or more, the Pressure switch will be
turned OFF.
The default setting of output set value is a center value of between atmospheric pressure and upper limit of
the rated pressure range.
If the operation shown below does not cause any problem, keep the operation setting.
