SMC Networks ZSE30A(F) User Manual

-20-
No.PS##-OML0003-B
-C

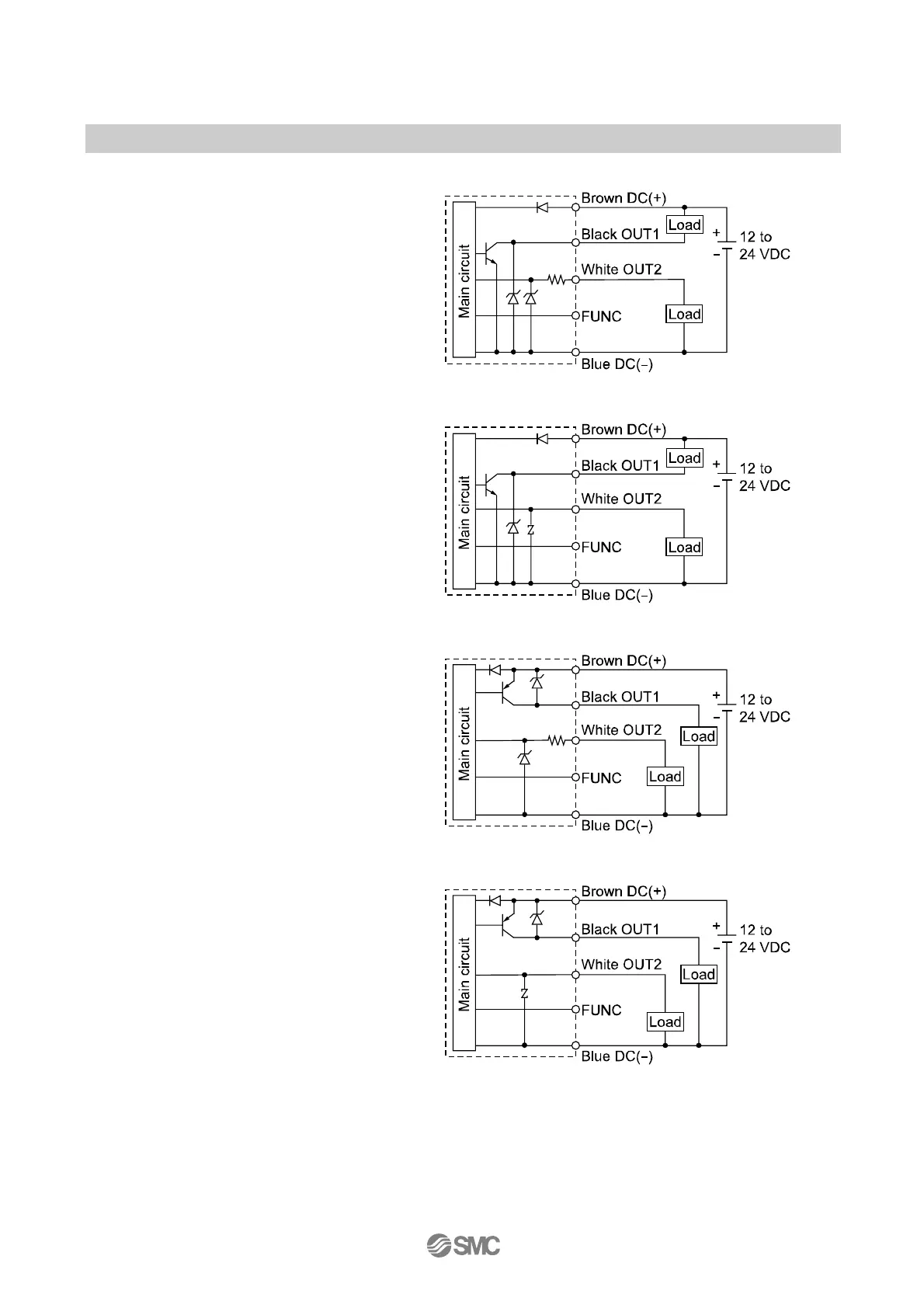

NPN open collector 1 output
Max. 28 V, 80 mA
Residual voltage 1 V or less
Analog voltage output
Output impedance approx. 1 kΩ
-D
NPN open collector 1 output
Max. 28 V, 80 mA
Residual voltage 1 V or less
Analog current output
Max. load impedance
300 Ω at 12 V power supply voltage
600 Ω at 24 V power supply voltage
Min. load impedance 50 Ω
-E
PNP open collector 1 output
Max. 80 mA
Residual voltage 1 V or less
Analog voltage output
Output impedance approx. 1 kΩ
-F
PNP open collector 1 output
Max. 80 mA
Residual voltage 1 V or less
Analog current output
Max. load impedance
300 Ω at 12 V power supply voltage
600 Ω at 24 V power supply voltage
Min. load impedance 50 Ω
