No.PS##-OML0003-B

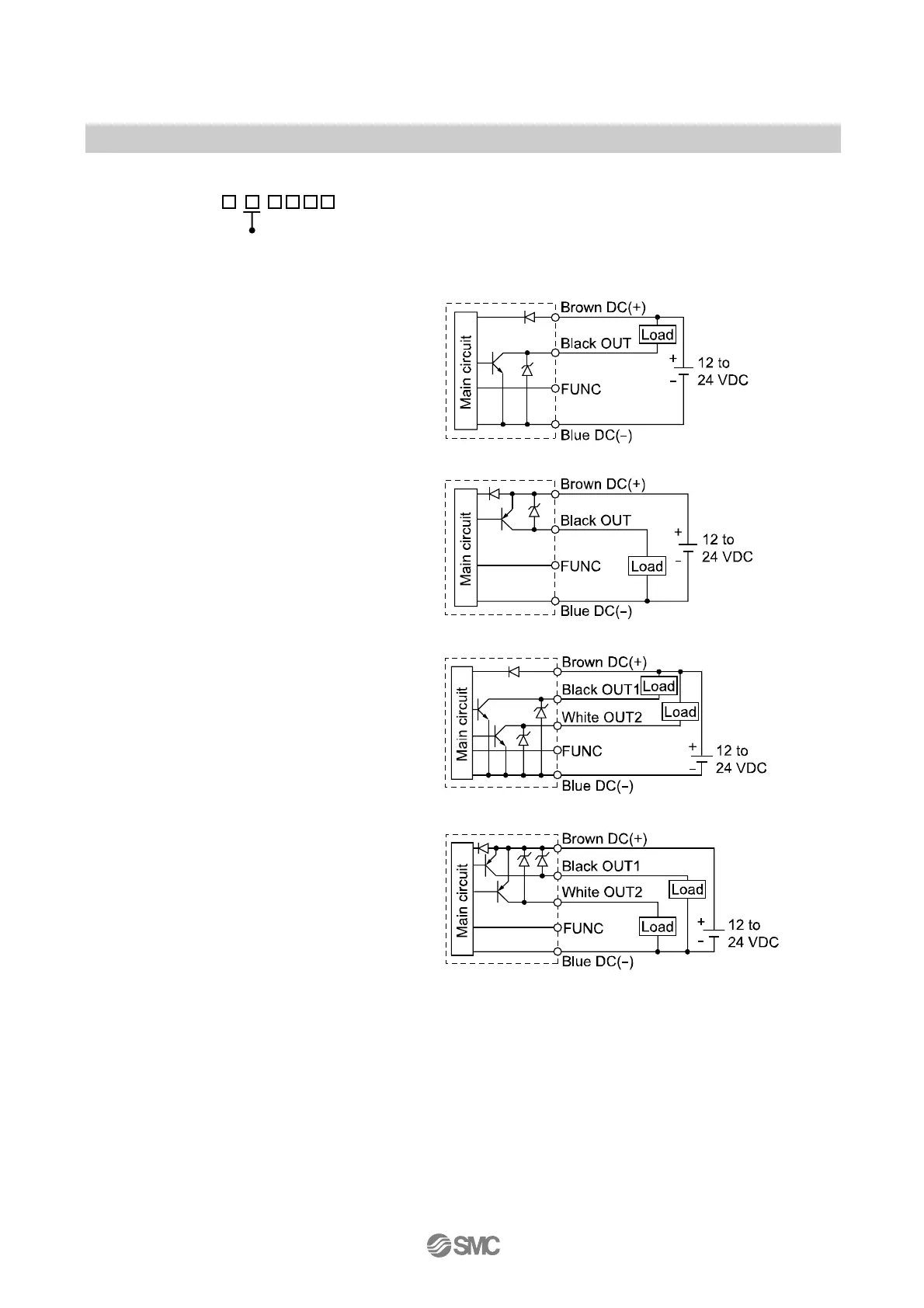

○Internal circuit and wiring example

Z/ISE30A(F)- - -

Output specification

-N

NPN open collector 1 output

Max. 28 V, 80 mA

Residual voltage 1 V or less

-P

PNP open collector 1 output

Max. 80 mA

Residual voltage 1 V or less

-A

NPN open collector 2 outputs

Max. 28 V, 80 mA

Residual voltage 1 V or less

-B

PNP open collector 2 outputs

Max. 80 mA

Residual voltage 1 V or less
