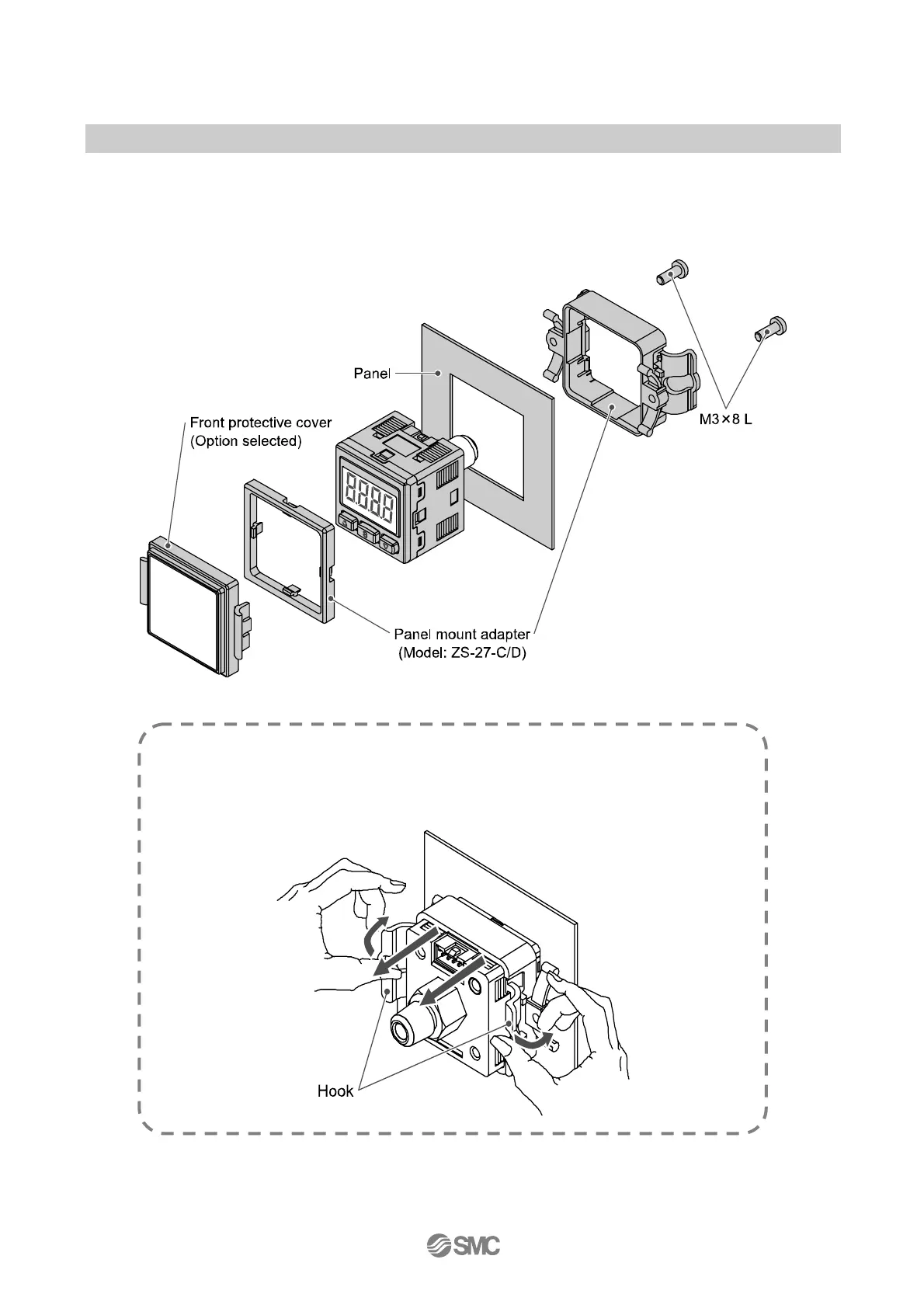

○Mounting by panel mount adapter
•Fix the panel mount adapter to the Pressure switch with the set screws M3 × 8 L (2 pcs.) as attached.
•Panel mount adapter (Model: ZS-27-C)
Panel mount adapter + Front protective cover (Model: ZS-27-D)
∗: The panel mount adapter can be rotated by 90 degrees for mounting.
Notice when removing the switch
•The Pressure switch with the panel mount adapter can be removed from facility
by widening the hook of the switch as following after removing two screws.
The Pressure switch and panel mount adapter may be damaged.
