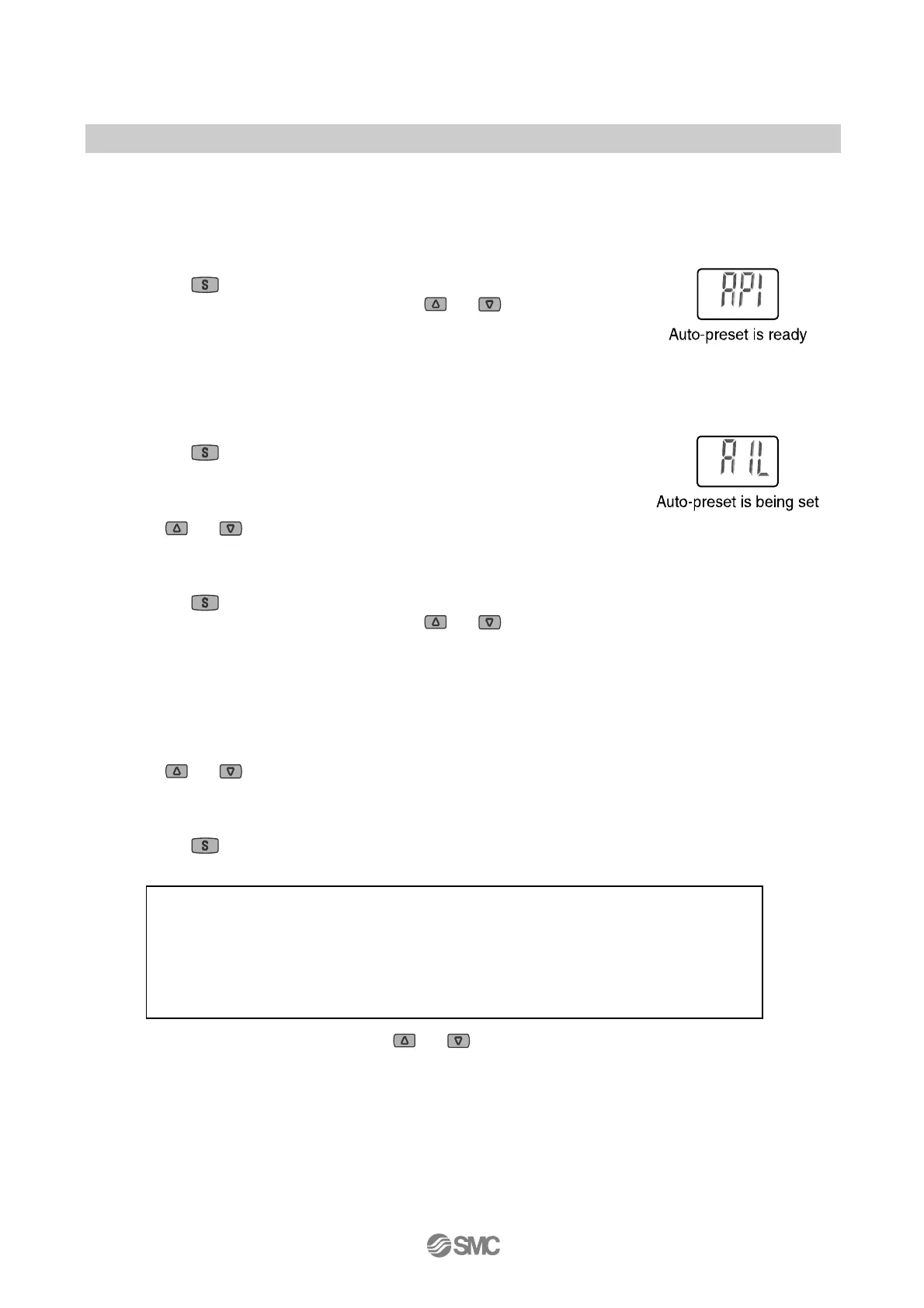

•Auto-preset
When auto-preset is selected in function selection mode, the set pressure can be calculated and
memorized from measured value. The set value is automatically optimized by repeating the suction and
release of the object for the setting.
1, Selection of auto-preset OUT1
Press the
button in measurement mode to display "AP1".
(If OUT1 does not need to be set, press the
and buttons
simultaneously for 1 second or longer after "AP1" is displayed to
move to "AP2".)
2, Preparation of OUT1 device
Prepare the device for which the pressure of OUT1 is set.
3, Setting of auto-preset value of OUT1
Press the
button to display "A1L".
After measurement starts, operate the device and change the pressure.
When the pressure change is detected, "A1H" will appear automatically,
and so continue to operate the device repeatedly.
(If the
and buttons are pressed simultaneously for 1 second or longer
during "A1L" displaying, measurement is stopped and "AP2" will appear.)
4, Selection of auto-preset OUT2
Press the
button to set "P_1" and "H_1" ("n_1" and "H_1" for reverse mode) and display "AP2".
(If OUT2 does not need to be set, press the
and buttons simultaneously for 1 second or longer
after "AP2" is displayed to move to measurement mode.)
5, Preparation and setting of OUT2 device
Prepare the device for which the pressure of OUT2 is set, and perform the setting of OUT2 in the same
manner as that for OUT1.
After "A2L" is displayed and measurements starts, when the pressure change is detected, "A2H" will
appear automatically.
(If the
and buttons are pressed simultaneously for 1 second or longer during "A2L" displaying,
measurement is stopped and measurement mode returns.)
6, Completion of setting
Press the
button to set "P_2" and "H_2" ("n_2" and "H_2" for reverse mode) and complete
auto-preset mode. After that, measurement mode returns.
The set values for OUT1 are displayed in auto-preset mode as follows.
•Normal output •Reverse output
P_1 = A-(A-B)/4 n_1 = B+(A-B)/4 A = Max. pressure
H_1 = (A-B)/2 H_1 = (A-B)/2 B = Min. pressure
The display of set values of OUT2 is changed at the number after "_", i.e. "P_2", "n_2",
"H_2".
If this setting is unnecessary, press the
and buttons simultaneously for 1 second or longer.
