SMC Networks ZSE30A(F) - Copy Process, Status, and Error Handling

-40-
No.PS##-OML0003-B

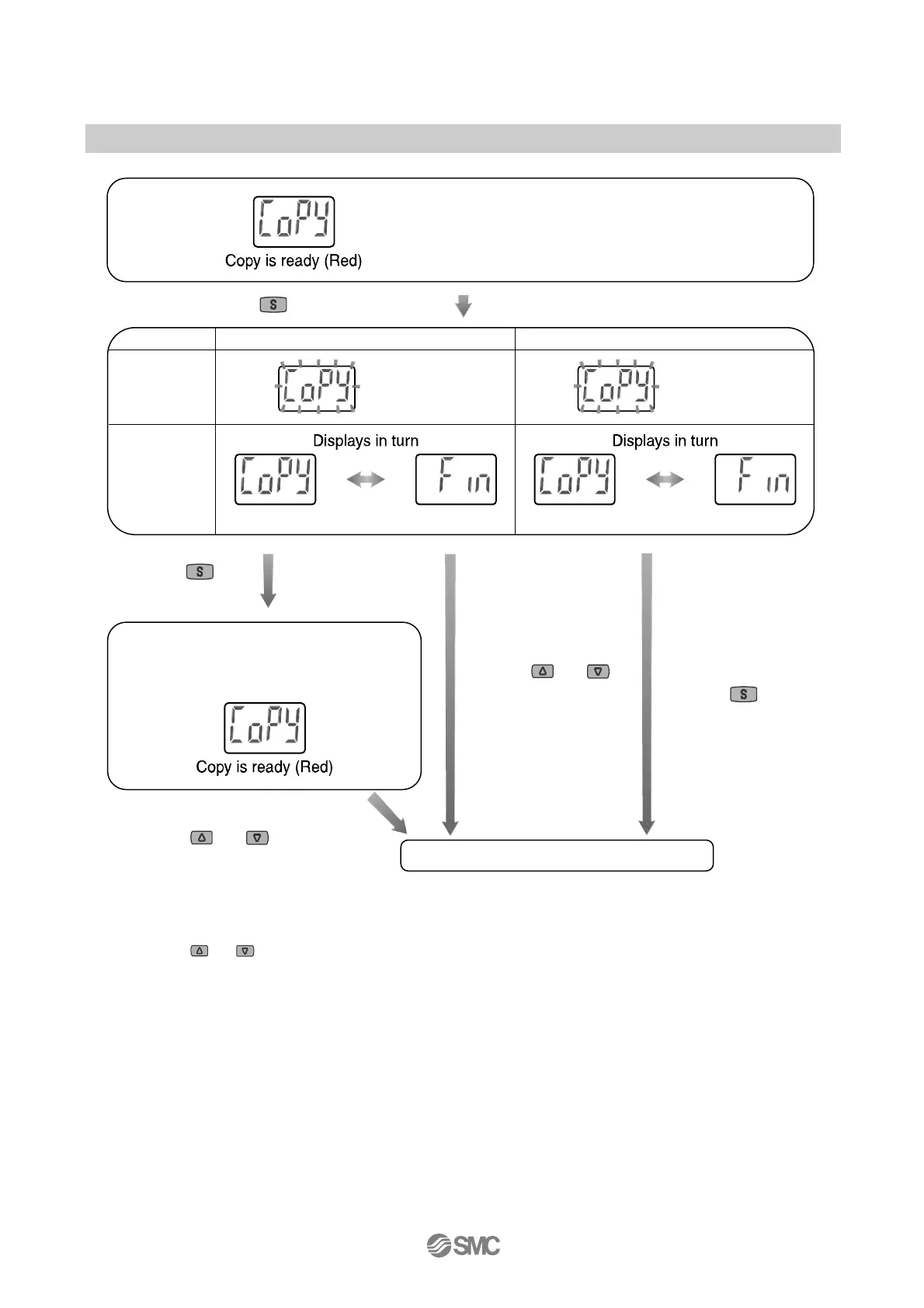

Press the button to start copying.
The master Pressure switch The slave Pressure switch
Sending/
Receiving
Copy
completed
(Red) (Green)
Press the
button.
When completing copy function,
press the
and buttons
simultaneously for 1 second or longer. Setting of [F97] copy function completed
∗: If the copy to the slave pressure switch is not completed, it is detected as a copying function sending/receiving error.
Press the
and buttons simultaneously for 1 second or longer to return to measurement mode. Then, check the wiring and
specifications of the switch and retry copy function.
The copy can be done continuously and
the copy ready statues can be held even
if the power supply is turned off.
Press the and
buttons simultaneously
for 1 second or longer.
Press the button.
Flashing
(
Red
)
Flashing
(Green)
The copy ready status is held even if the power
supply is turned off.
