Smipack BP700 - Machine Installation; Description of the Machine; Weight and Dimensions of the Packed Machine

69/282
ENGLISH
Use and maintenance manual ßP700

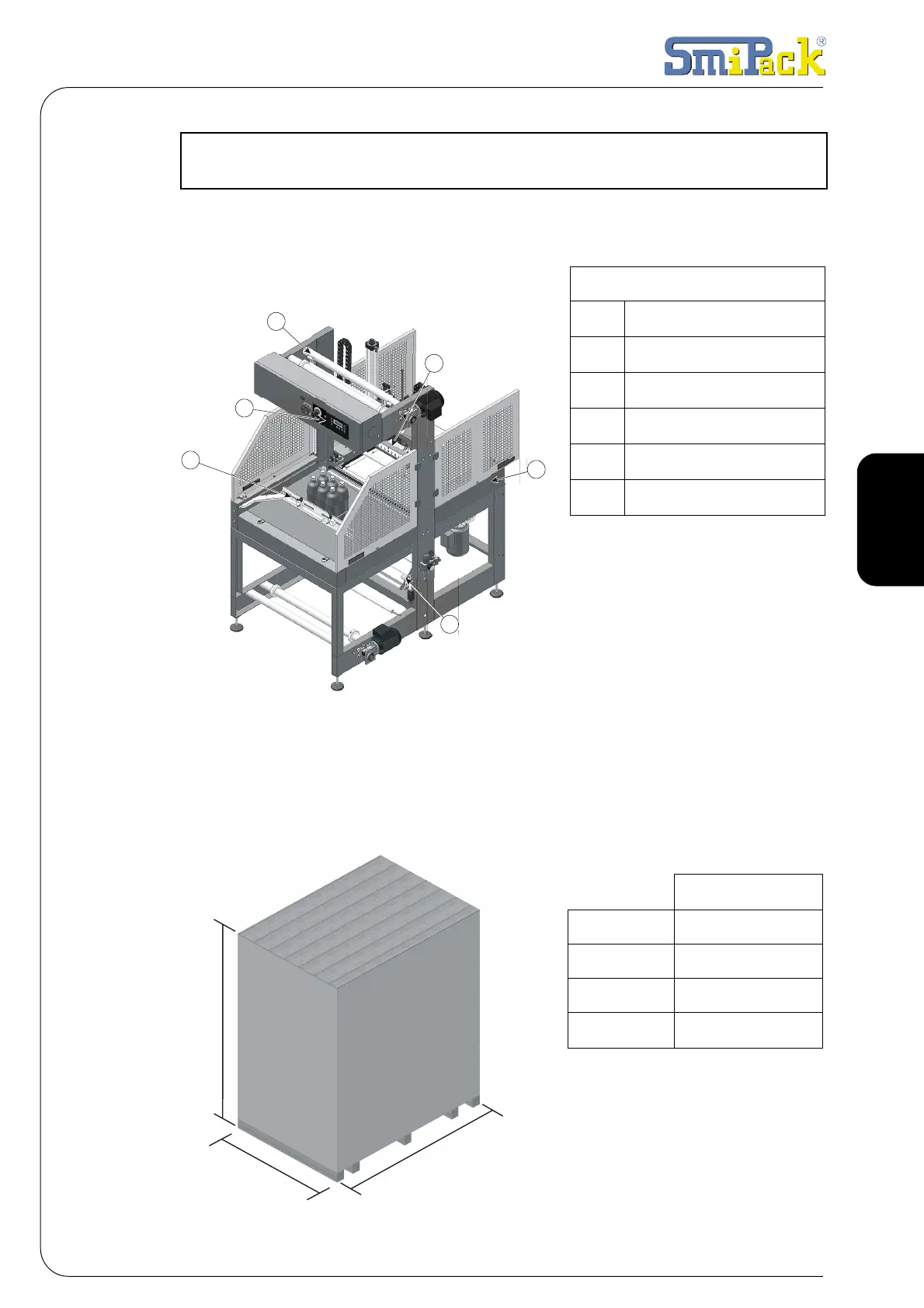

2.1 DESCRIPTION OF THE MACHINE
2.2 WEIGHT AND DIMENSIONS OF THE PACKED MACHINE
Fig. 2.1.1
GLOSSARY
1
Feeding bar
2
Sealing blade
3
Reel holder
4
Tensioning bars
5
Electronic card
6
Connecting belt
Fig. 2.2.1
ßP700
X
1750 mm
Z
2120 mm
Y
1200 mm
WEIGHT
377 Kg
2. MACHINE INSTALLATION
1
2
3
4
5
6
Z
Y
X
