2. Machine installation
2.3 WEIGHT AND DIMENSIONS OF THE MACHINE
2.4 TRANSPORT AND UNPACKING
ATTENTION!
Before handling make sure that the hoisting equipment are suitable to lift the
load that has to be handled.
In the case of long storing, place the machine in a sheltered environment with a
temperature between -15°C and +55°C degree of humidity, variable between 30% and
90% without condensation.

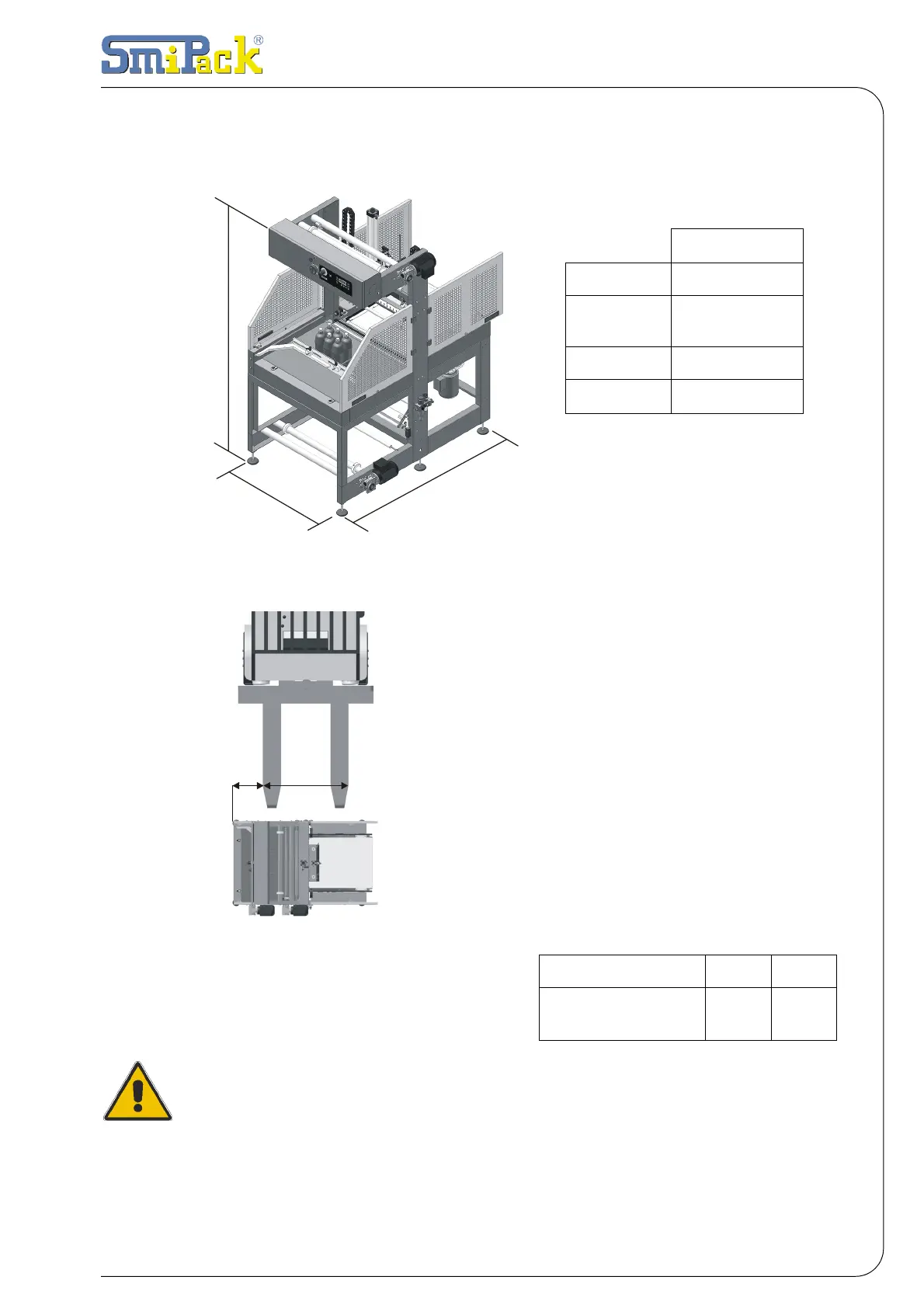

Fig. 2.3.1
ßP700
X
1605 mm
Z
min. 1940 mm
max. 2000 mm
Y
930 mm
WEIGHT
304 Kg
SMIPACK S.p.A. in function of the
means of transport and of the type of
products to be shipped utilizes pac It is
recommended to handle with great
care the machine during transport and
positioning.
The forwarder is responsible for every
damage that may occur during
transport.
Unpack the unit making sure not to
damage any exposed parts.
The distance to observe A and B, to lift
the machine are:
Fig. 2.4.1
MODEL A B
ßP700
430
mm
900
mm
Y
Z
X
A
B
