ATTENTION!
The blade must be positioned so that it combines perfectly with the sealing unit.
A wrong positioning could break the sealing unit and the blade.
7.4 REPLACING SILICONE RUBBER AND SPRINGS OF THE
SEALING CONTRAST UNIT

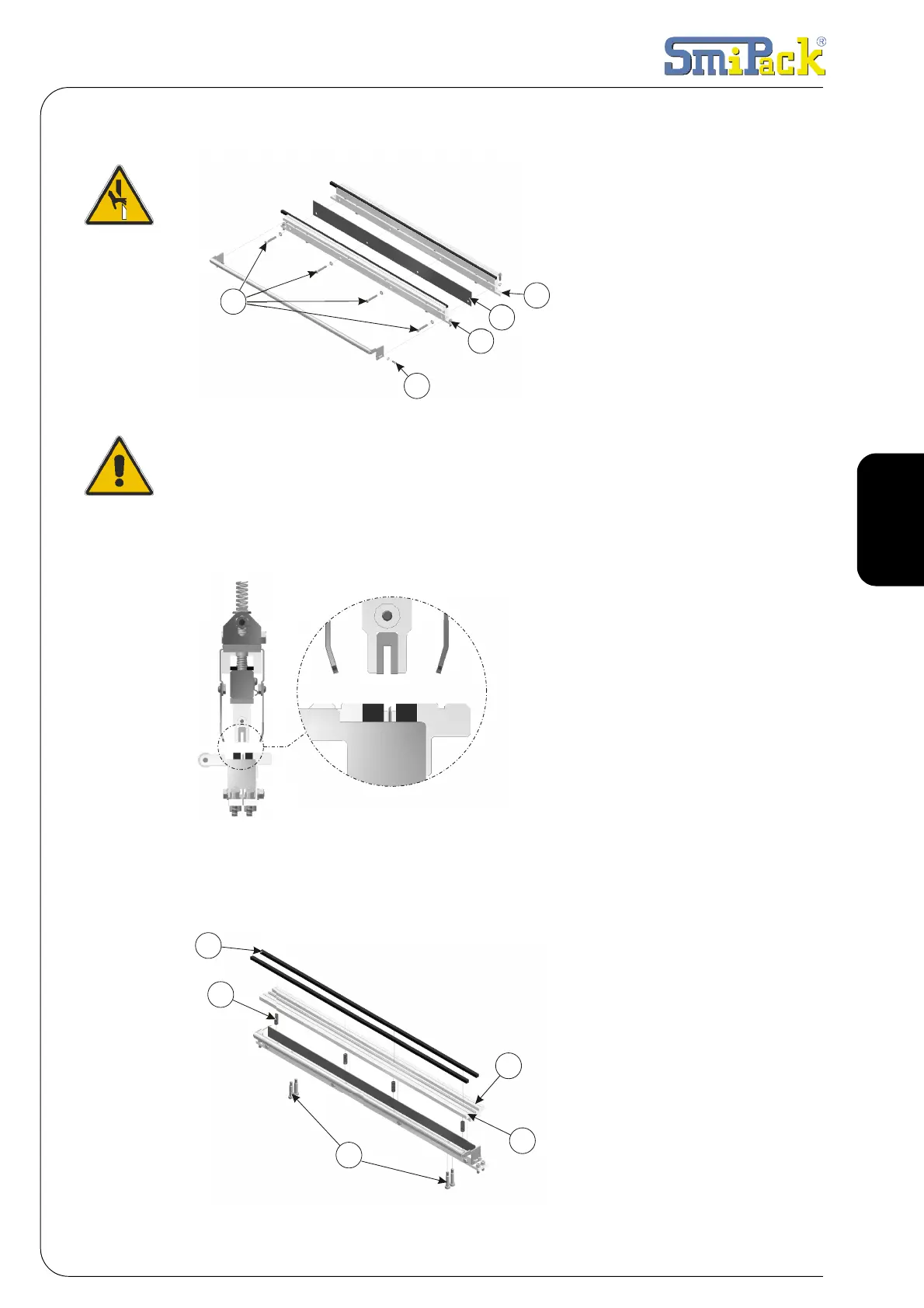

Fig. 7.3.2
• Then, after unscrewing the
screws 3 and 4, separate the
two elements 5 as in fig. 7.3.2.
• Replace the blade 6 using
protection gloves.
Fig. 7.3.3
Fig. 7.4.1
To replace the silicon rubber 1
and the springs 2, you do not
have to disassemble the sealing
unit, loosen the screws 3 and
after separating the supports 4 e
5 replace the components
3
5
6
5
4
2
4
5
3
1
