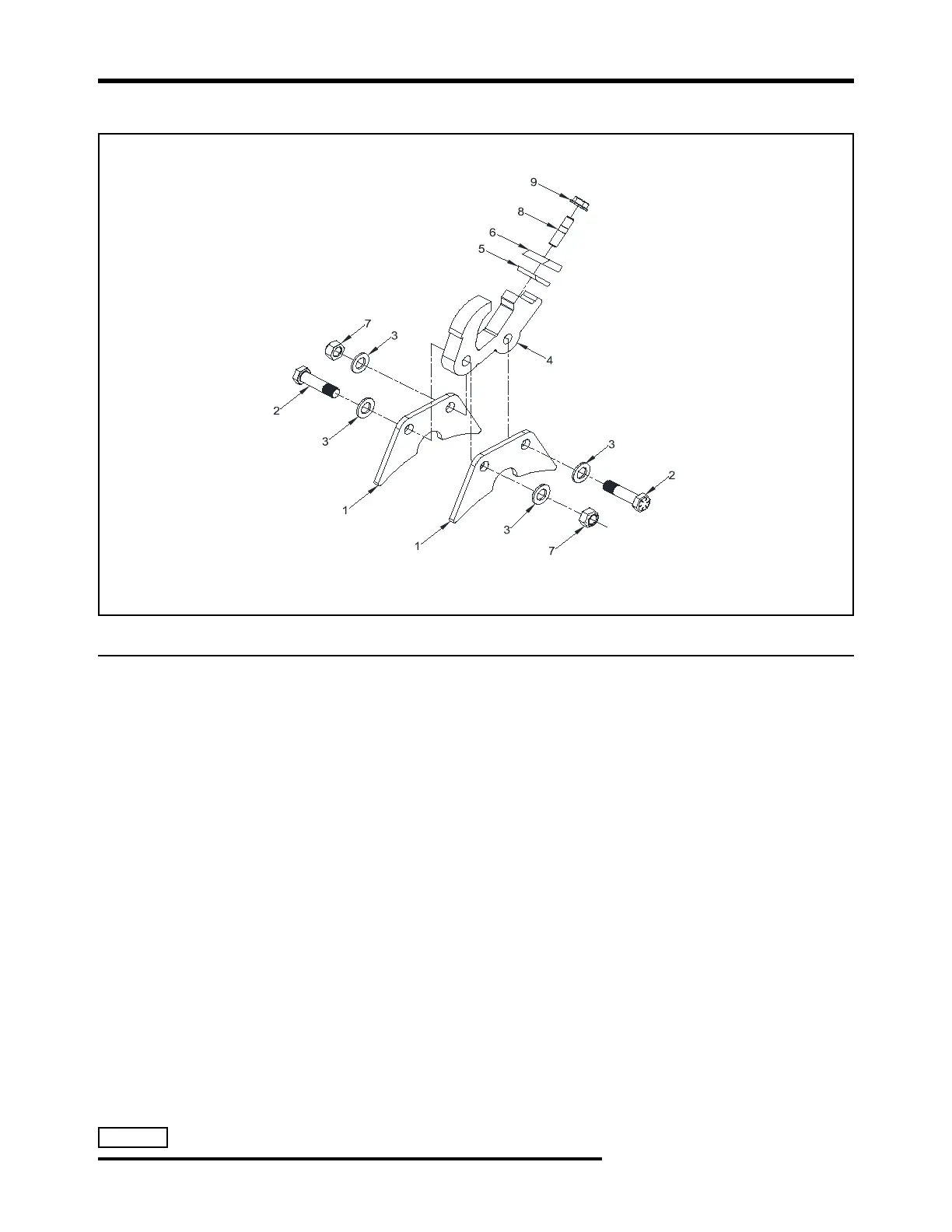

MODELS 3680/2680 Beast
NOTICE Parts may not be exactly as shown.
KNIFE STYLE
LOCATION PART NUMBER DESCRIPTION
1. 977-301087 Body Support Arm
2. 900-4908-78 Cutter Body Bolt
3. 900-6907-68 Washer
4. 977-900722 Cutter Body
5a. 900-9915-25 Counter Knife
5b 900-9915-24 Wear Block (Not Shown)
6. 900-9915-23 Knife
7. 900-4904-92 Cutter Body Nut
8. 900-4918-01 Stud
9. 900-4914-20 Hex Flange Nut
Torque Cutter Body Nuts to 700 ft.-lbs. (949 Nm)
Torque Cutter Knife Nut to 420 ft.-lbs (569 Nm)
