Smoracy, LLC
Copyright 3/15 INSERT
MODELS 3680 Beast
NOTICE Parts may not be exactly as shown.

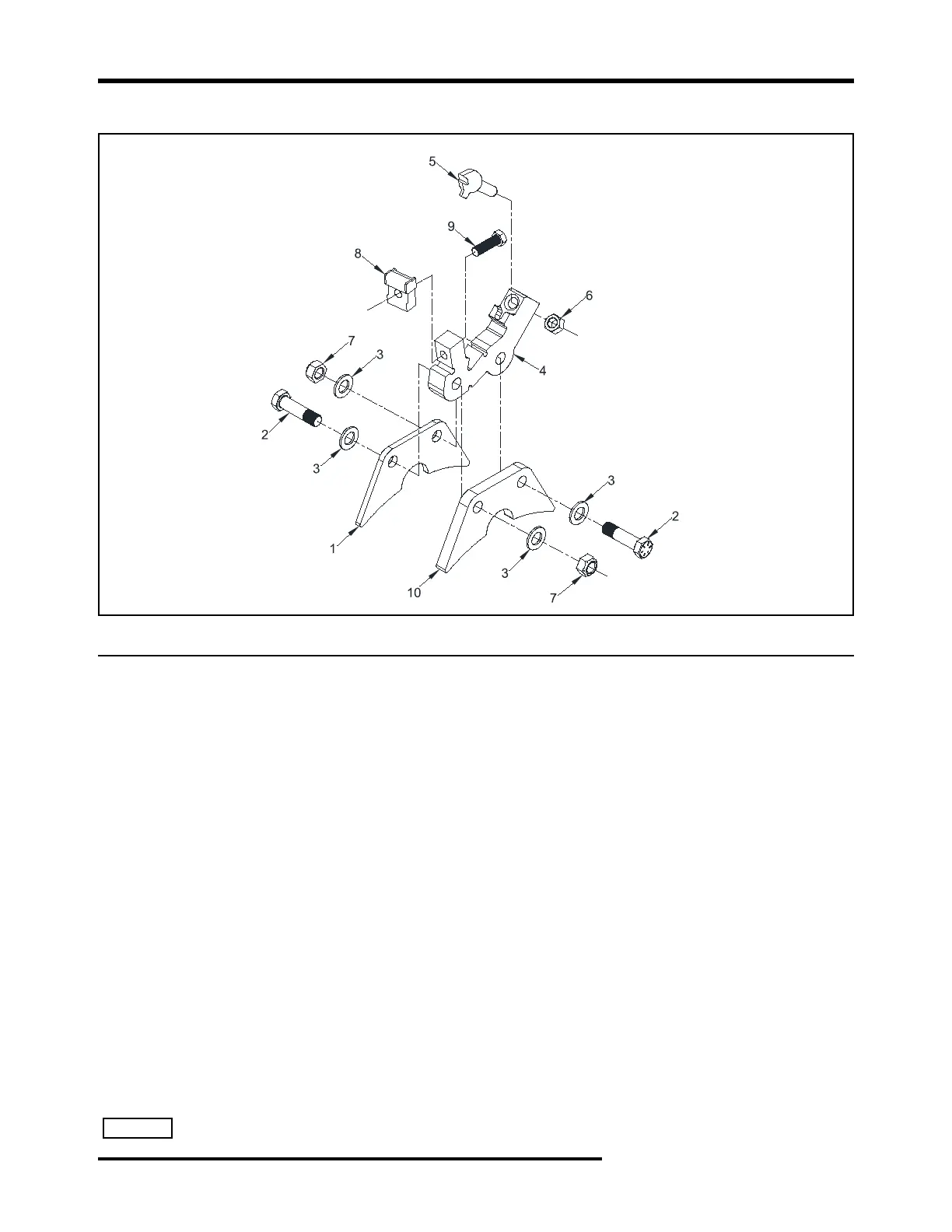

RAKER STYLE - HD CUTTERHEAD
LOCATION PART NUMBER DESCRIPTION
1. 977-301087 Cutter Body Support Arm
2. 900-4915-91 Cutter Body Bolt
3. 900-6907-68 Washer
4. 977-304720 Cutter Body
5. ** Cutter Tooth
6. 900-4901-66 Hex Nut
7. 900-4904-92 Cutter Body Nut
8. ** Forged Raker
9. 900-4918-11 Raker Bolt
10. 977-304031 1” Thick Cutter Body Support Arm
Torque Cutter Tooth Nut to 500 ft.-lbs (678 Nm)
Torque Cutter Body Nuts to 700 ft.-lbs. (949 Nm)
Torque Raker Bolt to 376 ft.-lbs (510 Nm)
** See Cutter Tooth & Raker Options
CUTTERHEAD COMPONENTS
