Smoracy, LLC
Copyright 3/15 INSERT
MODELS 3680 Beast
NOTICE Parts may not be exactly as shown.

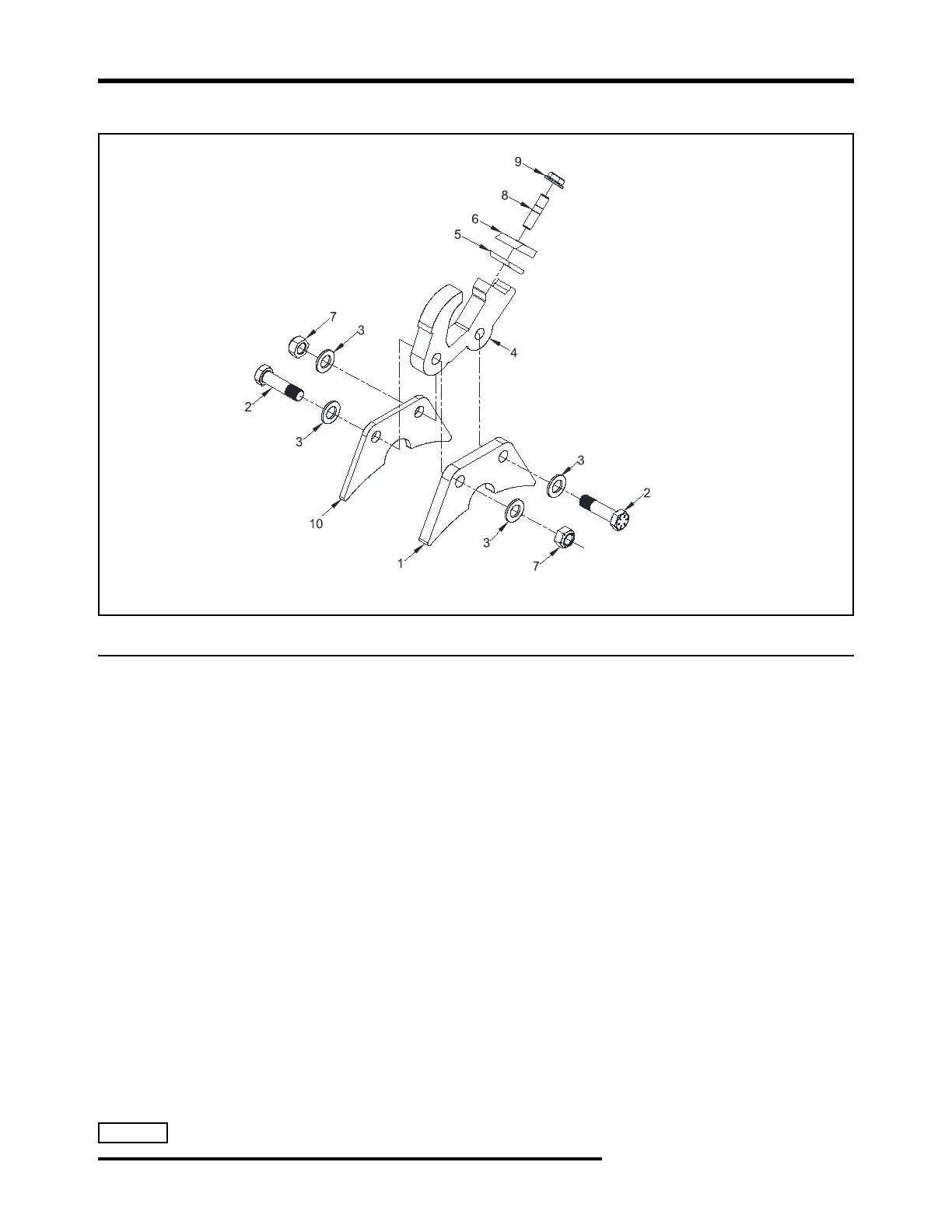

KNIFE STYLE - HD CUTTERHEAD
LOCATION PART NUMBER DESCRIPTION
1. 977-304031 1” Thick Cutter Body Support Arm
2. 900-4915-91 Cutter Body Bolt
3. 900-6907-68 Washer
4. 977-900722 Cutter Body
5a. 900-9915-25 Counter Knife
5b. 900-9915-24 Wear Block (Not Shown)
6. 900-9915-23 Knife
7. 900-4904-92 Cutter Body Nut
8. 900-4918-01 Stud
9. 900-4914-20 Hex Flange Nut
10. 977-301087 Cutter Body Support
Torque Chipper Knife Nut to 500 ft.-lbs (678 Nm)
Torque Cutter Body Nuts to 700 ft.-lbs. (949 Nm)
CUTTERHEAD COMPONENTS
