SMORACY BEAST 3680 - Page 156

Copyright 12/14 138 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680 HYDRAULIC COMPONENTS

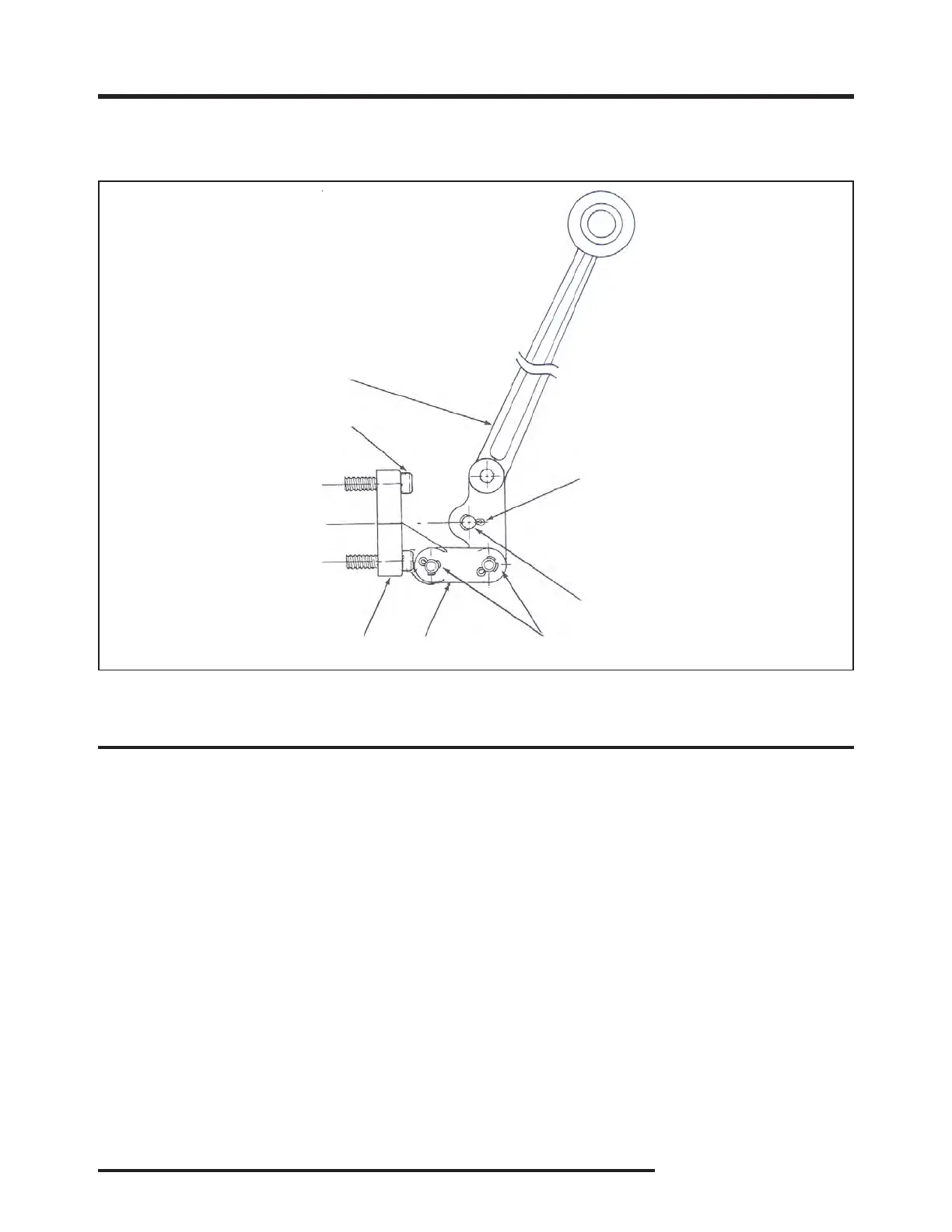

FOUR FUNCTION HANDLE & BRACKET
ASSEMBL
Y
LOCATION PART NUMBER DESCRIPTION
1 a. 11393-001 Link
b. 11392-001 Plate, Link
2. 1801-001 Bracket, Die Cast
3. 1802-003 Handle, Plain (actual Beast handle cut off to accomodate
cabinet door on four bank valve assembly).
4. 9161-407 Screw, HSHC
5. 0086-001 Pin, Cotter
6. 1857-001 Pin
7. 1800-001 Seal, Wiper (Not Shown)
8. K-6137-A Replacement Kit*
* Contains Items 2 and 4
3
4
2
15
5
6
