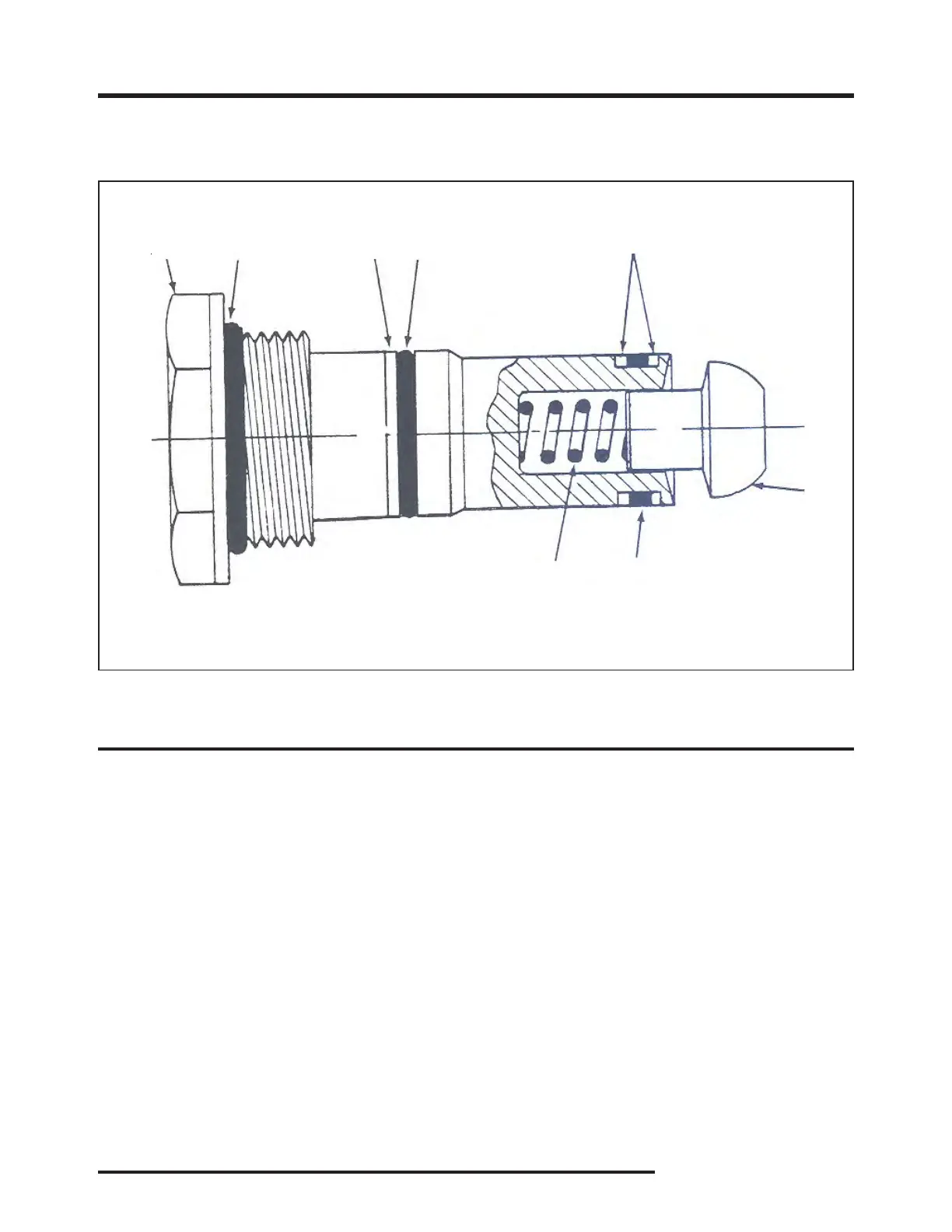

MODEL 3680 HYDRAULIC COMPONENTS
FOUR FUNCTION LOAD CHECK PLUG
ASSEMBLY
LOCATION PART NUMBER DESCRIPTION
1. 3411-001 Plug, Lift Check, Steel
2. 2707-001 Seal, O ring
3. 1821-001 Washer, Back Up, Outer
4. 1819-001 Seal, O ring, Outer
5. 1820-001 Washer, Back up, Inner
6. 1818-001 Seal, O ring
7. 2781-001 Poppet, Lift Check
8. 1868-001 Spring, Lift Check
9. K-6030-A Replacement Load Check Plug Assembly
1
2
34
5
7
6
8
