SMORACY BEAST 3680 - Page 158

Copyright 12/14 140 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680 HYDRAULIC COMPONENTS

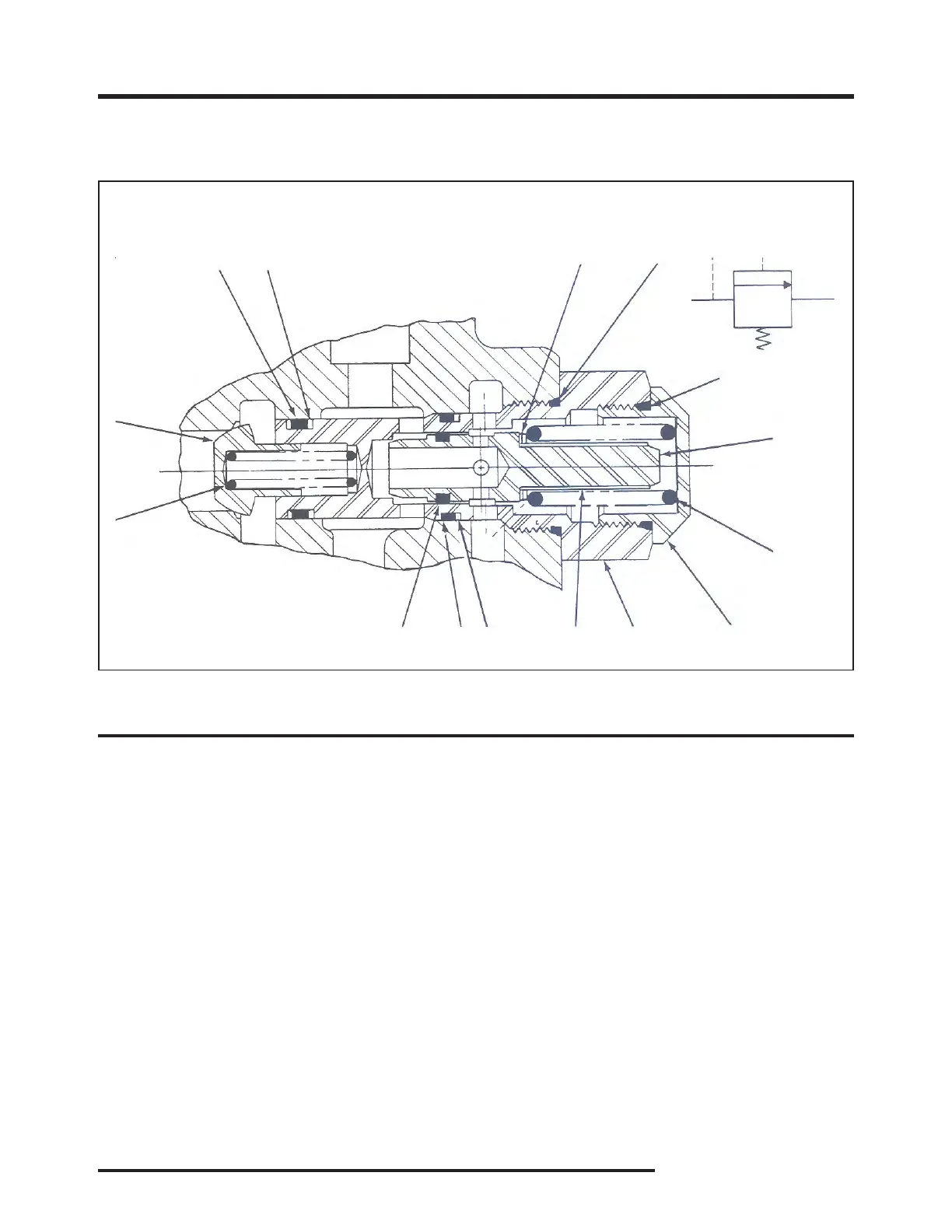

GATE CYLINDER PORT RELIEF
LOCATION PART NUMBER DESCRIPTION
1 a. 0458-001 Shim (.040 inch thick)
b. 0459-001 Shim (.020 inch thick)
c. 0462-001 Shim (.010 inch thick)
2 1869-001 Spring (500-1249 psi Crack)
3. 1818-001 Seal, O ring
4. 1819-001 Seal, O ring
5. 1820-001 Washer, Back up, Inner, Check Plug
6. 1821-001 Washer, Back up, Outer, Check Plug
7. 2707-001 Seal, O ring
8. 1880-001 Cap, Relief
9. 1884-001 Body, Relief
10. 1881-001 Poppet, Relief
11. 1883-001 Ring, Piston
12. 2781-001 Check, Steel
13. 1868-001 Spring, Check
14. 7874-001 Sleeve, Dampening
15. K-19002 Service Kit
3
5
2
7
1
7
2
8
9
6411
2
10
14
RC-1200 RELIEF CARTRIDGE (GRESEN)
