Copyright 12/14 141 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680 HYDRAULIC COMPONENTS
INFEED, FEEDWHEEL, YOKE LIFT RELIEF
LOCATION PART NUMBER DESCRIPTION
3. 01718001 O Ring
4. 09020022 Ring, Back Up
5. 20209001 Poppet, Main RP51
6. 08954001 Body, RP51, Relief
7. 06814002 Seal, O Ring AS-019
8. 11059001 Body, Pilot ASM (Torque to 15-18 ft.-lbs)
9. 10852001 Washer, ID-RP51
10. 09302006 Nut, Hex Jam* (Torque to 15-18 ft.- lbs)
11. 08956001 Screw, Adjustment (hex socket)
12. 10059001 Spring, Relief Pilot
13. 06884001 Seal, O Ring AS-012
14. 08475001 Poppet, Relief
15. 01615001 Seal O Ring AS-023
16. 24248001 Ring, Back Up
17. 01660001 Seal O Ring AS-019
18. 09000113 Seal O Ring AS-113
19. 20903001 Ring, Back Up
20. 20254001 Spring
* 3497-001 Acorn Cover Nut (not shown)
sold seperately from complete cartridge
Adjustable Relief Valve See pressure settings in “Hydraulic Section” for proper settings

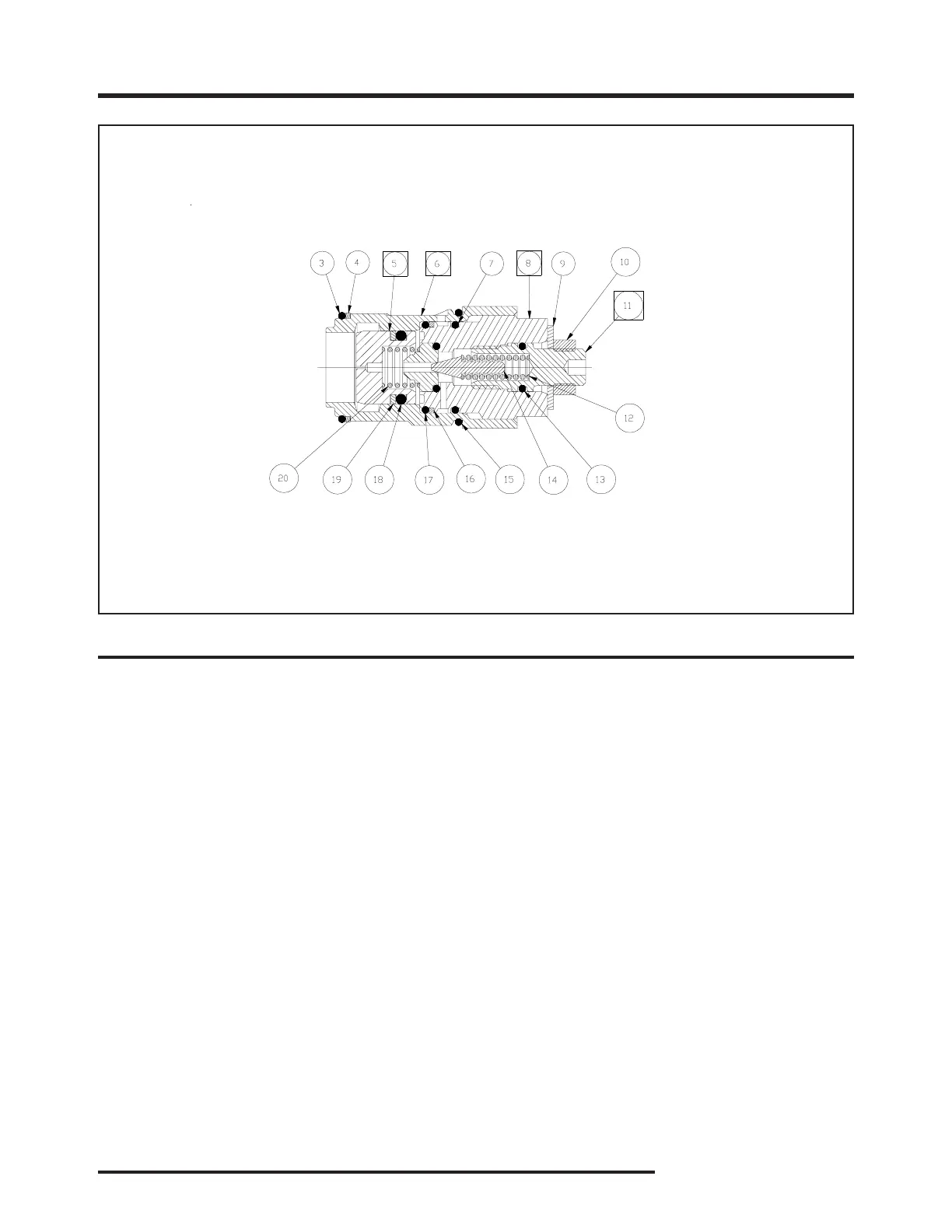

RP51A ADJUSTABLE RELIEF CARTRIDGE (GRESEN)
