MODEL 3680 AUTOFEED SECTION
AUTO FEED SECTION
RED LED
The Red LED will light when Output 1 is active and putting out positive voltage to the feed system solenoid
valves. This happens when the Autofeed stops the feed system from feeding in, reverses and stays lit until the feed
system starts to feed again.
OUTPUT WIRING
IMPORTANT:
It is of the utmost importance that the digital control be connected to a clean power source. The clean power
source can or could include (first choice) the accessory side of the key switch or (second choice) the run side of the
key switch.
A clean power source is the result of filtering unwanted voltage spikes and EMF. Spikes can be prevented by
the installation of clamping diodes at their source (coils).

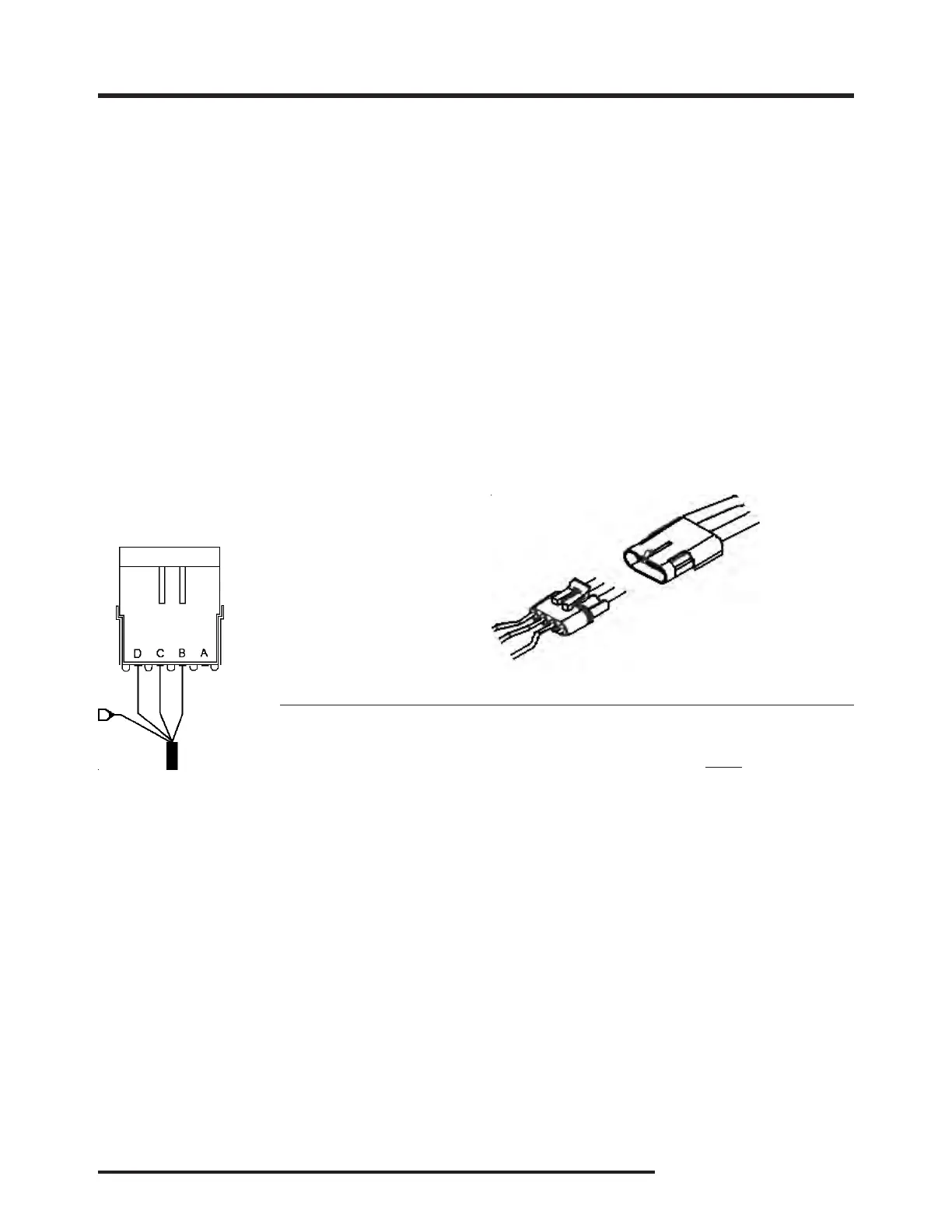

POSITION COLOR FUNCTION
ORANGE Positive output to solenoid coil (Output 2)
D GREEN Positive output to solenoid coil (Output 1)
C RED Positive Voltage from clean power source
B BLACK Ground
A WHITE Signal from alternator or magnetic pickup
WEATHER-PACK CONNECTOR
