Operation Changing Viewing Modes
i When the Thermal Laser is turned on, the viewing mode that was active when the unit was turned
off is resumed.
Pressing the UP▲ or DOWN▼ control buttons allows you to change the viewing mode.
Press the UP▲ control button repeatedly to increase thermal opacity, full UP = 100% (Figure 4-3).
Press the DOWN▼ control button repeatedly to decrease thermal opacity (Figure 4-3).

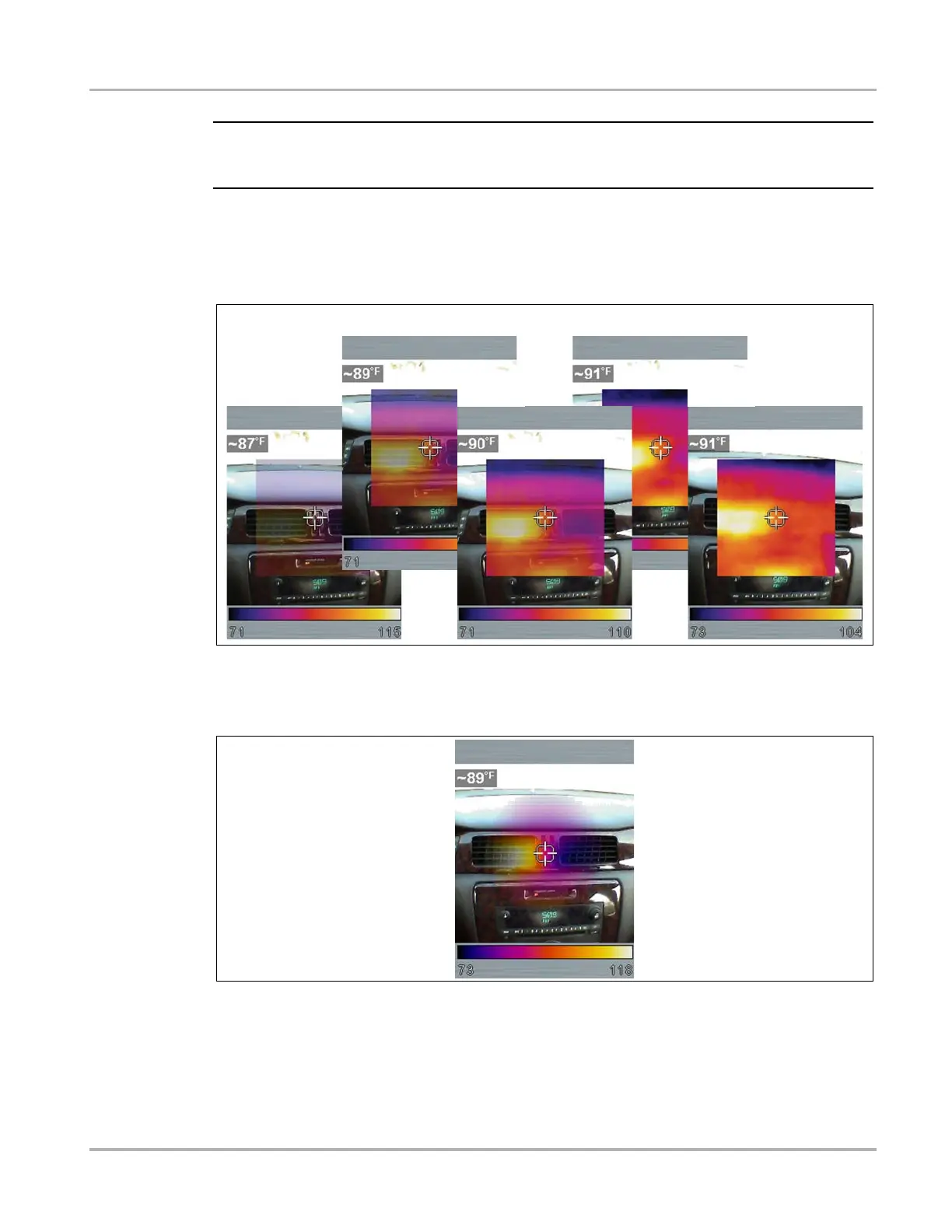

Figure 4-3
At the 20% level (Figure 4-3), pressing DOWN▼ once displays the Diffused Beam view. This view
displays at 100% opacity at center and gradually decreases radially to 0% (Figure 4-4).
Figure 4-4
From the Diffused Beam view, pressing DOWN▼ once displays laser spot temperature mode, see
Using Laser Spot Temperature Mode on page 8.
