Page 6 - 32 UL25/UL32/UL40
ILLUSTRATED PARTS LIST
A.C. PLATFORM CONTROL BOX - 514795-000
ITEM PART NUMBER DESCRIPTION QTY
1 514788-000 UL upper control box weldment 1
2 514789-000 UL A.C. upper control box panel 1
3 514433-000 7 way chassis socket 1
4 510524-000 SW twist release E/stop 1
5 0120803 Raise push button 1
6 510542-000 Pushbutton 1
7 0120804 Lower push button 1
8 514822-000 Switch 2-way spring to off 1
9 505082-010 4
10 514825-000 Overlay 1
Table 6-16: A.C. platform control box components.
4
7
9
8
5
1
2
3
6

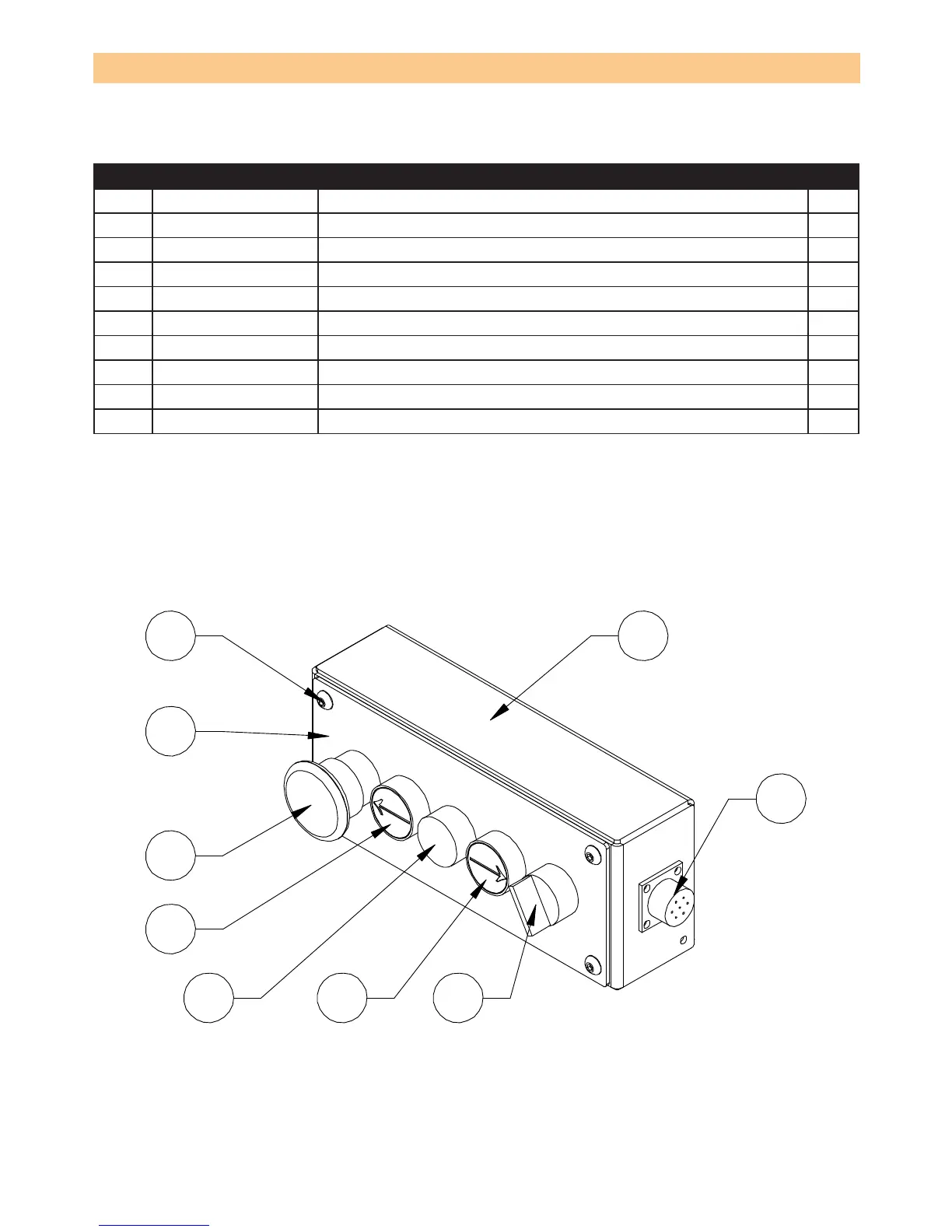

Figure 6-16: A.C. platform control box illustration.
To Next Page
