Page 6 - 33UL25/UL32/UL40
ILLUSTRATED PARTS LIST
D.C. PLATFORM CONTROL BOX - 514796-000
ITEM PART NUMBER DESCRIPTION QTY
1 514788-000 UL upper control box weldment 1
2 514790-000 UL D.C. upper control box panel 1
3 514433-000 7 way chassis socket 1
4 510524-000 SW twist release E/stop 1
5 0120803 Raise push button 1
6 510542-000 Pushbutton 1
7 0120804 Lower push button 1
8 505082-010 4
9 514826-000 Overlay 1
10 512934-000 LED red 12V 1
Table 6-17: D.C. platform control box components.
3
4
5
6 7
8
1
2
10

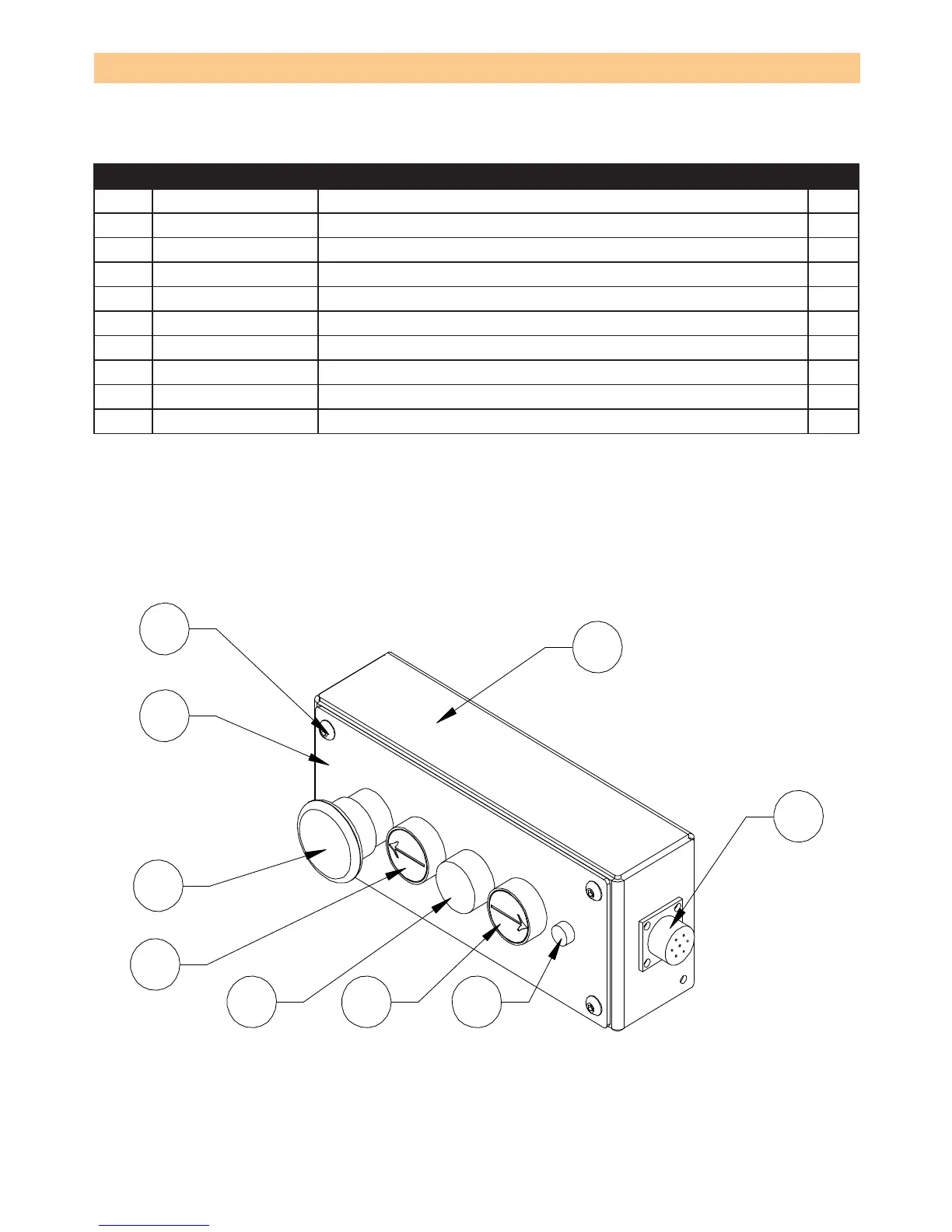

Figure 6-17: D.C. platform control box illustration.
