socomec Masterys BC User Manual

10
MASTERYS BC 100-120 kVA - Ref.: IOMMASBCXX07-EN 05
2.3.1-3
2.3.2-1
2.3.1-2
2.3-4
Ventilation
2.3-5
Climate control
2.3.1-1
2. UNPACKING AND INSTALLATION OF THE UNIT
COOL
AIR
WARM
AIR
CLIMATE CONTROL
COOL
AIR
WARM
AIR
UPS
UPS
CLIMATE CONTROL
UPS

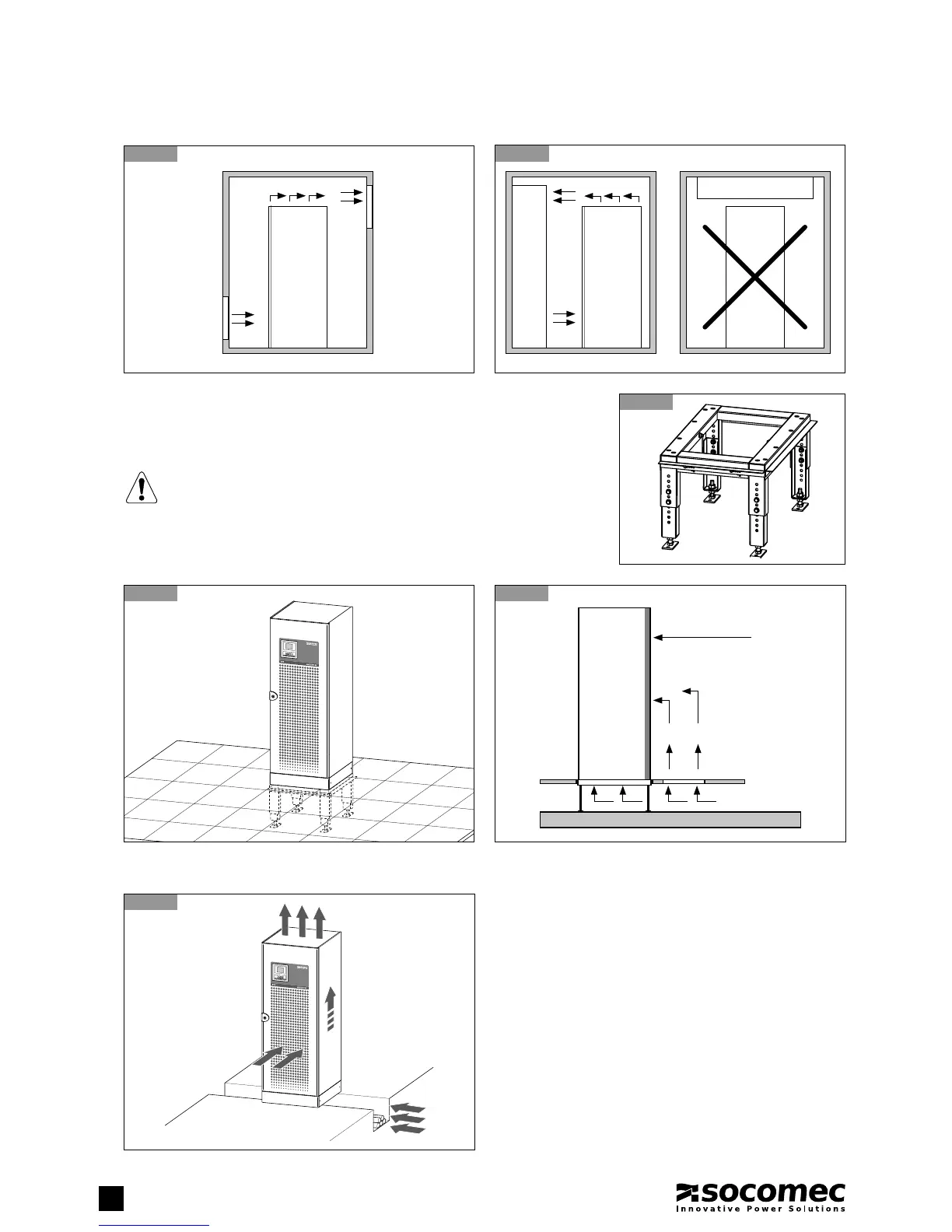

2.3.1. Installation on raised fl ooring
If the UPS is to be installed on raised fl ooring the SOCOMEC adjustable frame (fi gure
2.3.1-1) must be used to support the weight of the unit (fi gure 2.3.1-2).
Refer to the relevant installation manual provided in the packaging for
information on frame assembly operations.
Allow for small openings in the fl oor panels to ensure air fl ow at the front (fi gure 2.3.1-3).
2.3.2. Installation over a gap
UPS
COOL
AIR
COOL
AIR
DOOR

socomec Masterys BC Specifications

General

Frequency	50/60 Hz
Power factor	0.9
Protection Degree	IP20
Input Voltage	400 V three-phase + N
Output Voltage	400 V three-phase + N
Efficiency	Up to 96%
Battery Type	VRLA
Operating Temperature	0 to +40 °C
Relative Humidity	0% to 95% (non-condensing)
Cooling	Forced air
Communication Interface	RS232, USB
Dimensions	Varies by model (e.g., 650 x 800 x 1200 mm for 20 kVA)
Weight	Varies by model (e.g., 300 kg for 20 kVA)
Topology	Double conversion
