MASTERYS BC 100-120 kVA - Ref.: IOMMASBCXX07-EN 05
4. ACCESS TO CONTROLS

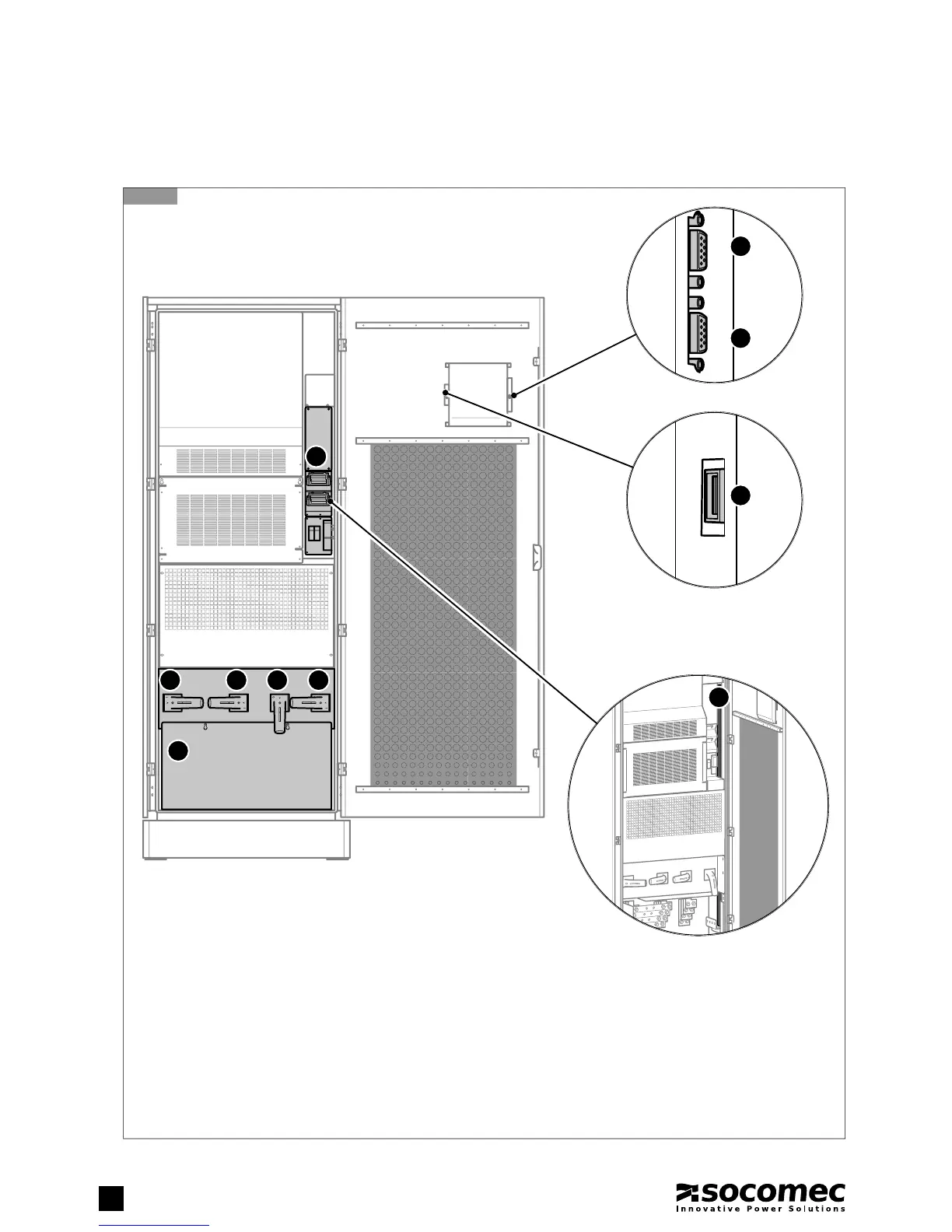

4.1. IDENTIFYING SWITCHING AND CONNECTION POINTS
Key
A Slot for optional communication cards.
B Serial RS232/485 connector.
C Serial RS232 connector.
D USB connector.
E Cable trunking for control cables.
F Power connections.
Q1 Input switch (MAINS).
Q3 Output switch.
Q4 Auxiliary mains Input switch (AUX MAINS).
Q5 Output maintenance bypass switch.
Q1 Q4 Q5 Q3
A
F
E
B
D
C
4.1-1
