MASTERYS BC 100-120 kVA - Ref.: IOMMASBCXX07-EN 05
2.6-1

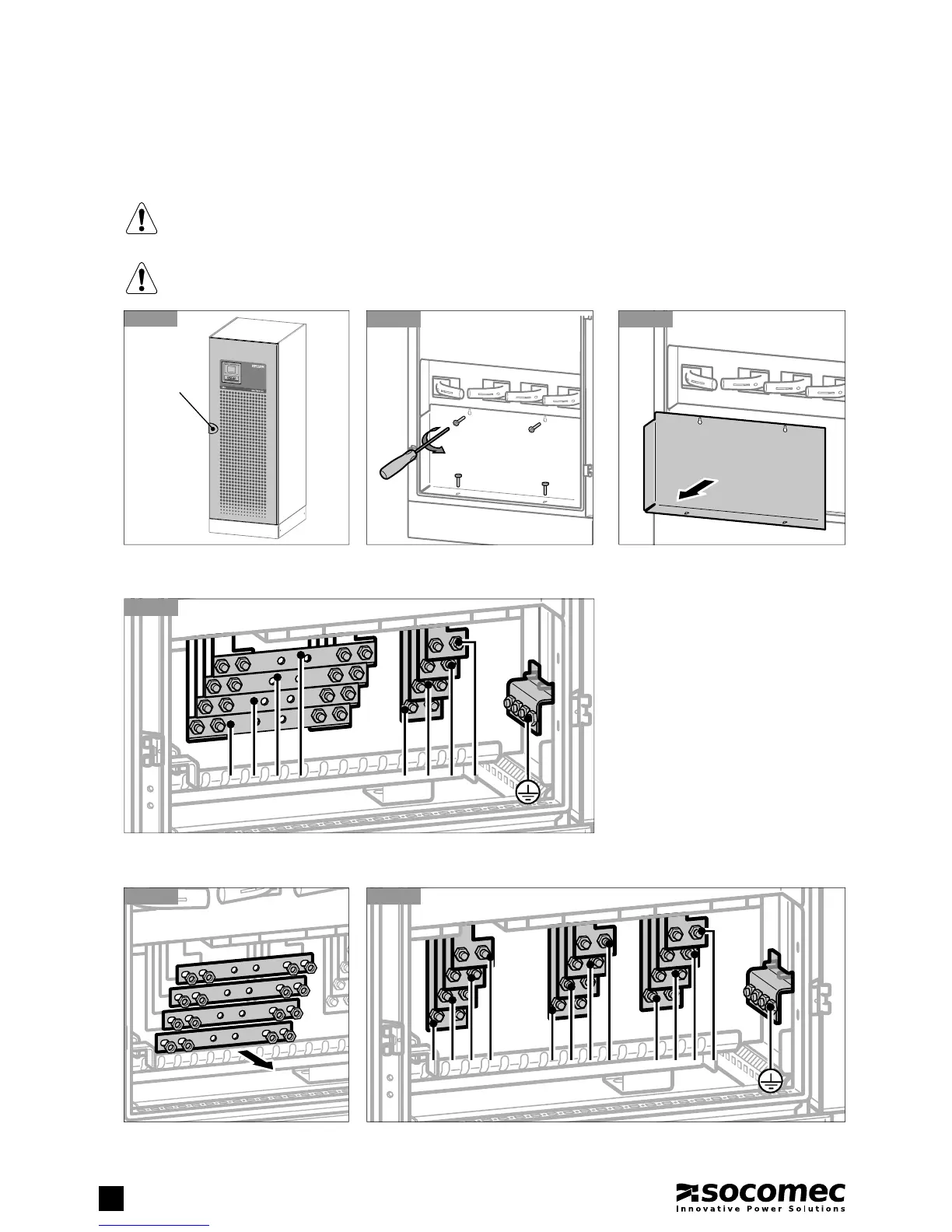

2. UNPACKING AND INSTALLATION OF THE UNIT
2.6. INSTALLATION PROCEDURES AND INSTRUCTIONS
WARNING!
Before carrying out work on the terminal board or on UPS internal parts, ensure the UPS is switched off, remove
the power supply, open the external battery cabinet disconnectors, isolate the system and wait 5 minutes.
The connecting bars are made of aluminium!
Use only aluminium cables or cables with tin-plated eyelets for the connections.
2.6.1. Connections if the MAINS and AUX MAINS are connected IN COMMON
OPEN
OPEN
2.6.2. Connections if the MAINS and AUX MAINS are connected SEPARATELY
MAINS
MAINS
AUX MAINS
AUX MAINS
MAINS
MAINS
OUTPUT
OUTPUT
N
N
L1
L1
L2
L2
L3
L3
N
N
L1
L1
L2
L2
L3
L3
N
N
L1
L1
L2
L2
L3
L3
N
N
L1
L1
L2
L2
L3
L3
N
N
L1
L1
L2
L2
L3
L3
2.6.1-1
2.6.2-2
2.6.2-1
2.6-2 2.6-3
OUTPUT
OUTPUT
