MASTERYS BC 100-120 kVA - Ref.: IOMMASBCXX07-EN 05
ENGLISH
2.2.1-1
Remove screws A
2.2.1-2
2.2-1
2. UNPACKING AND INSTALLATION OF THE UNIT
2.2. MOVING FROM ABOVE
IMPORTANT!
When being moved the cabinets must be kept in an upright position.
WARNING!
NEVER USE HARNESSES!

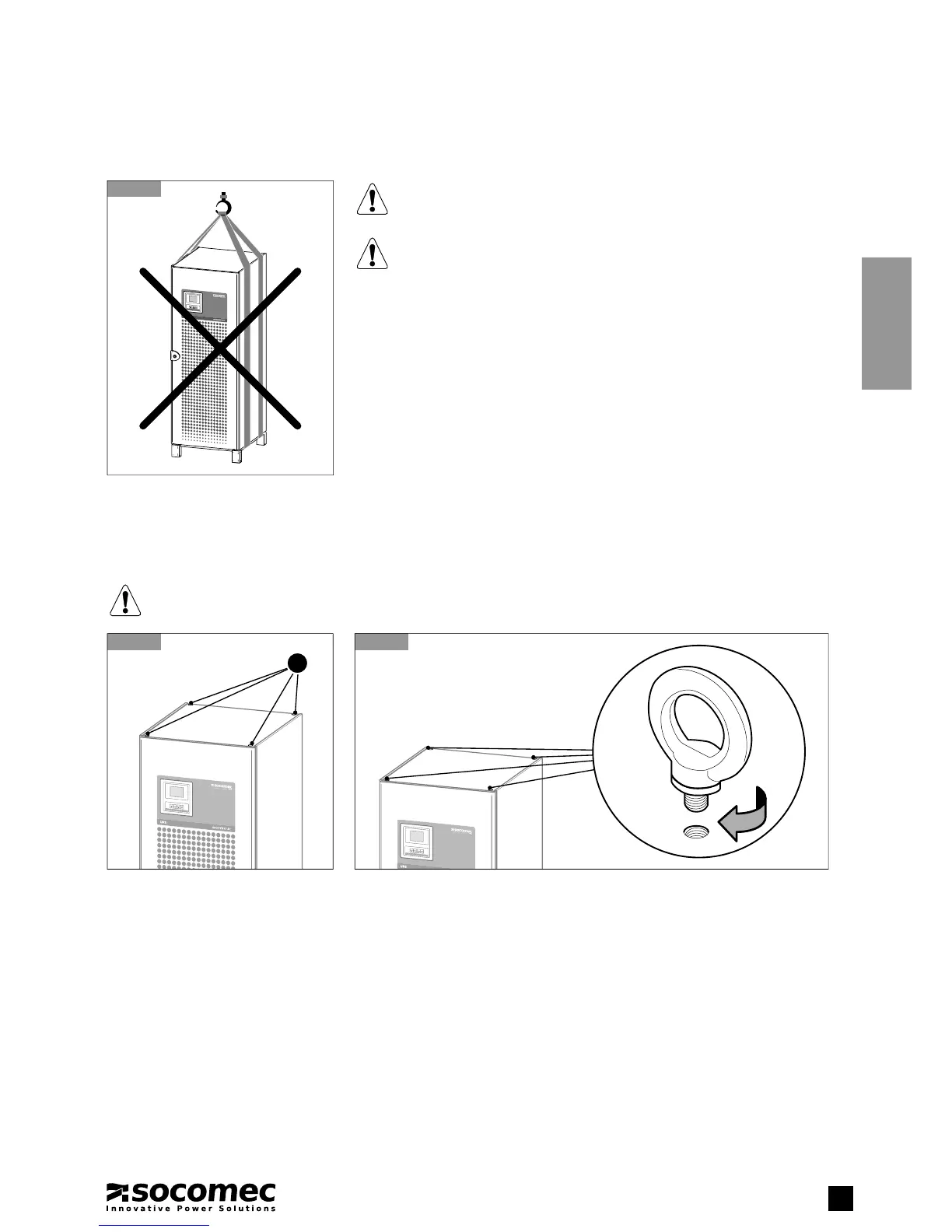

2.2.1. Moving with belts
• Length of belts: ≥ 150 cm
• Lifting eyebolts (supplied on request): internal ø 30 mm, thread M12.
WARNING!
LIFT AND HANDLE THE CABINETS WITH THE UTMOST CARE AND WITHOUT JERKING!
A
