4. ELECTRICAL INSTALLATION

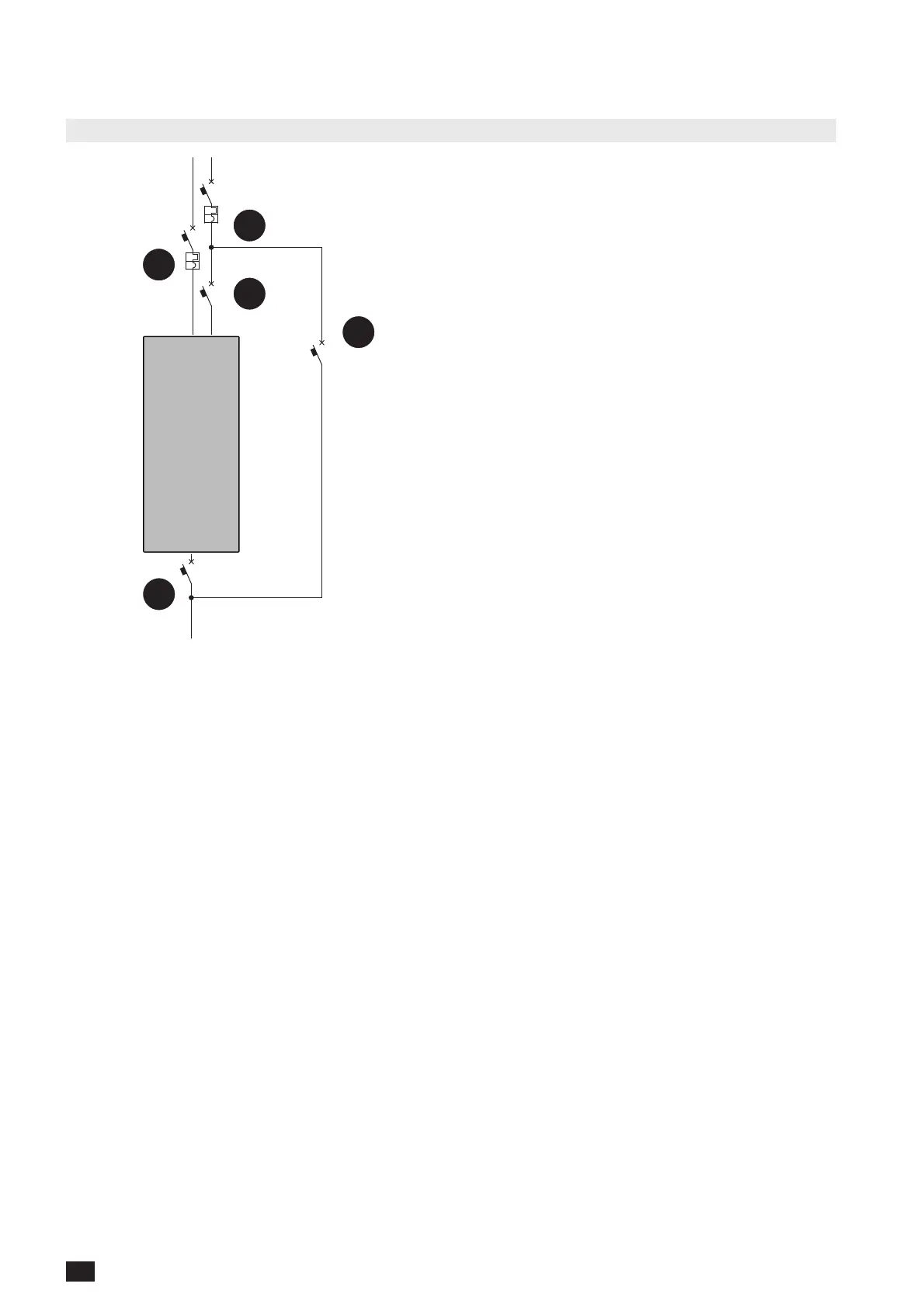

4.1 UPS single confi guration
A
B
I
G
MAINS AUX MAINS
F
OUT
KEY
A Input mains thermal-magnetic circuit breaker.
B Auxiliary mains thermal-magnetic circuit breaker.
F
(1)
External maintenance by pass switch.
G Unit output switch.
I Unit Auxiliary mains switch
1. Connect a normally-closed early make contact from the
External Maintenance bypass switch to the dedicated
connector (if present) or to the ADC+SL board.
UPS
To Next Page
