8.8 Menu function descriptions
8.8.1 Entering passwords

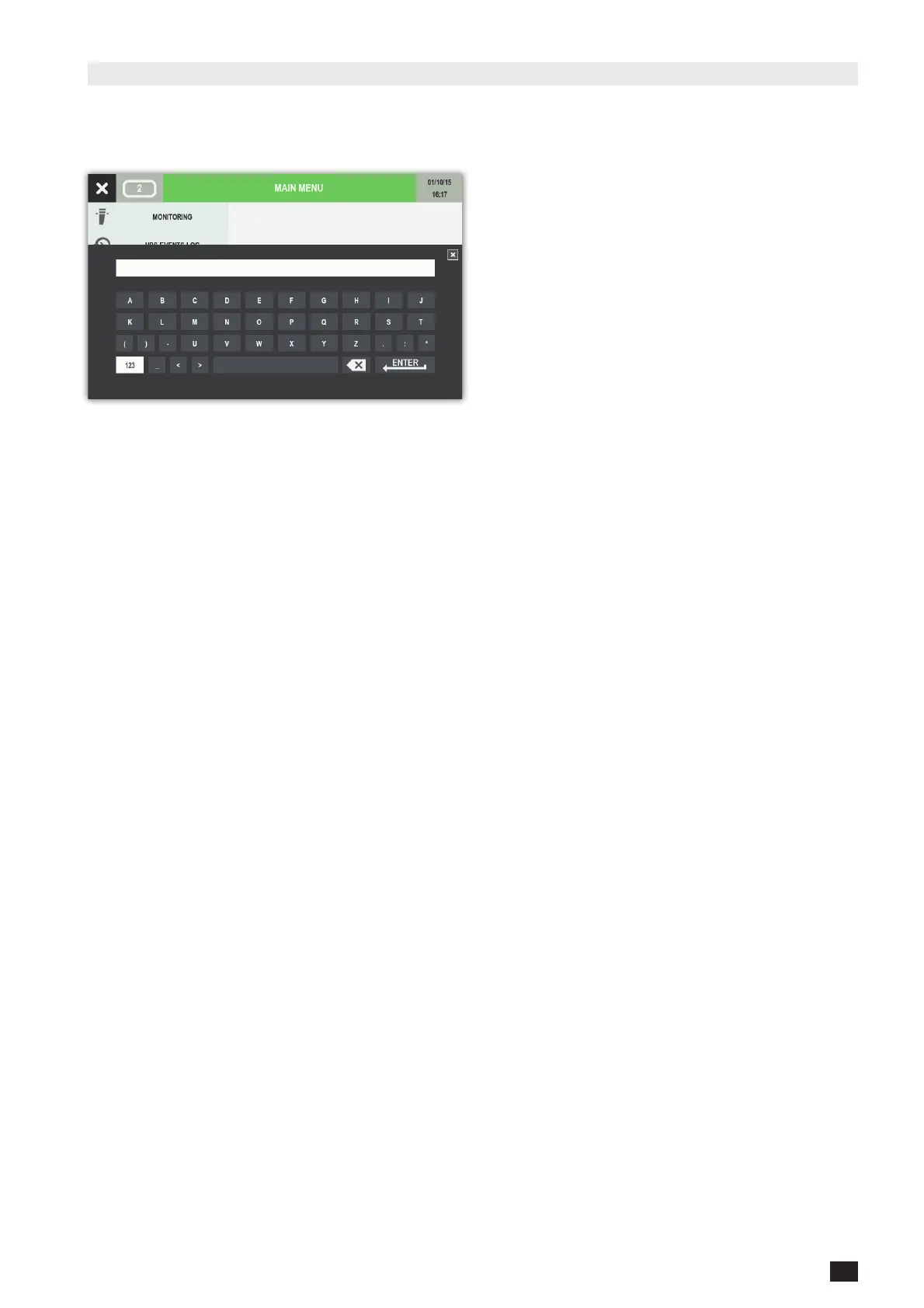

Some operations and settings require a password in order to be performed.
Press “123” to cycle to number view page.
Press ENTER to confirm.
Wildcard covering of the password is active by default.
The default password is SOCO.
Press ENTER to confirm the selection or HOME BUTTON to abort.
8.8.2 MONITORING menu
Submenu Alarm opens the alarm pages.
Submenu Status opens the status pages.
8.8.3 EVENTS LOG menu
This menu accesses the event log (Status and Alarms).
8.8.4 MEASUREMENTS menu
This menu displays all UPS measurements relating to the rectifier input stage, output stage, batteries, bypass input
stage and inverter.
The pins on the bottom of the screen indicate whether or not there are more pages. Sliding to the right or left
changes measurements page.
8.8.5 CONTROLS menu
This menu contains the commands that can be sent to the UPS. Some of them are password protected. If a
command is not available, a COMMAND FAILURE message appears.
• UPS PROCEDURE: START/ON MAINTENANCE BYPASS/STOP see 'Operating procedures' chapter.
• BATTERY: BATTERY CONTROL > BATTERY TEST: this function checks whether or not test conditions are
available and returns the results.
• ECO MODE CONTROLS: this function sets/resets the ECO MODE.
• MAINTENANCE: Alarms reset: this function clears the alarm history, LED test: this function activates LED flash-
ing for a few seconds.
