8. DISPLAY OPERATION

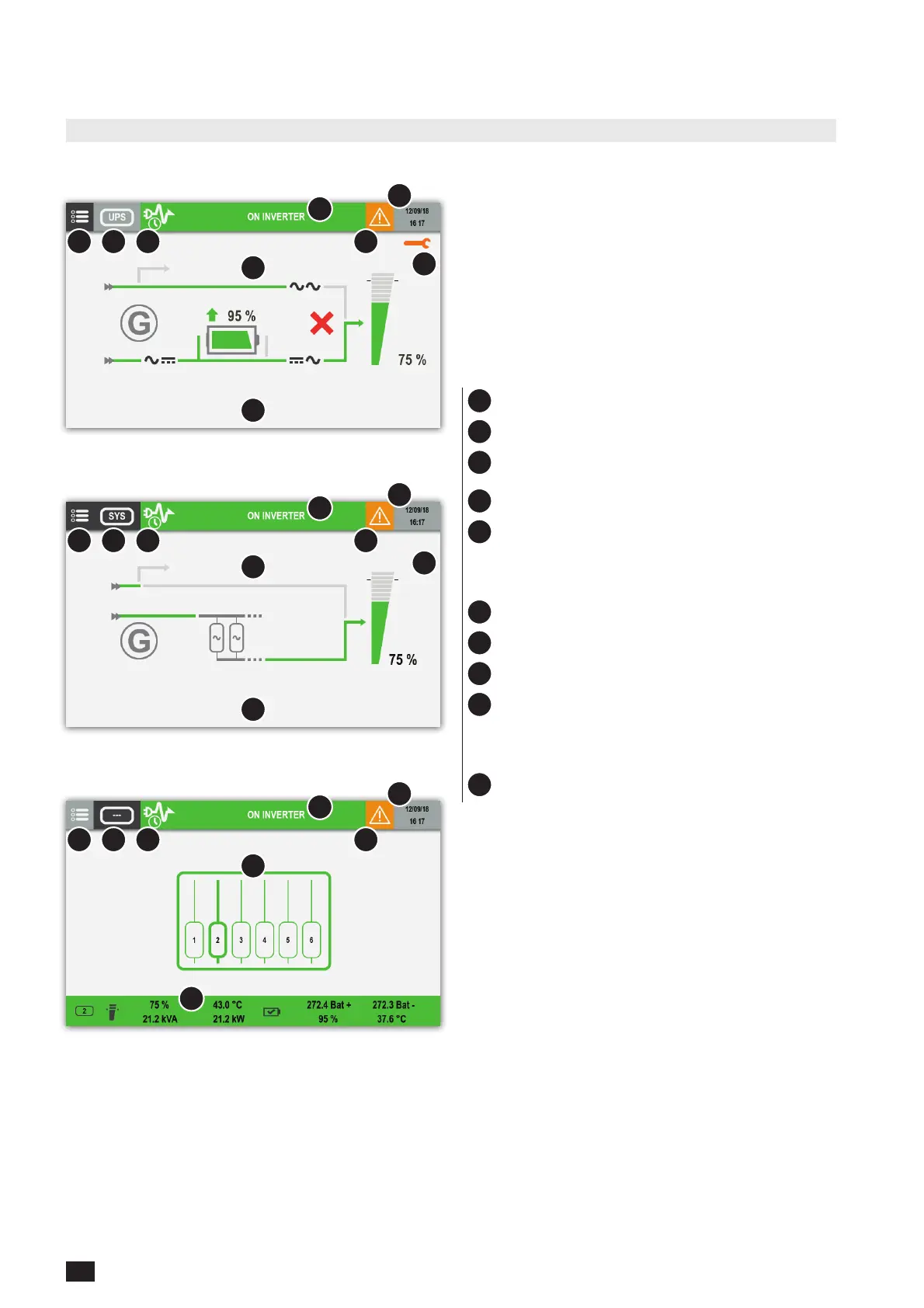

8.1 Display description
1
Menu access
2
Device reference
3
Functioning mode (see 'Functioning mode' chap-
ter)
4
Status displaying / Status page access
5
Alarm present – access to alarm page
“Alarms” icon appears in case of preventive/criti-
cal alarm. A dedicated pop-up appears and can
be cleared.
6
Clock
7
Maintenance alert
8
Synoptic area
9
Help message area
“Press Key to wake up” appears when the
display goes on standby. Touch the display to
wake it up.
10
Measures report
• Stand alone UPS or unit view
7
2 31
4
6
5
8
9
• UPS parallel system: System view
7
2 31
4
6
5
8
9
• UPS parallel system: Units overview
2 31
4
6
5
8
10
