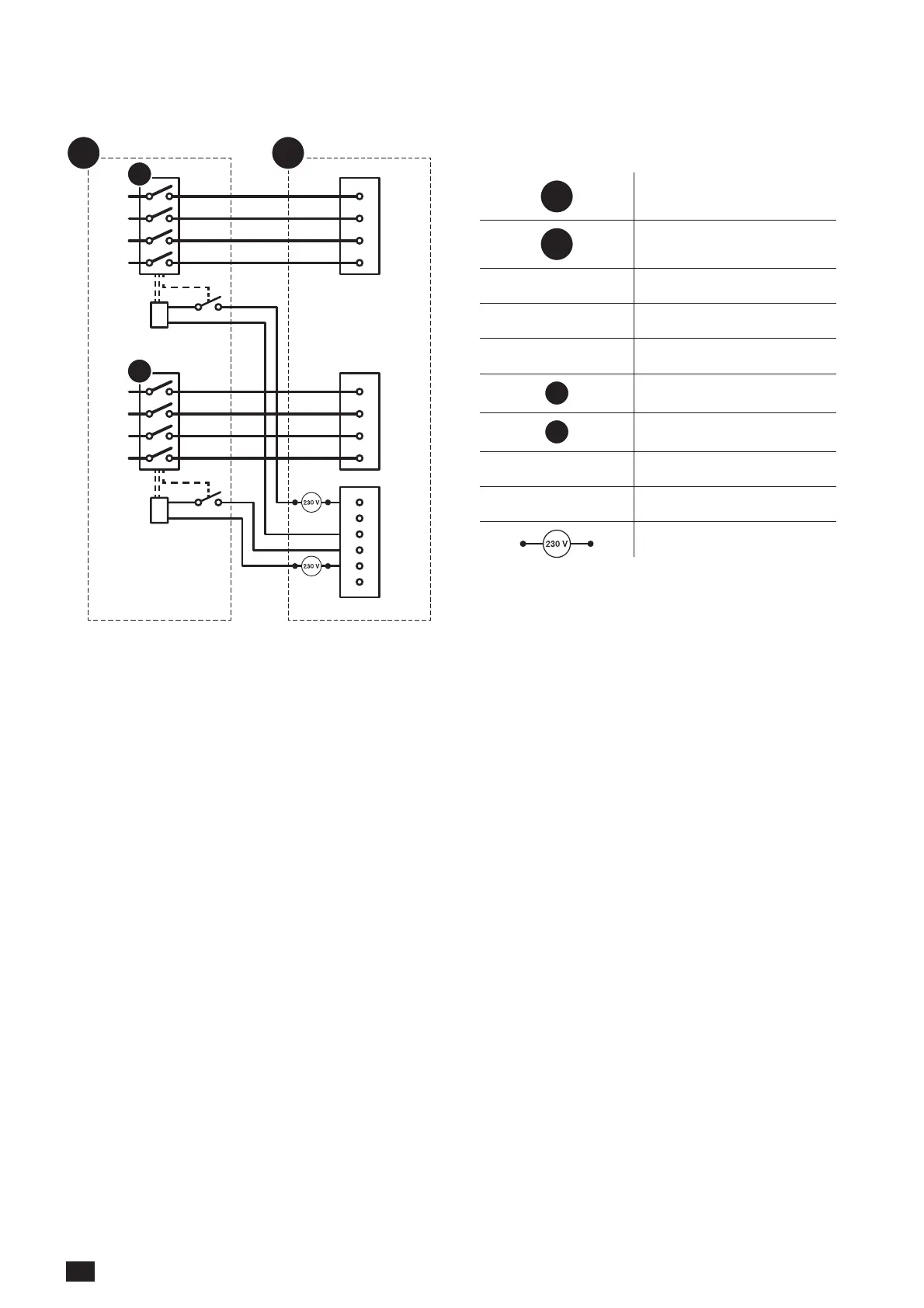

• Separated input mains
Activating UPS protection on the mimic panel: access the MAIN MENU > SERVICE > UPS SETTINGS > MAINS
CONFIGURATION > MAINS / AUXILIARY and set the parameter to SEPARATED.
COM2
L1
X10
X40
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
NC2
NO2
NO1
COM1
NC1
B
B
XB2XB3XB1
1
3
4
2
KEY
1
Distribution panel
2
UPS
B Trip coil
X10 Mains terminal board
X40 Aux Mains terminal board
3
Mains switch
4
Aux Mains switch
XB2
(COM2)
- XB3
(NO2)
Mains BKF connector
XB1
(COM1)
- XB3
(NO1)
Aux Mains BKF connector
UPS output voltage
