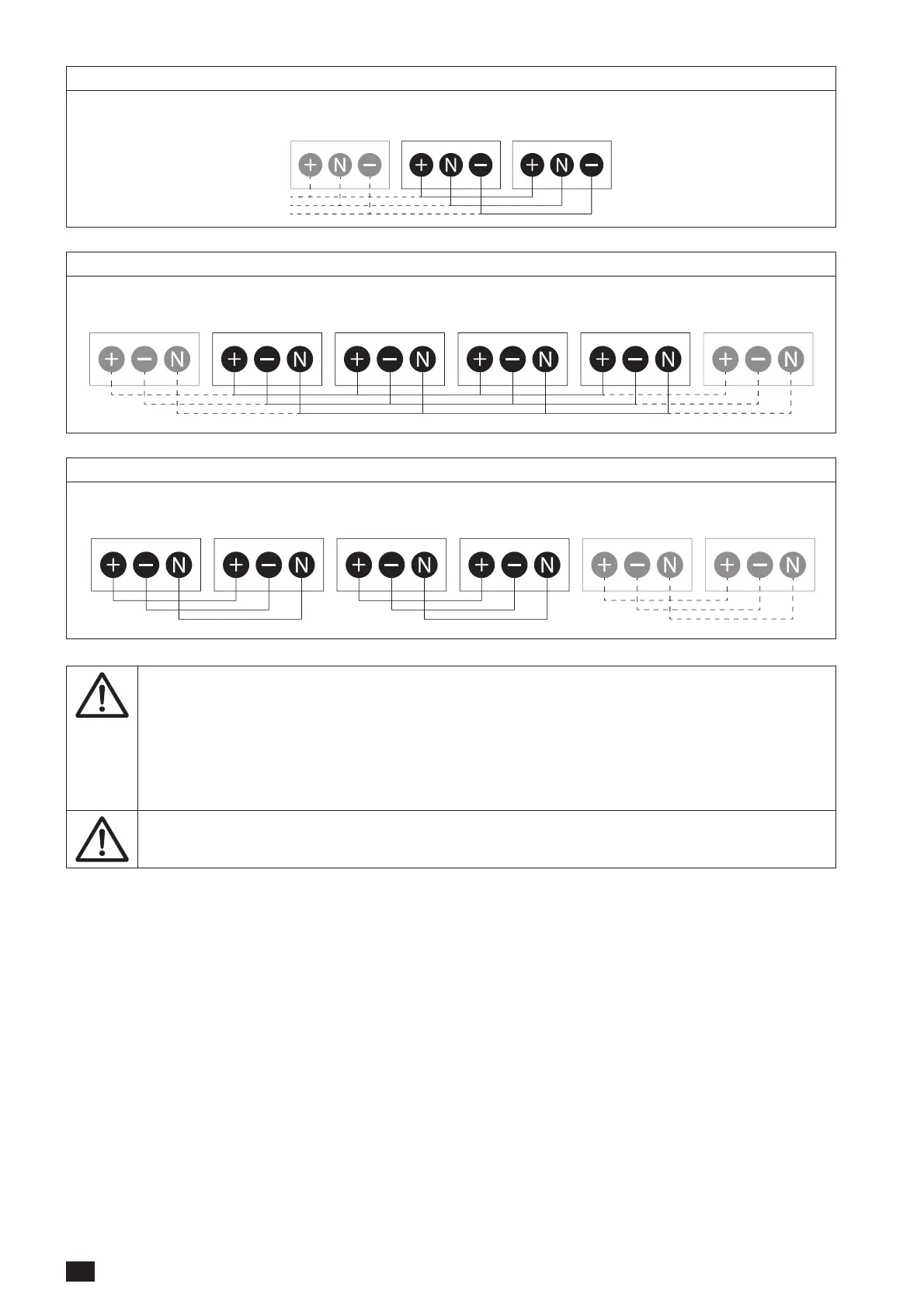

Connection example - single unit
UPS
BATTERY
CABINET
BATTERY
CABINET
Connection example - parallel configuration with shared battery
UPSUPSUPS
BATTERY
CABINET
BATTERY
CABINET
BATTERY
CABINET
Connection example - parallel configuration with distributed battery
UPSUPSUPS
BATTERY
CABINET
BATTERY
CABINET
BATTERY
CABINET
Note!
When battery cabinets not supplied by Socomec are used, the installer is responsible for:
- checking electrical compatibility;
- checking the presence of appropriate protective devices (fuses and circuit breakers that ensure the
cables are protected from the UPS to the battery cabinet).
Once the UPS is switched on – before closing the battery switches – check the battery param-
eters on the control panel menu. For further information, refer to 'Display operation' chapter.
Note!
Not all battery/capacity combinations are available.
