Software House iSTAR Edge Installation & Quick Start Guide

AUX Outputs
19
AUX Outputs
The AUX outputs can supply 350 mA for motion sensor or PIR type devices.
The voltage is 12 VDC.

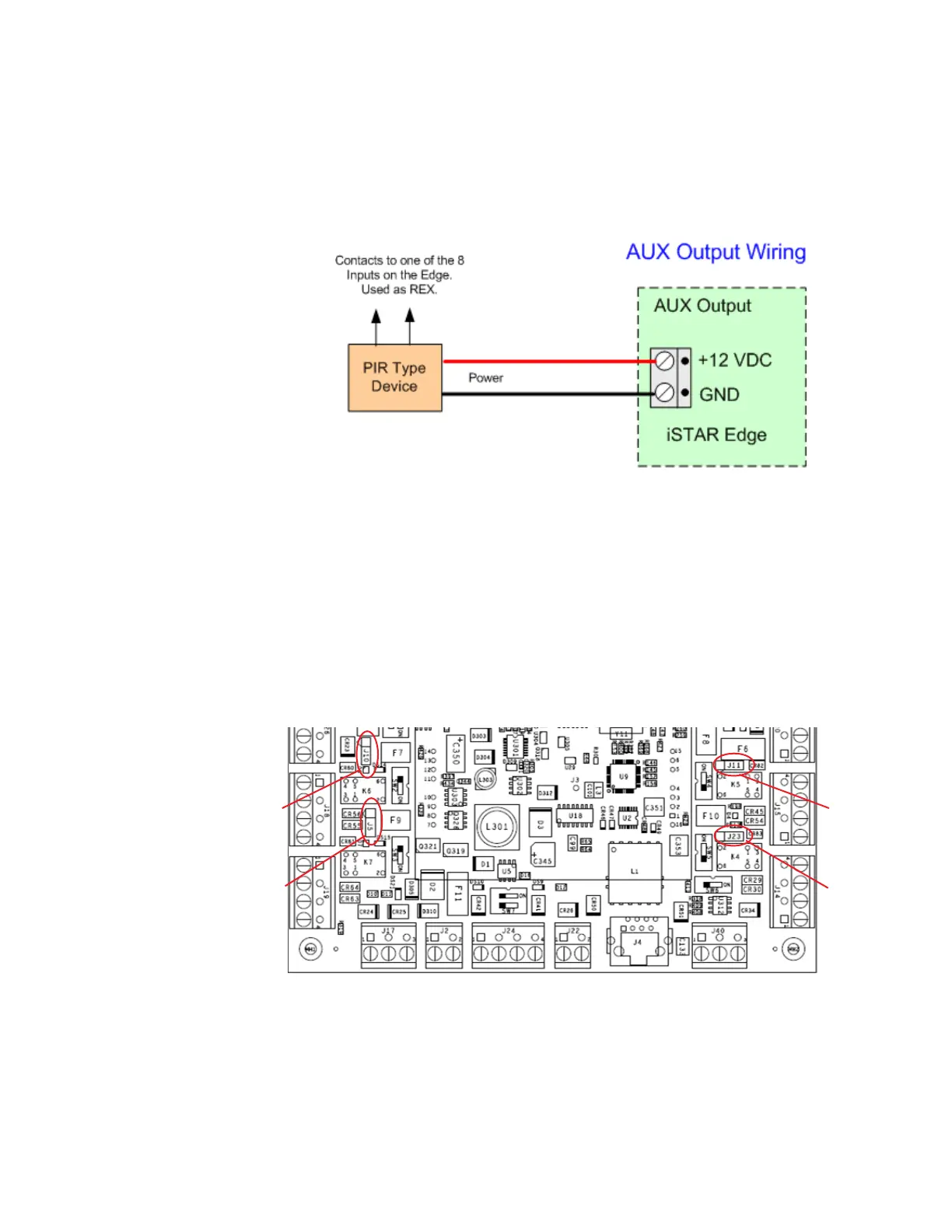

Figure 7: AUX Wiring
Wire the switch contacts of the PIR to one of the iSTAR Edge inputs, using the proper resistor
supervision.
Relay Outputs
The relays can be used as DRY or WET. Figure 8 shows a jumper for each relay to set the
mode.
Figure 8: Relay Outputs Dry/Wet Jumpers
Relay 1
Relay 2
Relay 3
Relay 4
