Relay Outputs
20
Dry Relay Wiring
Figure 9 shows DRY mode. Max current is 3A at 30 VAC/VDC. Use NO or NC as appropriate.
Notice that jumper is in the Dry position.

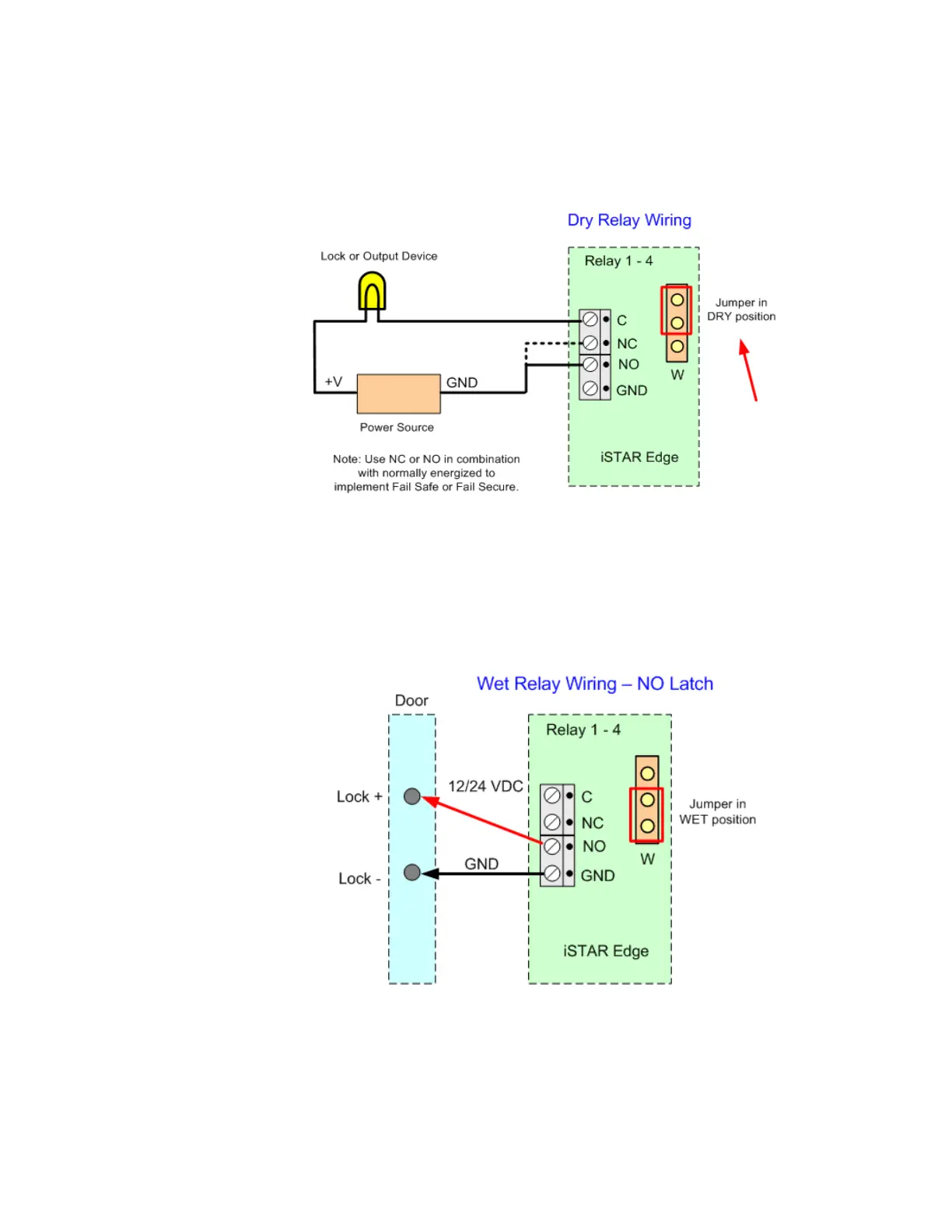

Figure 9: DRY Relay Wiring
Wet Relay Wiring
Figure 10 shows WET wiring for a normal NO Latch. The iSTAR Edge will supply either 12
VDC or 24 VDC depending on the input supply. Current is limited to 0.75 A. Notice that the
GND is used for common, not the C pin. Notice that the jumper is in the Wet position.
Figure 10: WET Latch
