Wiegand Readers

WET Wiring for a MagLock

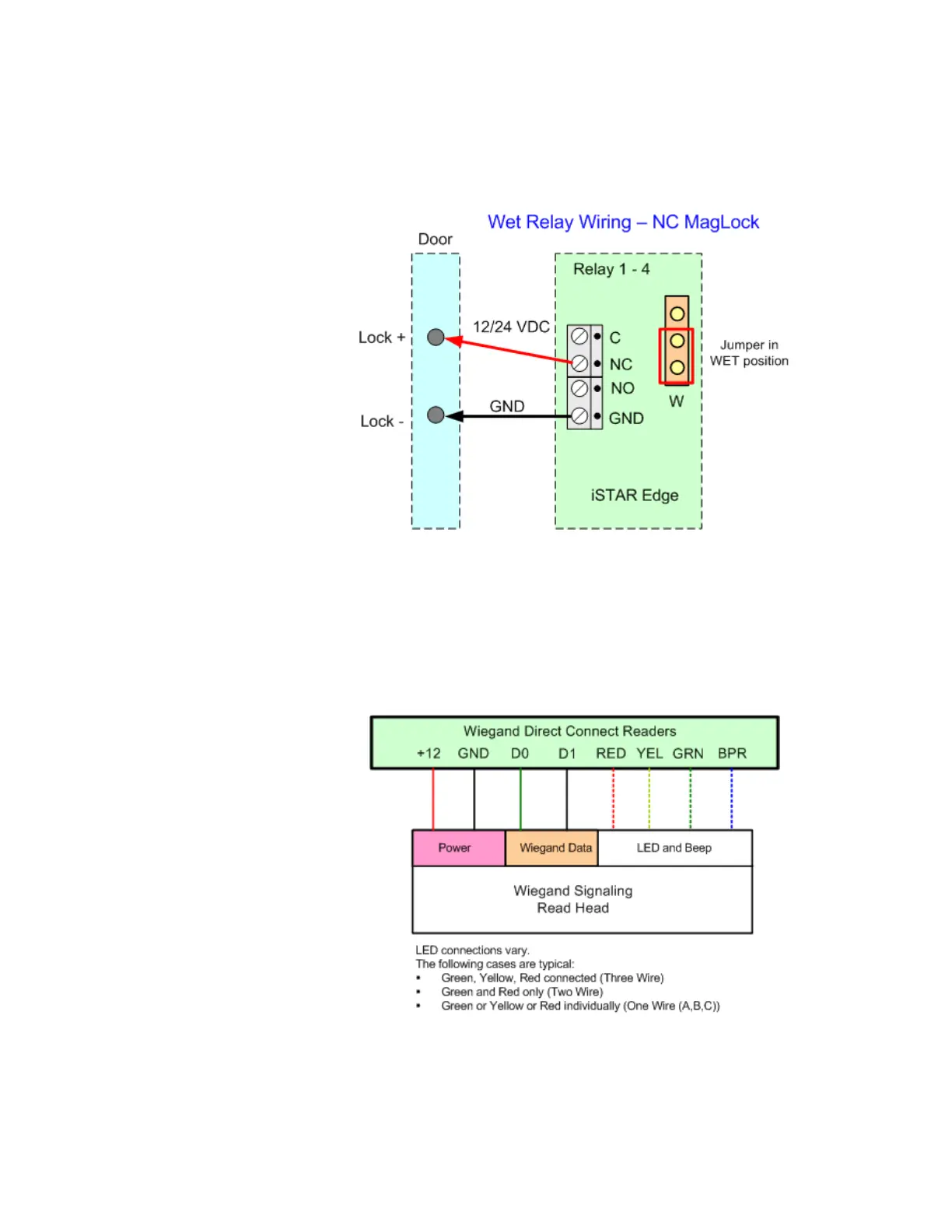

Mag Locks are normally energized so the GND and NC pins are used in this case. Notice that

jumper is in the Wet position, as shown in Figure 11.

Figure 11: WET Mag

Wiegand Readers

Direct Wiegand signaling read head connections are shown in Figure 12.

Figure 12: Wiegand Readers
