Software House iSTAR Edge Installation & Quick Start Guide

Pre-Installation Planning
8
iSTAR Edge Mounting Requirements

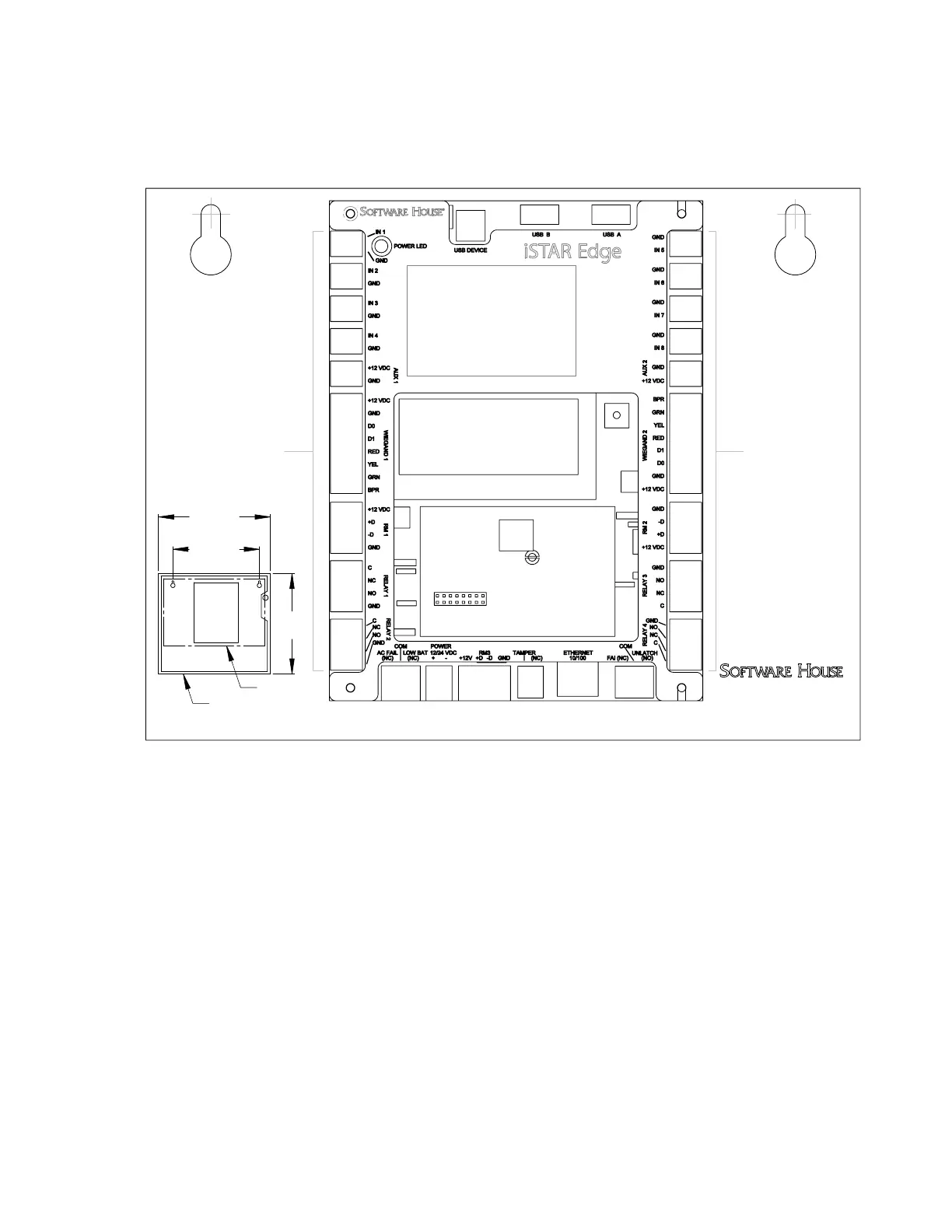

The mounting dimensions and board overlay are shown in Figure 3.
Figure 3: Mounting Requirements
Installation Tools
 Antistatic floor mat, tabletop mat, and wrist strap.
 Standard tool kit
 3/32" (2.4 mm) screwdriver (supplied with iSTAR Edge)
 Security screwdriver (contact Software House)
 Small needlenose pliers; small Phillips screwdriver; wire strippers
 5/16" (#10) nut driver (for securing shield wires to a ground stud)
(228.6)
9.00
(304.8)
12.00
(304.8)
12.00
DOOR 2
IN 1
IN 2
IN 3
IN 4
AUX 1
WIEGAND 1
RM 1
RELAY 1
RELAY 2
PWR RM 3
10/100
RELAY 4RELAY 3
RM 2
WIEGAND 2
AUX 2
IN 8
IN 7
IN 6
IN 5
DOOR 1
LCD DISPLAY
OPTIONAL
POE MODULE
iSTAR
Edge
TEMPLATE
ENCLOSURE
INSTALL SHEET, iSTAR Edge,
MOUNTING TEMPLATE
8200-0910-01, REV A3
SHEET 2 OF 2, SCALE 1:1
DIMENSIONS IN INCHES
( )DIMENSIONS IN MM
