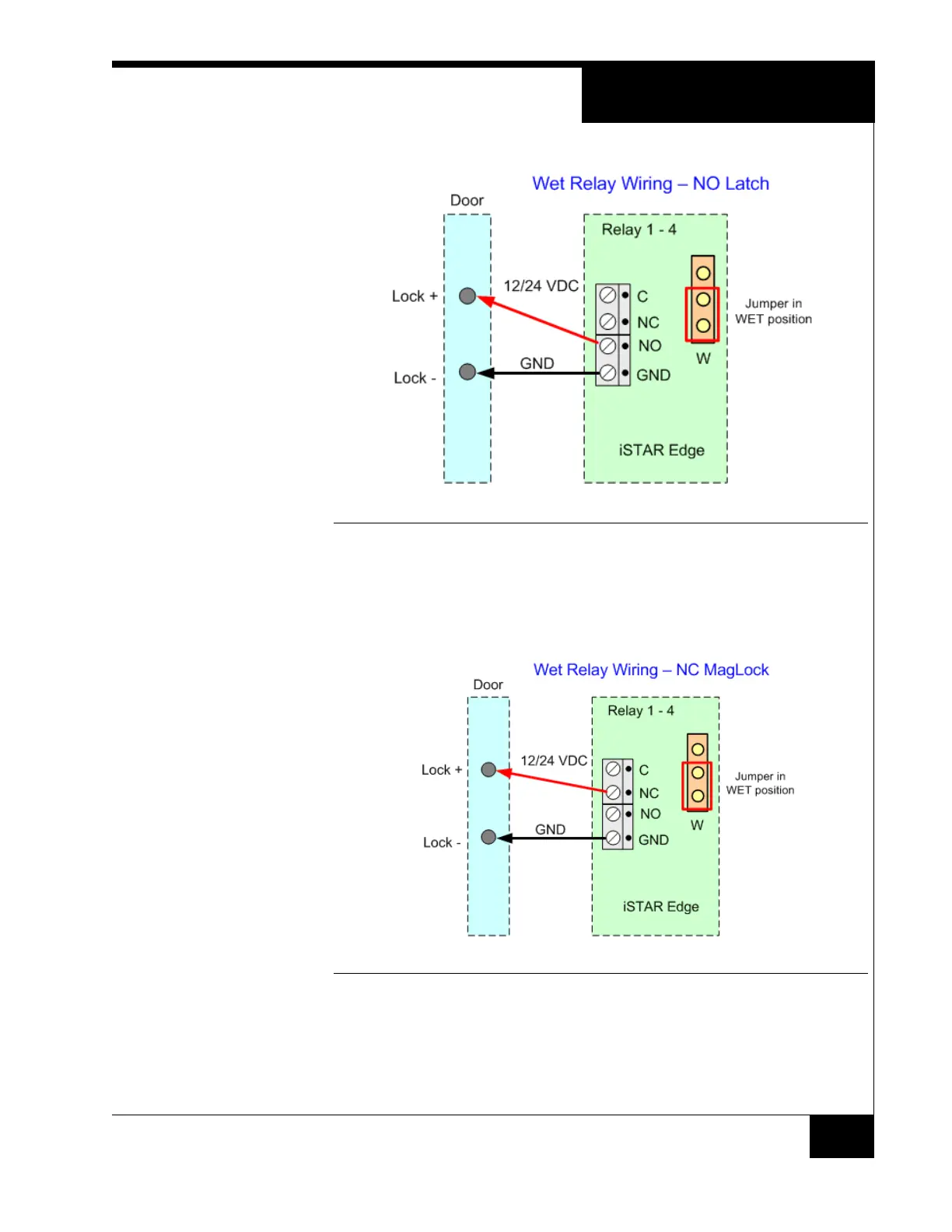

FIGURE 16. WET Latch Relay Wiring

WET Wiring for a MagLock

Mag Locks are normally energized so the GND and NC pins are used in this

case. Notice that jumper is in the Wet position.

FIGURE 17. WET Mag Lock Relay Wiring
