SPECIFICATIONS
As indicated on the door map shown below, the following are power
specifications for the iSTAR Edge:
Entire Unit
• Local Power 12 VDC, 3.8 Amp Max.
• Local Power 24 VDC, 3.1 Amp Max.
Reader and I/O Module Supply (Total of AUX, RM, and Wiegand Ports)
• 12 VDC, 1.5 Amp
– AUX Ports 12 VDC 350 mA each
– RM Ports 12 VDC, 1.5 Amp each (but the max. is also 1.5 Amp for all)
– Wiegand Ports, 12 VDC, 350 mA each
Relays
• 30 VAC/DC 1.0 Amp Max. (Dry) each
• 12 or 24 VDC 0.75 Amp Max. (Wet) each

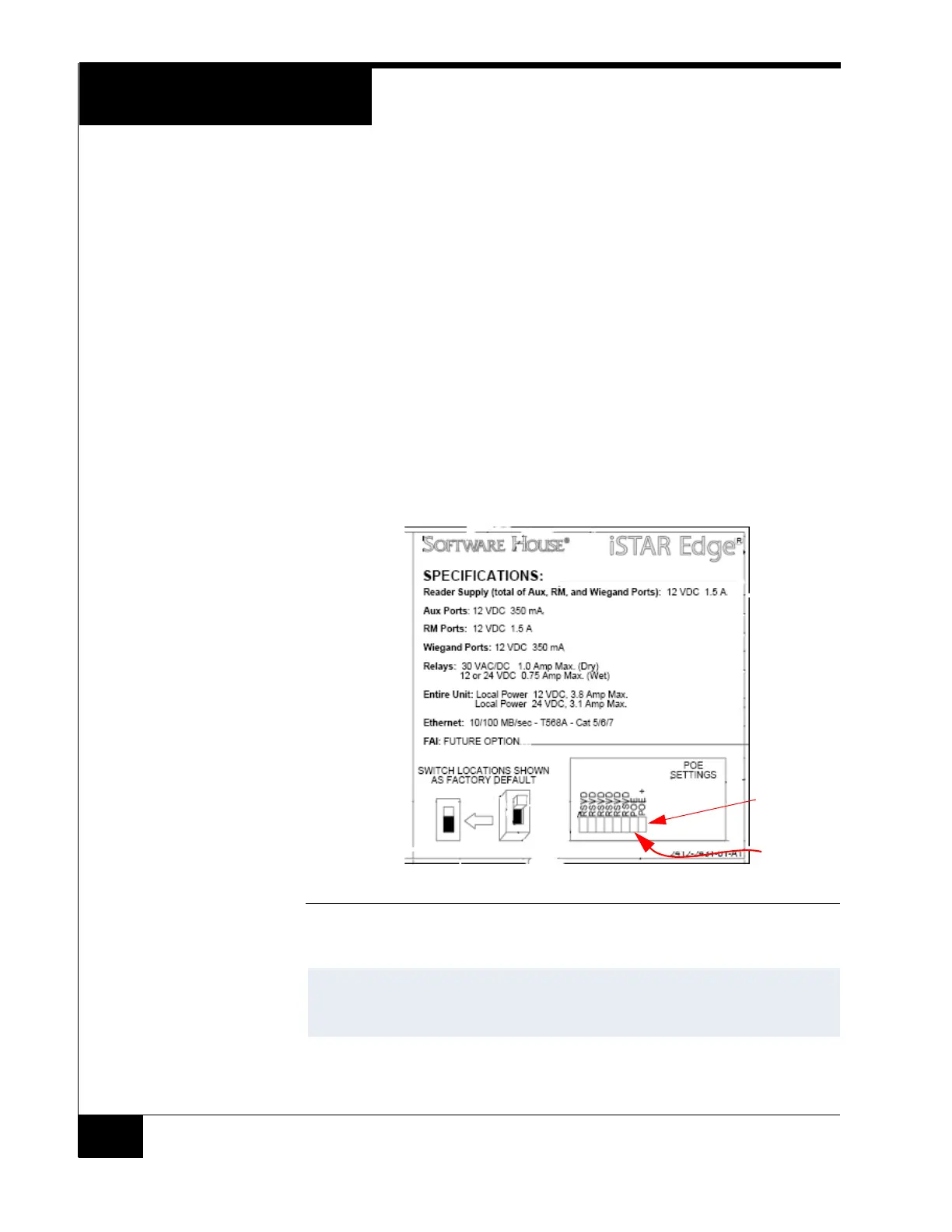

FIGURE 4. Specifications
NOTE
If using Power Over Ethernet (PoE), be sure that the jumper on the PoE
board is set correctly. As shown in Figure 4, there is a jumper position
for PoE and another for PoE Plus (+).
