Connections
27
The type of supervision is configured in the C•CURE 9000 host.

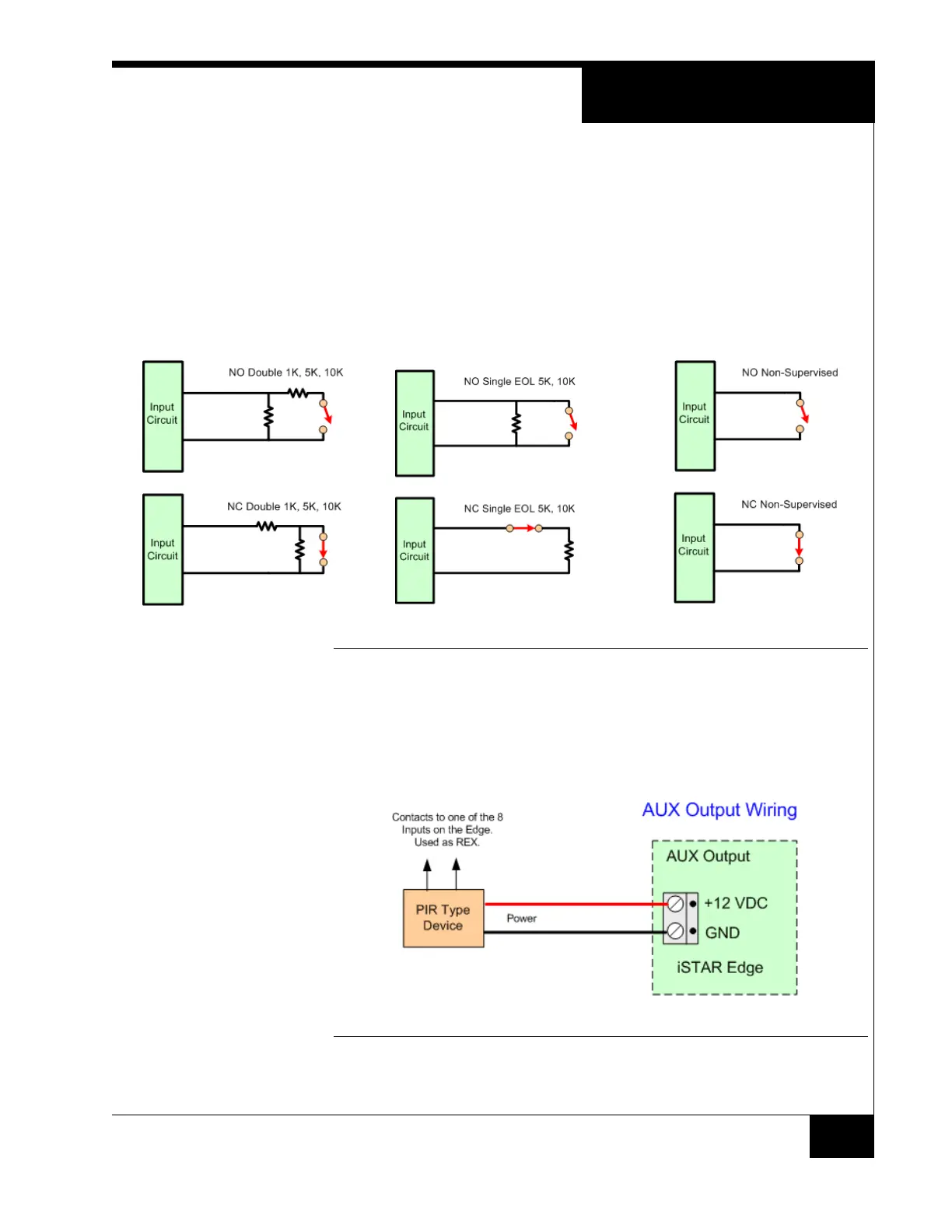

The inputs are the same as the iSTAR eX. Wiring is shown in Figure 12 .
Resistor Combinations
FIGURE 12. Resistor Wiring
AUX Outputs
The AUX outputs can supply 350 mA for motion sensor or PIR type devices.
The voltage is 12 VDC. Wire the switch contacts to one of the iSTAR Edge
inputs using the proper resistor supervision.
FIGURE 13. AUX Wiring
Double Resistor 1K, 5K, 10K
Single Resistor 5K, 10K Non-Supervised
Normally Open
Normally Closed
Normally Closed
Normally Closed
Normally Open
Normally Open
To Next Page
