Pre-Installation Planning
6
iSTAR Edge Mounting Requirements

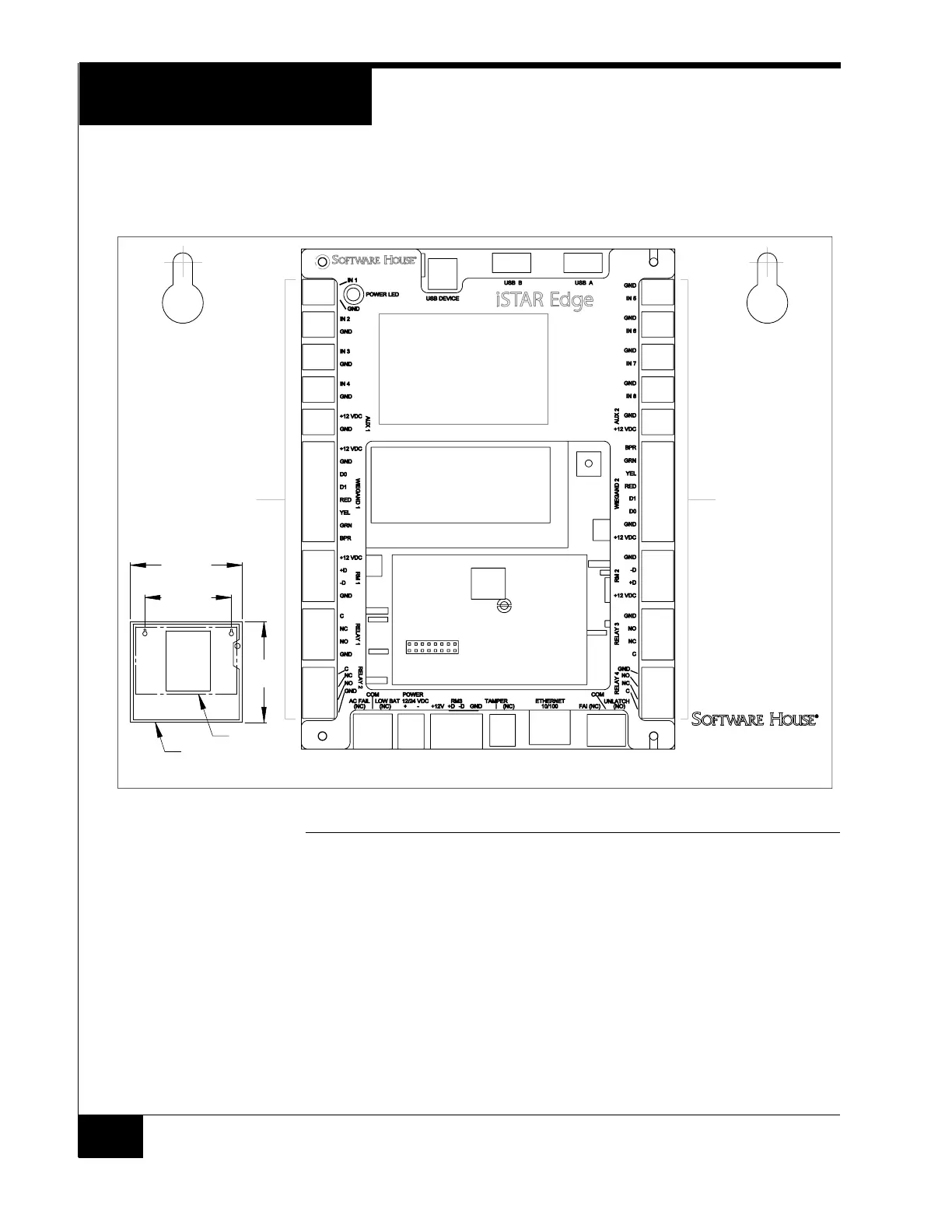

The mounting dimensions and board overlay are shown in Figure 3.
FIGURE 3. Mounting Requirements
Voltage Requirements
and Distance
To operate properly, each reader must conform to voltage requirements.
A standard RM Series Reader or RM-4 board requires at least 7.5 volts.
An RM-4E board requires at least 11 volts.
Most Wiegand readers require a minimum of 9 volts
The iSTAR Edge supplies 12 volts at its reader connectors; however, the amount
of voltage that reaches the reader is impacted by the following:
– Number of devices on the bus
– Current draw of each device
(228.6)
9.00
(304.8)
12.00
(304.8)
12.00
DOOR 2
IN 1
IN 2
IN 3
IN 4
AUX 1
WIEGAND 1
RM 1
RELAY 1
RELAY 2
PWR
RM 3
10/100
RELAY 4RELAY 3
RM 2
WIEGAND 2
AUX 2
IN 8
IN 7
IN 6
IN 5
DOOR 1
LCD DISPLAY
OPTIONAL
POE MODULE
iSTAR
Edge
TEMPLATE
ENCLOSURE
INSTALL SHEET, iSTAR Edge,
MOUNTING TEMPLATE
8200-0910-01, REV A3
SHEET 2 OF 2, SCALE 1:1
DIMENSIONS IN INCHES
( )DIMENSIONS IN MM
