Sol-Ark Battery Integration Guide | SK140-0026-005 39
Liniotech – LTN051280A-B-GBP2
Follow these instructions for setting up Liniotech batteries and Sol-Ark inverters.
Be sure to consult the comprehensive technical documentation provided by Liniotech for specifications
and settings to ensure optimal performance and safety.
Liniotech website
Communications Installation and Setup Instructions
Custom RJ45 cable
No custom cable is needed.
Battery IDs and connections

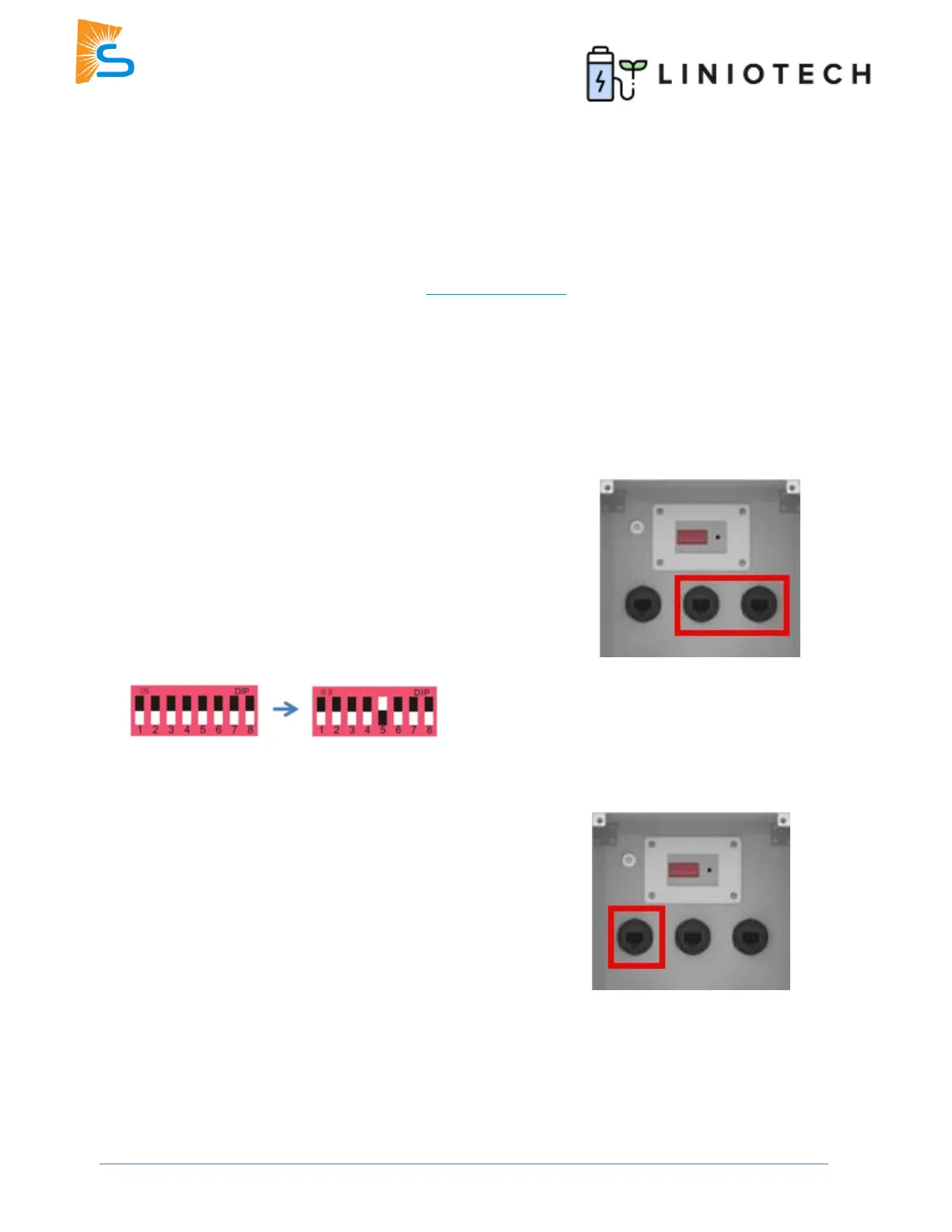

1. Connect all batteries using the included RJ45 cables.
Use ports RS485A and RS485B, as shown here, to bridge the
batteries together.
2. Set the DIP switch according to the battery manual. The
master battery must be set as shown below, with #5
switched to ON.
Inverter programming and connections
1. Use the RJ45 cable to connect the CAN IN of the battery
to the CAN communication port of the inverter, as shown
at right.
2. Program the inverter with this battery's appropriate
charge/discharge settings.
3. Enable BMS Lithium Batt and set its value to 00.
4. (Optional) Turn on BMS_Err_Stop if you want the system
to fault on battery communications loss.
