SOMFY GDK - Space Requirements

EN
3
EN - GDK installation and operating guide - SOMFY
A
B
A
D
C
Mark Designation Type of cable
A
Photoelectric cells 4 x 0.5 mm
2
(RX receptor cell)
2 x 0.5 mm
2
(TX emitter cell)
B Flashing light 2 x 0.5 mm
2
C Aerial -
D Key lock 2 x 0.5 mm²

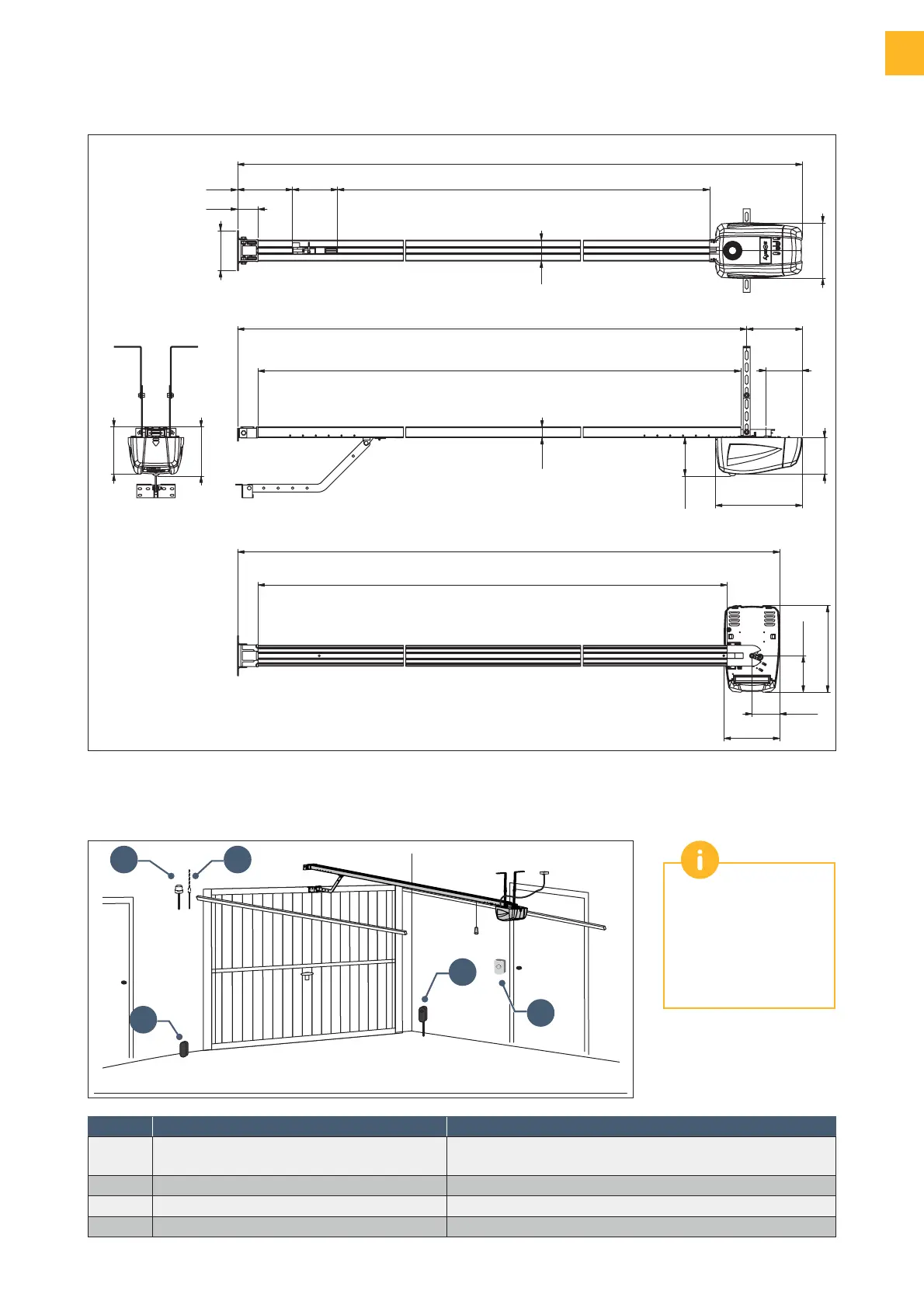

Overall length: 3154.6
Mounting: 2981,7
Rail: 2900
Rail: 2900
Overall length: 3127,6
Working stroke: 2555140Min. 171
63.7
125
65
173
173
113.5
114
269.7
119.6
33.5
152.7 147.1
113.5
269.7
86.5
173
if the garage door is the
sole means of access to the
garage, install an external
back release device (ref.
2400658 or ref. 9012962).
